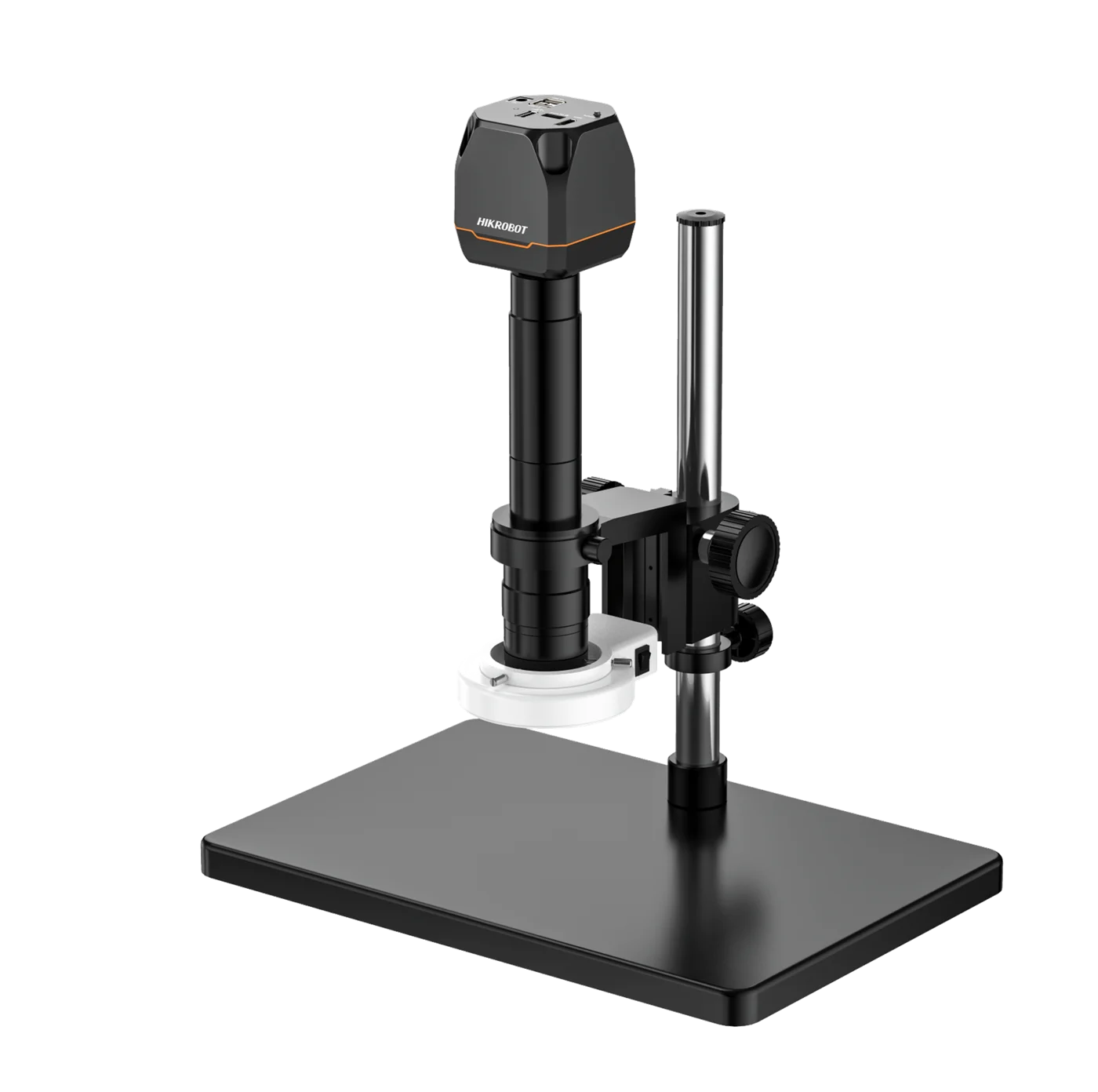

Hikrobot HIK-M400-11 Zoom Microscope System
Model HIK-M400-11
Hikrobot HIK-M400-11 Zoom Microscope System. Continuous zoom optics for sharp, low-distortion imaging 12 MP HD image quality at up to 30 fps
Features
- Continuous zoom optics for sharp, low-distortion imaging
- 12 MP HD image quality at up to 30 fps
- Built-in system, no PC needed: connect directly to a monitor via HDMI
- USB port supports mouse and USB flash drive peripherals for simple operation
- USB3.0 port connects to a PC for use with the client software
- Image capture and storage with adjustable image parameters
- Multiple measurement functions with one-click measurement reports
Specifications
| Model | HIK-M400-11 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 2 μm × 2 μm |
| Sensor size | 1/1.56” |
| Resolution | 4096 × 3024 |
| Max. frame rate | 30 fps |
| Gain | 0 dB ~ 18 dB |
| Exposure time | 300 μs ~ 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Vision tool | Image processing: white balance, Brightness, Sharpness, Contrast, Saturation, Digital gain, Gamma, Digital WDR, Noise reduction; Image assist: horizontal/vertical mirror, Crosshair, Grid lines, Ruler, Scale bar, Screen freeze, Snapshot, Video recording, Storage; Geometric measurement: calibration, Point measurement, Line measurement, Circle measurement, Angle measurement, Polygon measurement, Polyline measurement, Curve; measurement, Automatic line/circle measurement, Measurement report export |
| Eyepiece | 1x |
| Objective | 0.6x ~ 4.5x |
| Optical magnification | 0.6x ~ 4.5x |
| Digital magnification | 32x to 240x (on a 21.5-inch display) |
| Field of view (range) | 1.8 x 1.3 mm ~ 13.6 x 10 mm |
| Working distance | 100±5 mm |
| Color | White |
| Color temperature | 6500 ~ 7000 K |
| Brightness level | 0 ~ 100% |
| Bore dimension | Φ61 mm |
| Transmission interface | HDMI |
| Console interface | USB 2.0 × 2, USB 3.0 × 1, micro SD card interface × 1 |
| Power supply | 12 VDC, Requires a separate power supply |
| Power | Light: 3.5 W @ 12 VDC |
| Power consumption | Camera: 4.8 W @ 12 VDC |
| Focus mount | Lift height 62 mm |
| Dimension | Camera: 75 mm × 75 mm × 86.9 mm; Lens: Φ58 mm × 237.6 mm; Light: Φ97 mm × 123.5 mm; Base: 380 mm × 260 mm × 23 mm; Post: Φ25 mm × 341 mm |
| Weight | Approx. 3000 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 4.30 kg |
