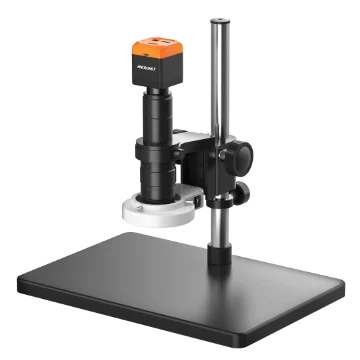

Hikrobot HIK-M200-10 Zoom Microscope System
Model HIK-M200-10
Hikrobot HIK-M200-10 Zoom Microscope System. Continuous zoom optics for sharp, low-distortion imaging 2 MP HD image quality at up to 60 fps
Features
- Continuous zoom optics for sharp, low-distortion imaging
- 2 MP HD image quality at up to 60 fps
- Built-in system, no PC needed: connect directly to a monitor via HDMI
- USB2.0 port supports mouse peripherals for simple operation
- Crosshair overlay as an image aid
- Extensive image adjustments: white balance, brightness, sharpness, 2D noise reduction, saturation, contrast, gamma, digital WDR and more
Specifications
| Model | HIK-M200-10 |
|---|---|
| Brand | Hikrobot |
| Sensor type | CMOS, rolling shutter |
| Pixel size | 3.75 μm × 3.75 μm |
| Sensor size | 1/2” |
| Resolution | 1920 × 1080 |
| Max. frame rate | 60 fps |
| Gain | 0 dB ~ 42 dB |
| Exposure time | 300 μs ~ 100 ms |
| Mono/color | Color |
| Exposure mode | Auto/manual |
| Reverse image | Supports horizontal and vertical reverse image output |
| Eyepiece | 0.5 x |
| Objective | 0.6 x ~ 4.5 x |
| Optical magnification | 0.3 x ~ 2.25 x |
| Digital magnification | 20x to 148x (on a 21.5-inch monitor) |
| Field of view (range) | 3.2 × 1.8 mm ~ 24 × 13.5 mm |
| Working distance | 100±5 mm |
| Color | White |
| Color temperature | 6000 ~ 7000 K |
| Brightness level | 0 ~ 100% |
| Bore dimension | Φ61 mm |
| Transmission interface | HDMI |
| Console interface | USB2.0 |
| Power supply | 12 VDC, Requires a separate power supply |
| Power consumption | Camera: 1.9 W @ 12 VDC |
| Power | Light: 3.5 W @ 12 VDC |
| Focus mount | Lift height 62 mm |
| Dimension | Camera: 50 mm × 50 mm × 55.4 mm; Lens: Φ58 mm × 166.3 mm; Light: Φ97 mm × 123.5 mm; Base: 380 mm × 260 mm × 23 mm; Post: Φ25 mm × 341 mm |
| Weight | Approx. 3000 g |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 95% RH (no condensation) |
| Shipping weight (estimated) | 4.30 kg |
