Lights

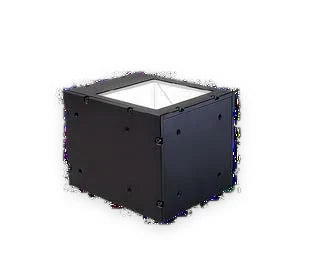

UV coaxial lights

Coaxial lights send light down the camera's own axis through a beam splitter, so flat mirror-like surfaces - wafers, polished metal, printed foil, labels under film - image evenly without glare or hot spots. UV light makes fluorescent inks, adhesives, coatings and lubricants glow, and shows fine surface detail.

All coaxial lights · Red coaxial lights · Blue coaxial lights · Green coaxial lights · White coaxial lights · Infrared coaxial lights

28 models Configure a systemAll lights
UV coaxial lights

1-24 of 28 models

Products

  • Coaxial light, 27-152 x 26-154 mm lit area

    LS-CXL-0002

    • Colour White, UV, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm

    $679.00Quote

    In stock · 980 available

  • 300 x 276 mm coaxial light source

    LS-CO250260

    • Colour Red, Green, Blue, White, Infrared, UV
    • Voltage 24 V DC (12 V on request)
    • Cable length 500 mm

    $1,549.00

    In stock · 21 available

  • 202 x 252 mm coaxial light source

    LS-CO200250

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 202 x 252 mm
    • Voltage 24 V DC (12 V on request)

    $1,149.00

    In stock · 21 available

  • 102 x 200 mm coaxial light source

    LS-CO100200

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 102 x 200 mm
    • Voltage 24 V DC (12 V on request)

    $789.00

    In stock · 23 available

  • 80 x 180 mm coaxial light source

    LS-CO80180

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 80 x 180 mm
    • Voltage 24 V DC (12 V on request)

    $669.00

    In stock · 19 available

  • 172 x 170 mm coaxial light source

    LS-CO170

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 172 x 170 mm
    • Voltage 24 V DC (12 V on request)

    $629.00

    In stock · 18 available

  • 152 x 150 mm coaxial light source

    LS-CO150

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 152 x 150 mm
    • Voltage 24 V DC (12 V on request)

    $519.00

    In stock · 23 available

  • 52 x 133 mm coaxial light source

    LS-CO50130

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 52 x 133 mm
    • Voltage 24 V DC (12 V on request)

    $429.00

    In stock · 25 available

  • 132 x 130 mm coaxial light source

    LS-CO130

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 132 x 130 mm
    • Voltage 24 V DC (12 V on request)

    $419.00

    In stock · 22 available

  • 125 x 119 mm coaxial light source

    LS-CO120

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 125 x 119 mm
    • Voltage 24 V DC (12 V on request)

    $389.00

    In stock · 21 available

  • 75 x 120 mm coaxial light source

    LS-CO75120

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 75 x 120 mm
    • Voltage 24 V DC (12 V on request)

    $369.00

    In stock · 22 available

  • 52 x 108 mm coaxial light source

    LS-CO50100

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 52 x 108 mm
    • Voltage 24 V DC (12 V on request)

    $319.00

    In stock · 21 available

  • 102 x 100 mm coaxial light source

    LS-CO100

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 102 x 100 mm
    • Voltage 24 V DC (12 V on request)

    $299.00

    In stock · 20 available

  • 95 x 88 mm coaxial light source

    LS-CO90

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 95 x 88 mm
    • Voltage 24 V DC (12 V on request)

    $269.00

    In stock · 23 available

  • 80 x 80 mm coaxial light source

    LS-CO80

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 80 x 80 mm
    • Voltage 24 V DC (12 V on request)

    $219.00

    In stock · 23 available

  • 74 x 69 mm coaxial light source

    LS-CO70

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 74 x 69 mm
    • Voltage 24 V DC (12 V on request)

    $199.00

    In stock · 27 available

  • 62 x 60 mm coaxial light source

    LS-CO60

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 62 x 60 mm
    • Voltage 24 V DC (12 V on request)

    $159.00

    In stock · 23 available

  • 61 x 33 mm coaxial light source

    LS-CO25-Z

    • Colour Red, Green, Blue, White, Infrared, UV
    • Voltage 24 V DC (12 V on request)
    • Cable length 500 mm

    $159.00

    In stock · 20 available

  • 52 x 53 mm coaxial light source

    LS-CO50

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 52 x 53 mm
    • Voltage 24 V DC (12 V on request)

    $139.00

    In stock · 22 available

  • 42 x 38 mm coaxial light source

    LS-C040

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 42 x 38 mm
    • Voltage 24 V DC (12 V on request)

    $109.00

    In stock · 19 available

  • 32 x 30 mm coaxial light source

    LS-CO30

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 32 x 30 mm
    • Voltage 24 V DC (12 V on request)

    $89.00

    In stock · 24 available

  • 27 x 25 mm coaxial light source

    LS-CO25

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 27 x 25 mm
    • Voltage 24 V DC (12 V on request)

    $79.00

    In stock · 18 available

  • 18 x 18 mm coaxial light source

    LS-CO18

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 18 x 18 mm
    • Voltage 24 V DC (12 V on request)

    $59.00

    In stock · 25 available

  • 13 x 13 mm coaxial light source

    LS-CO13-Z

    • Colour Red, Green, Blue, White, Infrared, UV
    • Emitting area 13 x 13 mm
    • Voltage 24 V DC (12 V on request)

    $59.00

    In stock · 17 available

Compare
LS-CXL-0002Coaxial light, 27-152 x 26-154 mm lit area White, UV, Infrared, Red, Green, Blue24 VDC365 nm, 375 nm, 385 nm, 395 nm, 405 nm, 730 nm, 850 nm, 940 nm26 to 154 (by configuration)--$679.00Quote 980 in stock
LS-CO250260300 x 276 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm300 mm$1,549.00 21 in stock
LS-CO200250202 x 252 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$1,149.00 21 in stock
LS-CO100200102 x 200 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$789.00 23 in stock
LS-CO8018080 x 180 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$669.00 19 in stock
LS-CO170172 x 170 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$629.00 18 in stock
LS-CO150152 x 150 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$519.00 23 in stock
LS-CO5013052 x 133 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$429.00 25 in stock
LS-CO130132 x 130 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$419.00 22 in stock
LS-CO120125 x 119 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$389.00 21 in stock
LS-CO7512075 x 120 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$369.00 22 in stock
LS-CO5010052 x 108 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$319.00 21 in stock
LS-CO100102 x 100 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$299.00 20 in stock
LS-CO9095 x 88 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$269.00 23 in stock
LS-CO8080 x 80 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$219.00 23 in stock
LS-CO7074 x 69 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$199.00 27 in stock
LS-CO6062 x 60 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$159.00 23 in stock
LS-CO25-Z61 x 33 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm61 mm$159.00 20 in stock
LS-CO5052 x 53 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$139.00 22 in stock
LS-C04042 x 38 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$109.00 19 in stock
LS-CO3032 x 30 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$89.00 24 in stock
LS-CO2527 x 25 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$79.00 18 in stock
LS-CO1818 x 18 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$59.00 25 in stock
LS-CO13-Z13 x 13 mm coaxial light source Red, Green, Blue, White, Infrared, UV24 V DC (12 V on request)--500 mm-$59.00 17 in stock
