13 x 13 mm coaxial light source (LS-CO13-Z)
  • 13 x 13 mm coaxial light source (LS-CO13-Z)

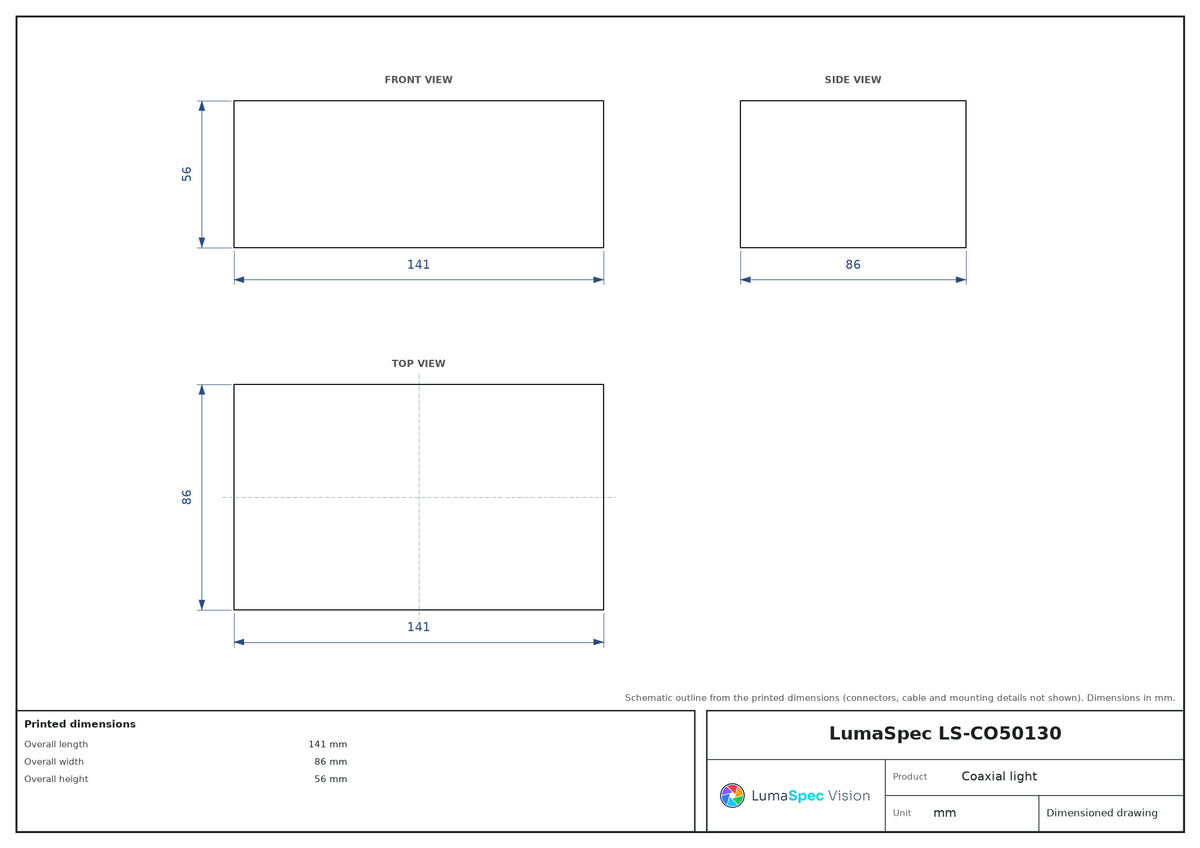

  • LS-CO50130 dimensions (mm)

Representative photo of this series

Coaxial lights

52 x 133 mm coaxial light source (LS-CO50130)

Model LS-CO50130

  • ColourRed, Green, Blue, White, Infrared, UV
  • Emitting area52 x 133 mm
  • Voltage24 V DC (12 V on request)
  • Cable length500 mm
$429.00

In stock - ships the same business day (4 available, order by 2 PM ET)

0.7 kg shipping weight

Color

Volume pricing, Net 30 or a formal quote?

Coaxial light giving clear imaging with high brightness and uniform coaxial illumination; highlights uneven surface textures and overcomes interference from surface reflection. Mainly detects scratches, dents, cracks and foreign objects on smooth, flat objects.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-CO50130
Window surface (mm)43 x 123

Interfaces and I/O

Cable length (mm)500

Light

Emitting surface (mm)52 x 133

Electrical

Voltage24 V DC (12 V on request)
Power red (W)9
Power white/blue/green (W)9

Mechanical

Overall length (mm)141
Overall width (mm)86
Overall height (mm)56
Shipping weight0.70 kg

Other models in the Coaxial light source (CO) series

See all 23 models
ModelSize / key dataPriceAvailabilityLink
LS-CO13-Z 13 x 13 mm $59.00 17 in stock View
LS-CO18 18 x 18 mm $59.00 25 in stock View
LS-CO25 27 x 25 mm $79.00 18 in stock View
LS-CO30 32 x 30 mm $89.00 24 in stock View
LS-C040 42 x 38 mm $109.00 19 in stock View
LS-CO50 52 x 53 mm $139.00 22 in stock View
LS-CO25-Z Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $159.00 20 in stock View
LS-CO60 62 x 60 mm $159.00 23 in stock View
LS-CO70 74 x 69 mm $199.00 27 in stock View
LS-CO80 80 x 80 mm $219.00 23 in stock View
LS-CO90 95 x 88 mm $269.00 23 in stock View
LS-CO100 102 x 100 mm $299.00 20 in stock View
LS-CO50100 52 x 108 mm $319.00 21 in stock View
LS-CO75120 75 x 120 mm $369.00 22 in stock View
LS-CO120 125 x 119 mm $389.00 21 in stock View
LS-CO130 132 x 130 mm $419.00 22 in stock View
LS-CO150 152 x 150 mm $519.00 23 in stock View
LS-CO170 172 x 170 mm $629.00 18 in stock View
LS-CO80180 80 x 180 mm $669.00 19 in stock View
LS-CO100200 102 x 200 mm $789.00 23 in stock View
LS-CO200250 202 x 252 mm $1,149.00 21 in stock View
LS-CO250260 Red, Green, Blue, White, Infrared, UV · 24 V DC (12 V on request) $1,549.00 21 in stock View
