Lights

Red coaxial lights

Coaxial light or dome light?

Coaxial lights send light down the camera's own axis through a beam splitter, so flat mirror-like surfaces - wafers, polished metal, printed foil, labels under film - image evenly without glare or hot spots. Red light gives strong contrast on mono cameras, which are most sensitive in the red, and is the usual choice for general inspection, code reading and dark features on light parts.

All coaxial lights · Blue coaxial lights · Green coaxial lights · White coaxial lights · Infrared coaxial lights · UV coaxial lights

218 models Configure a systemAll lights
Red coaxial lights

73-96 of 218 models

Products

Compare
LS-CXL-0038High precision coaxial light, 94 x 70 x 70 mm Red, Blue, Green, WhiteL 94 × W 70 × H 70 mm24 V8.7 W/10.8 W--$439.00 Ships in 2-3 weeks
LS-CXL-0037High precision coaxial light, 84 x 60 x 60 mm Red, Blue, Green, WhiteL 84 × W 60 × H 60 mm24 V6.5 W/7.2 W--$389.00 Ships in 2-3 weeks
LS-CXL-0036High precision coaxial light, 74 x 50 x 50 mm Red, Blue, Green, WhiteL 74 × W 50 × H 50 mm24 V4.4 W/4.4 W--$329.00 Ships in 2-3 weeks
LS-CXL-0035High precision coaxial light, 64 x 40 x 40 mm Red, Blue, Green, WhiteL 64 × W 40 × H 40 mm24 V2.9 W/4.4 W--$279.00 Ships in 2-3 weeks
LS-CXL-0034High precision coaxial light, 55.5 x 40 x 34 mm Red, Blue, Green, WhiteL 55.5 × W 40 × H 34 mm24 V2.9 W/4.4 W28 x 28 mm-$249.00 Ships in 2-3 weeks
LS-CXL-0033High precision coaxial light, 54 x 30 x 30 mm Red, Blue, Green, WhiteL 54 × W 30 × H 30 mm24 V1.5 W/1.5 W--$239.00 Ships in 2-3 weeks
LS-CXL-0032High precision coaxial light, 41 x 30 x 24 mm Red, Blue, Green, WhiteL 41 × W 30 × H 24 mm24 V1.5 W/1.5 W18 x 18 mm-$189.00 Ships in 2-3 weeks
LS-CXL-0031High precision coaxial light, 36 x 25 x 19 mm Red, Blue, Green, WhiteL 36 × W 25 × H 19 mm24 V0.8 W/2.2 W13 x 13 mm-$169.00 Ships in 2-3 weeks
LS-CXL-0022Narrow angle coaxial light, 134 x 112 x 110 mm Red, Blue, Green, WhiteL 134 × W 112 × H 110 mm24 V24.5 W/32.4 W--$689.00 Ships in 2-3 weeks
LS-CXL-0020Narrow angle coaxial light, 114 x 92 x 90 mm Red, Blue, Green, WhiteL 114 × W 92 × H 90 mm24 V15.2 W/21.6 W--$559.00 Ships in 2-3 weeks
LS-CXL-0018Narrow angle coaxial light, 94 x 70 x 70 mm Red, Blue, Green, WhiteL 94 × W 70 × H 70 mm24 V8.7 W/10.8 W--$439.00 Ships in 2-3 weeks
LS-CXL-0016Narrow angle coaxial light, 84 x 60 x 60 mm Red, Blue, Green, WhiteL 84 × W 60 × H 60 mm24 V6.5 W/7.2 W--$389.00 Ships in 2-3 weeks
LS-CXL-0014Narrow angle coaxial light, 74 x 50 x 50 mm Red, Blue, Green, WhiteL 74 × W 50 × H 50 mm24 V4.4 W/4.4 W--$329.00 Ships in 2-3 weeks
LS-CXL-0012Narrow angle coaxial light, 64 x 40 x 40 mm Red, Blue, Green, WhiteL 64 × W 40 × H 40 mm24 V2.9 W/4.4 W--$279.00 Ships in 2-3 weeks

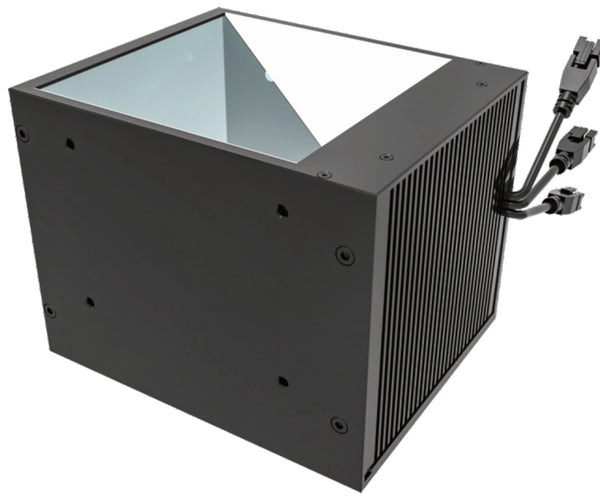

LS-CXL-025355 x 40 mm Multi-colour coaxial light Red, Green, Blue-24 V DC (inferred)7.1 W-Extension cable$239.00 Ships in 2-3 weeks
LS-CXL-025238 x 42.4 mm Multi-colour coaxial light Red, Green, Blue-24 V DC (inferred)5.1 W-Extension cable$189.00 Ships in 2-3 weeks
LS-CXL-025130 x 32 mm Multi-colour coaxial light Red, Green, Blue-24 V DC (inferred)2.1 W-Extension cable$149.00 Ships in 2-3 weeks
LS-CXL-021380 x 80 mm Corner coaxial light Red, Green, Blue, White-24 V DC (inferred)-80 x 80 mm-$369.00 Ships in 2-3 weeks
LS-CXL-021267 x 67 mm Corner coaxial light Red, Green, Blue, White-24 V DC (inferred)-67 x 67 mm-$299.00 Ships in 2-3 weeks
LS-CXL-021455 x 40 mm Corner coaxial light Red, Green, Blue, White-24 V DC (inferred)-55 x 40 mm-$239.00 Ships in 2-3 weeks
LS-CXL-021140 x 40 mm Corner coaxial light, 525 nm Red, Green, Blue, White-24 V DC (inferred)-40 x 40 mm-$179.00 Ships in 2-3 weeks
LS-CXL-021026 x 26 mm Corner coaxial light Red, Green, Blue, White-24 V DC (inferred)-26 x 26 mm-$139.00 Ships in 2-3 weeks
LS-CXL-0209100 x 100 mm High-brightness coaxial light Red, Green, Blue, White-48 V DC (inferred)135 W100 x 100 mm-$479.00 Ships in 2-3 weeks
LS-CXL-020880 x 80 mm High-brightness coaxial light Red, Green, Blue, White-48 V DC (inferred)81 W80 x 80 mm-$369.00 Ships in 2-3 weeks
