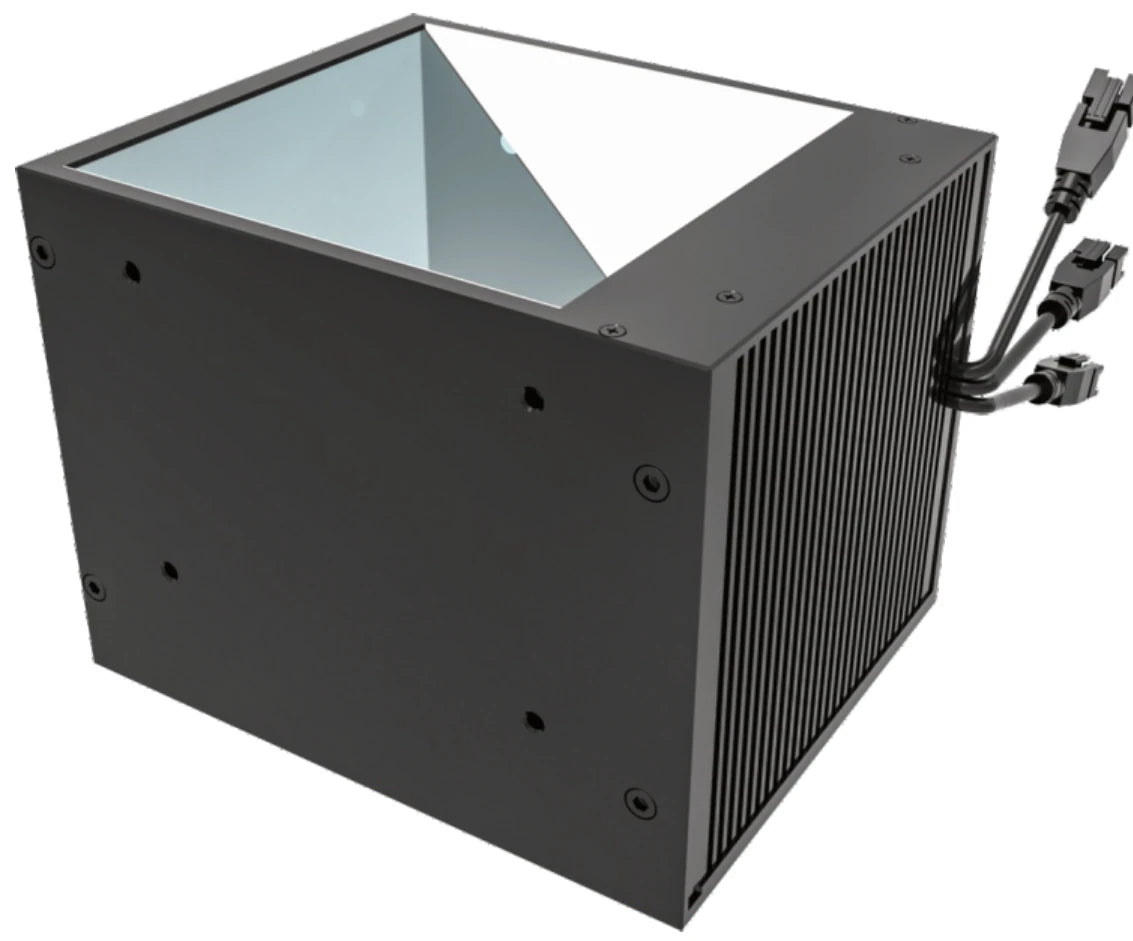

Representative photo of this series
Coaxial lights
55 x 40 mm Multi-colour coaxial light, LS-CXL-S38 series (LS-CXL-0253)
Model LS-CXL-0253
- ColourRed, Green, Blue
- Power7.1 W
- Voltage24 V
- Optional accessoriesExtension cable
$239.00
Ships in 2-3 weeks
0.35 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
High-density, high-brightness multi-colour (RGB) light; colour combinations highlight 3D information of objects and each lighting group can be controlled independently, so monochrome can also be chosen.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-CXL-0253 |
|---|---|
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
Interfaces and I/O
| Cable | 3 cables L=500 mm |
|---|
Light
| Luminous dimension (mm) | 55 x 40 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
Environment and compliance
| Storage temperature | -20-60 °C |
|---|---|
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
Electrical
| Controller | LS-CTL-S69 / LS-CTL-S28 / LS-CTL-S125 series (match the power of the light source) |
|---|---|
| Power (W) | 7.1 |
| Recommended controller | LS-CTL-S69, LS-CTL-S28, LS-CTL-S125 |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-CTL-S69, LS-CTL-S28 |
Mechanical

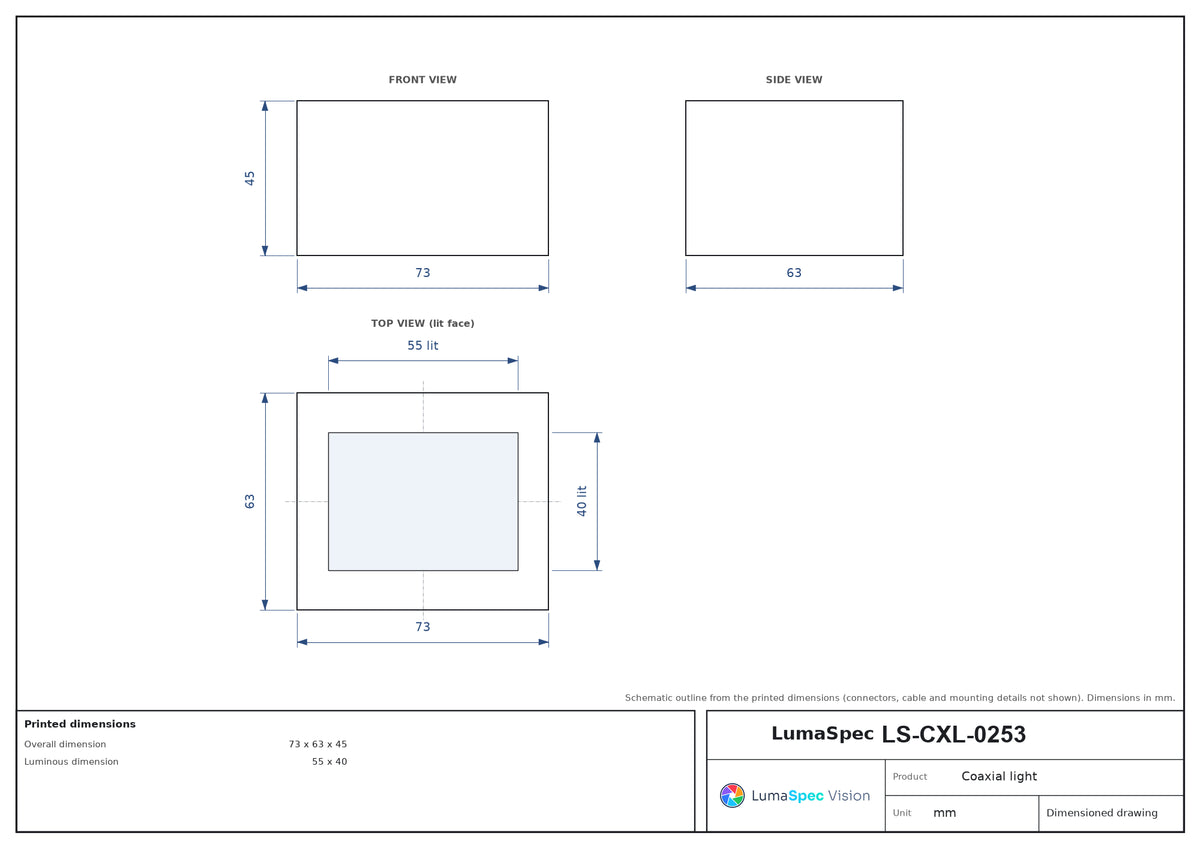

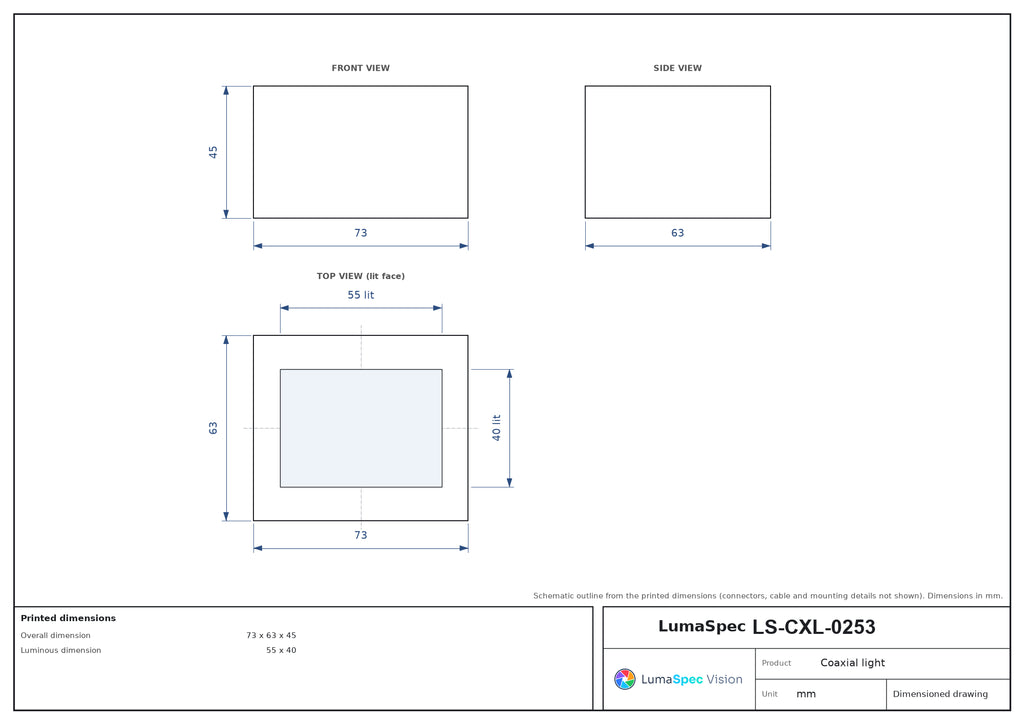

| Overall dimension (mm) | 73 x 63 x 45 |
|---|---|
| Shipping weight | 0.35 kg |
