Object-side telecentric lenses

Select object-space telecentric optics

Browse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.

All Telecentric lenses

1540 models Configure a systemAll lenses
Object-side telecentric lenses

1489-1512 of 1540 models

Products

Compare
LS-TCL-13740.55x, WD 220 mm, 1.75", M42-mount telecentric lens 0.55xM421.75"220 mm8Ø 51.2 mm$1,979.00 Ships in 2-3 weeks

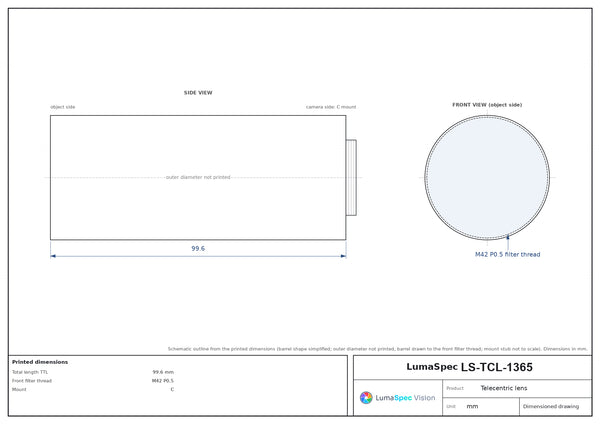

LS-TCL-13650.191x, WD 135 mm, 1/1.7", C-mount fixed-magnification lens 0.191xC-mount1/1.7"135 mm5.2Ø 49.2 mm$1,939.00 Ships in 2-3 weeks

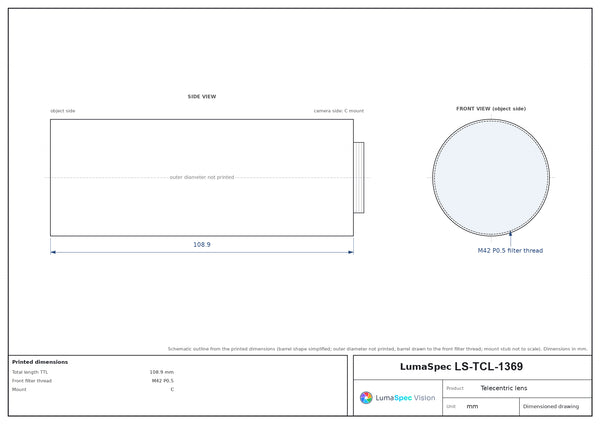

LS-TCL-13690.17x, WD 185 mm, 1/2.3", C-mount fixed-magnification lens 0.17xC-mount1/2.3"185 mm6.2Ø 47 mm$2,139.00 Ships in 2-3 weeks
LS-TCL-13680.171x, WD 150 mm, 1/2.3", C-mount fixed-magnification lens 0.171xC-mount1/2.3"150 mm6.2Ø 46.9 mm$1,879.00 Ships in 2-3 weeks

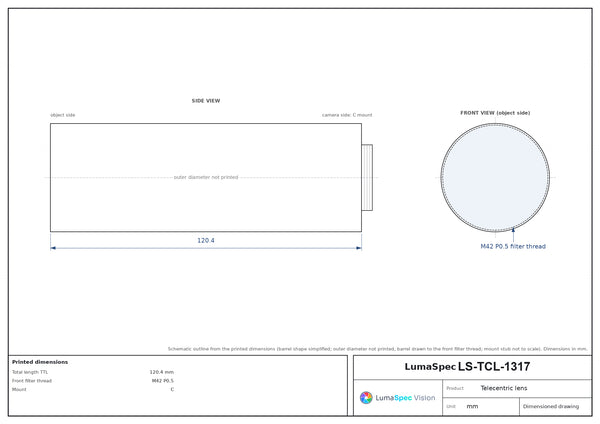

LS-TCL-13170.36x, WD 90 mm, 1", C-mount fixed-magnification lens 0.36xC-mount1"90 mm6.5Ø 44.45 mm$1,829.00 Ships in 2-3 weeks
LS-TCL-13670.177x, WD 110 mm, 1/2.3", C-mount telecentric lens 0.177xC-mount1/2.3"110 mm4.6Ø 45.3 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-13860.37x, WD 90 mm, 2/3", C-mount telecentric lens 0.37xC-mount2/3"90 mm10.3Ø 29.7 mm$1,489.00 Ships in 2-3 weeks
LS-TCL-13462x, WD 63 mm, 1.2", C-mount telecentric lens with coaxial light 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13452x, WD 63 mm, 1.2", C-mount telecentric lens with coaxial light 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13442x, WD 63 mm, 1.2", C-mount telecentric lens 2xC-mount1.2"63 mm6.6Ø 10 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13432.74x, WD 64 mm, 1.2", C-mount telecentric lens with coaxial light 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13422.74x, WD 64 mm, 1.2", C-mount telecentric lens with coaxial light 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13412.74x, WD 64 mm, 1.2", C-mount telecentric lens 2.74xC-mount1.2"64 mm8.5Ø 7.3 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13403.025x, WD 61 mm, 1.2", C-mount telecentric lens with coaxial light 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13393.025x, WD 61 mm, 1.2", C-mount telecentric lens with coaxial light 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13383.025x, WD 61 mm, 1.2", C-mount telecentric lens 3.025xC-mount1.2"61 mm9.4Ø 6.6 mm$1,239.00 Ships in 2-3 weeks
LS-TCL-13374x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13364x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13354x, WD 45 mm, 1.2", C-mount telecentric lens with coaxial light 4xC-mount1.2"45 mm11.7 to closedØ 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-13344x, WD 45 mm, 1.2", C-mount telecentric lens, F11.7 4xC-mount1.2"45 mm11.7Ø 5 mm$1,259.00 Ships in 2-3 weeks
LS-TCL-08520.178x, WD 158 mm, 2/3", C-mount telecentric lens, FOV dia. 64 mm 0.178xC-mount2/3"158±3 mm-dia. 64 mm$2,269.00 Ships in 2-3 weeks
LS-TCL-08510.238x, WD 128 mm, 2/3", C-mount telecentric lens, FOV dia. 48 mm 0.238xC-mount2/3"128±3 mm-dia. 48 mm$1,899.00 Ships in 2-3 weeks
LS-TCL-08480.806x, WD 110 mm, 1.75", F-mount telecentric lens 0.806xF-mount1.75"110±2 mm-dia. 36 mm$1,639.00 Ships in 2-3 weeks
LS-TCL-08410.35x, WD 78 mm, 1.1", C-mount telecentric lens 0.35x~0.7xC-mount1.1"78±2 mm--$1,959.00 Ships in 2-3 weeks

Select object-space telecentric optics

Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.

  • Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
  • Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
  • Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.

Configure a system · Browse all Telecentric lenses
