Lenses

Object-side telecentric lenses

Select object-space telecentric optics

Browse lenses cataloged as object-side telecentric. Compare their measurement field, sensor format, magnification and working distance alongside the separate bi-telecentric range.

All Telecentric lenses

1540 models Configure a systemAll lenses
Object-side telecentric lenses

1057-1080 of 1540 models

Products

Compare

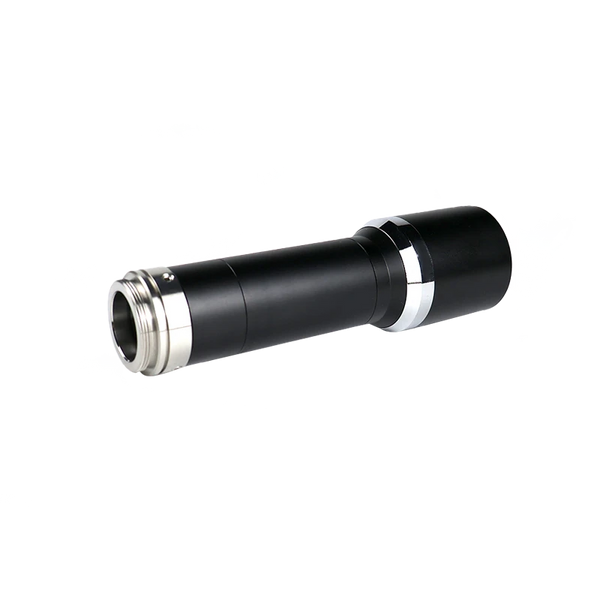

LS-TCL-0816Standard telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount 0.5xC-mount2/3"110 mmF9.312 μm$1,309.00 Ships in 2-3 weeks
LS-TCL-0815Standard telecentric lens, 0.5x, WD 110 mm, 2/3", C-mount 0.5xC-mount2/3"110 mmF9.312 μm$1,309.00 Ships in 2-3 weeks
LS-TCL-0826Standard telecentric lens, 0.5x, WD 65 mm, 2/3", C-mount 0.5xC-mount2/3"65 mmF9.512.8 μm$1,309.00 Ships in 2-3 weeks
LS-TCL-0825Standard telecentric lens, 0.5x, WD 65 mm, 2/3", C-mount 0.5xC-mount2/3"65 mmF9.512.8 μm$1,309.00 Ships in 2-3 weeks
LS-TCL-0830Standard telecentric lens, 0.8x, WD 65 mm, 2/3", C-mount 0.8xC-mount2/3"65 mmF9.58.4 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-0829Standard telecentric lens, 0.8x, WD 65 mm, 2/3", C-mount 0.8xC-mount2/3"65 mmF9.58.4 μm$1,199.00 Ships in 2-3 weeks
LS-TCL-0828Standard telecentric lens, 0.75x, WD 65 mm, 2/3", C-mount 0.75xC-mount2/3"65 mmF9.57 μm$1,139.00 Ships in 2-3 weeks
LS-TCL-0827Standard telecentric lens, 0.75x, WD 65 mm, 2/3", C-mount 0.75xC-mount2/3"65 mmF9.57 μm$1,139.00 Ships in 2-3 weeks
LS-TCL-0818Standard telecentric lens, 1x, WD 110 mm, 2/3", C-mount 1xC-mount2/3"110 mmF117.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0817Standard telecentric lens, 1x, WD 110 mm, 2/3", C-mount 1xC-mount2/3"110 mmF117.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0832Standard telecentric lens, 1x, WD 65 mm, 2/3", C-mount 1xC-mount2/3"65 mmF117.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0831Standard telecentric lens, 1x, WD 65 mm, 2/3", C-mount 1xC-mount2/3"65 mmF117.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0834Standard telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount 1.5xC-mount2/3"65 mmF125.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0833Standard telecentric lens, 1.5x, WD 65 mm, 2/3", C-mount 1.5xC-mount2/3"65 mmF125.4 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0820Standard telecentric lens, 2x, WD 110 mm, 2/3", C-mount 2xC-mount2/3"110 mmF13.64.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0819Standard telecentric lens, 2x, WD 110 mm, 2/3", C-mount 2xC-mount2/3"110 mmF13.64.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0836Standard telecentric lens, 2x, WD 65 mm, 2/3", C-mount 2xC-mount2/3"65 mmF13.54.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0835Standard telecentric lens, 2x, WD 65 mm, 2/3", C-mount 2xC-mount2/3"65 mmF13.54.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0838Standard telecentric lens, 3x, WD 65 mm, 2/3", C-mount 3xC-mount2/3"65 mmF163.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0837Standard telecentric lens, 3x, WD 65 mm, 2/3", C-mount 3xC-mount2/3"65 mmF163.5 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0824Standard telecentric lens, 6x, WD 110 mm, 2/3", C-mount 6xC-mount2/3"110 mmF354 μm$849.00 Ships in 2-3 weeks
LS-TCL-0823Standard telecentric lens, 6x, WD 110 mm, 2/3", C-mount 6xC-mount2/3"110 mmF354 μm$849.00 Ships in 2-3 weeks
LS-TCL-0822Standard telecentric lens, 4x, WD 110 mm, 2/3", C-mount 4xC-mount2/3"110 mmF223.7 μm$1,239.00 Ships in 2-3 weeks
LS-TCL-0821Standard telecentric lens, 4x, WD 110 mm, 2/3", C-mount 4xC-mount2/3"110 mmF223.7 μm$1,239.00 Ships in 2-3 weeks

Select object-space telecentric optics

Object-side telecentric optics control perspective on the object side. They are a distinct class from bi-telecentric designs. Choose a lens using the required object field and the model specifications, then verify the complete camera, illumination and mechanical arrangement for the inspection task.

  • Match the required field with sensor size and magnification, allowing room for part-position variation instead of framing the nominal part edge exactly.
  • Check the published working distance, depth of field, resolution and distortion at the intended aperture. Do not substitute a family description for the selected model data.
  • Compare object-side and bi-telecentric designs when sensor placement and measurement stability are critical, and verify the mount and body clearance before installation.

Configure a system · Browse all Telecentric lenses
