Lights

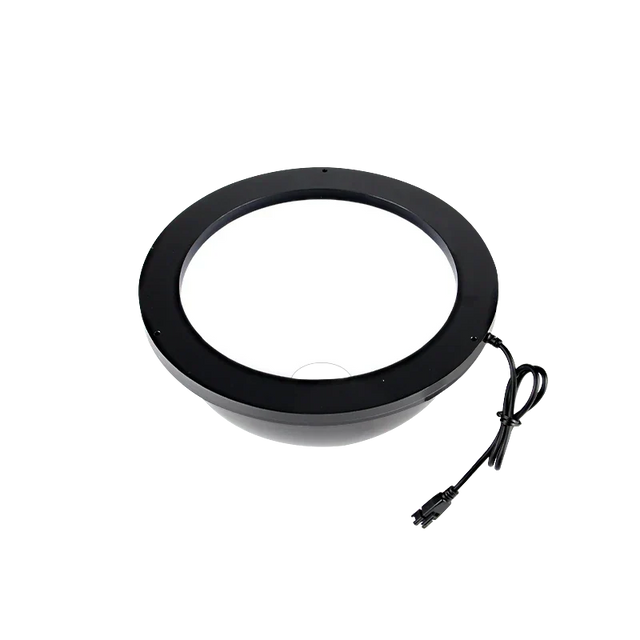

Infrared dome lights

Dome lights flood the part with fully diffuse, cloudy-day illumination - the go-to for curved, crinkled or highly reflective parts like cans, blister packs, foil and ball bearings. Infrared light is invisible to operators, passes through many dyes and thin plastics and is less affected by ambient light: for print, packaging and fill-level checks.

All dome lights · Red dome lights · Blue dome lights · Green dome lights · White dome lights

62 models Configure a systemAll lights
Infrared dome lights

1-24 of 62 models

Products

  • Ø66 mm dome light

    LS-DOM-0083

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 66 mm
    • Voltage 24 VDC

    From $320.00

    Ships in 3-4 weeks

  • Ø84 mm dome light

    LS-DOM-0084

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 84 mm
    • Voltage 24 VDC

    From $300.00

    Ships in 3-4 weeks

  • Ø45 mm dome light

    LS-DOM-0082

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 45 mm
    • Voltage 24 VDC

    From $200.00

    Ships in 3-4 weeks

  • Ø116 mm dome light

    LS-DOM-0085

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 116 mm
    • Voltage 24 VDC

    From $320.00

    Ships in 3-4 weeks

  • Ø265 mm dome light

    LS-DOM-0088

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 265 mm
    • Voltage 24 VDC

    From $780.00

    Ships in 3-4 weeks

  • Ø26 mm dome light

    LS-DOM-0081

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 26 mm
    • Voltage 24 VDC

    From $190.00

    Ships in 3-4 weeks

  • Ø138 mm dome light

    LS-DOM-0086

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 138 mm
    • Voltage 24 VDC

    From $430.00

    Ships in 3-4 weeks

  • Ø193 mm dome light

    LS-DOM-0087

    • Colour Red, Blue, White, Green, Infrared, UV
    • Emitting area dia. 193 mm
    • Voltage 24 VDC

    From $520.00

    Ships in 3-4 weeks

  • Dome light, 78.7 mm

    LS-DOM-0039

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 730 nm, 850 nm, 940 nm

    $979.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1795 mm

    LS-DOM-0038

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,539.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1744 mm

    LS-DOM-0037

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,439.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1693 mm

    LS-DOM-0036

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,339.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1643 mm

    LS-DOM-0035

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,249.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1592 mm

    LS-DOM-0034

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,149.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1541 mm

    LS-DOM-0033

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $4,059.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1490 mm

    LS-DOM-0032

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,959.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1439 mm

    LS-DOM-0031

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,859.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1389 mm

    LS-DOM-0030

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,769.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1338 mm

    LS-DOM-0029

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,669.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1287 mm

    LS-DOM-0028

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,569.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1236 mm

    LS-DOM-0027

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,479.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1185 mm

    LS-DOM-0026

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,379.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1135 mm

    LS-DOM-0025

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,279.00Quote

    Built to order: ships in about 4-5 weeks

  • Dome light, 25.5 mm, length 1084 mm

    LS-DOM-0024

    • Colour White, Infrared, Red, Green, Blue
    • Voltage 24 VDC
    • Wavelength 850 nm, 940 nm

    $3,189.00Quote

    Built to order: ships in about 4-5 weeks

Compare
LS-DOM-0083Ø66 mm dome light Red, Blue, White, Green, Infrared, UVdia. 66 mm24 VDC66 mm--From $320.00 Ships in 3-4 weeks
LS-DOM-0084Ø84 mm dome light Red, Blue, White, Green, Infrared, UVdia. 84 mm24 VDC84 mm--From $300.00 Ships in 3-4 weeks
LS-DOM-0082Ø45 mm dome light Red, Blue, White, Green, Infrared, UVdia. 45 mm24 VDC45 mm--From $200.00 Ships in 3-4 weeks
LS-DOM-0085Ø116 mm dome light Red, Blue, White, Green, Infrared, UVdia. 116 mm24 VDC116 mm--From $320.00 Ships in 3-4 weeks
LS-DOM-0088Ø265 mm dome light Red, Blue, White, Green, Infrared, UVdia. 265 mm24 VDC265 mm--From $780.00 Ships in 3-4 weeks
LS-DOM-0081Ø26 mm dome light Red, Blue, White, Green, Infrared, UVdia. 26 mm24 VDC26 mm--From $190.00 Ships in 3-4 weeks
LS-DOM-0086Ø138 mm dome light Red, Blue, White, Green, Infrared, UVdia. 138 mm24 VDC138 mm--From $430.00 Ships in 3-4 weeks
LS-DOM-0087Ø193 mm dome light Red, Blue, White, Green, Infrared, UVdia. 193 mm24 VDC193 mm--From $520.00 Ships in 3-4 weeks
LS-DOM-0039Dome light, 78.7 mm White, Infrared, Red, Green, Blue-24 VDC-730 nm, 850 nm, 940 nm78.7 mm$979.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0038Dome light, 25.5 mm, length 1795 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1788 mm$4,539.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0037Dome light, 25.5 mm, length 1744 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1737 mm$4,439.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0036Dome light, 25.5 mm, length 1693 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1686 mm$4,339.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0035Dome light, 25.5 mm, length 1643 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1635 mm$4,249.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0034Dome light, 25.5 mm, length 1592 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1584 mm$4,149.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0033Dome light, 25.5 mm, length 1541 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1534 mm$4,059.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0032Dome light, 25.5 mm, length 1490 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1483 mm$3,959.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0031Dome light, 25.5 mm, length 1439 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1432 mm$3,859.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0030Dome light, 25.5 mm, length 1389 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1381 mm$3,769.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0029Dome light, 25.5 mm, length 1338 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1330 mm$3,669.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0028Dome light, 25.5 mm, length 1287 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1280 mm$3,569.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0027Dome light, 25.5 mm, length 1236 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1229 mm$3,479.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0026Dome light, 25.5 mm, length 1185 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1178 mm$3,379.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0025Dome light, 25.5 mm, length 1135 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1127 mm$3,279.00Quote Built to order: ships in about 4-5 weeks
LS-DOM-0024Dome light, 25.5 mm, length 1084 mm White, Infrared, Red, Green, Blue-24 VDC-850 nm, 940 nm1076 mm$3,189.00Quote Built to order: ships in about 4-5 weeks
