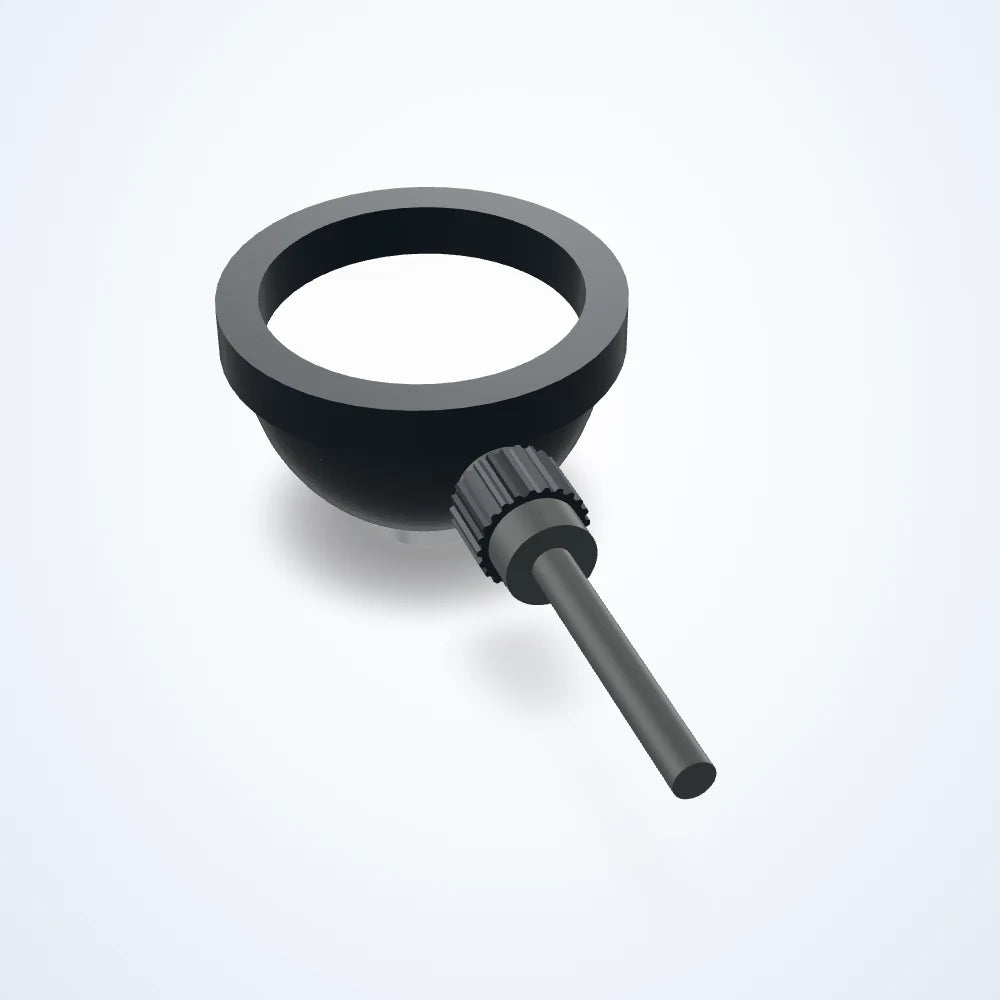

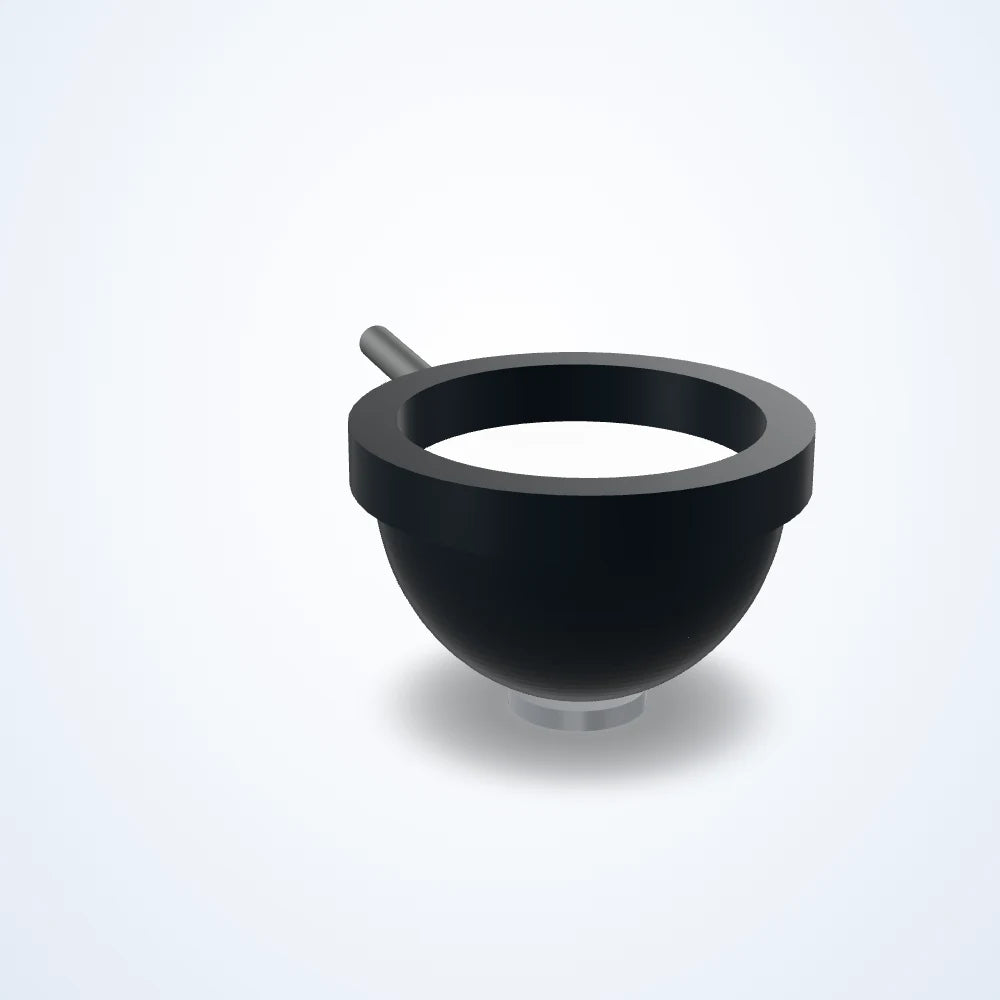

Rendered illustration: the actual product may differ in appearance.
Dome lights
Ø138 mm dome light (LS-DOM-0086)
Model LS-DOM-0086
- ColourRed, Blue, White, Green, Infrared, UV
- Emitting areadia. 138 mm
- Voltage24 VDC
- Outer diameter138 mm
$430.00
Ships in 3-4 weeks
2.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
Dome light for curved and reflective parts. Size Ø138 mm; 24 V DC supply; available in red, blue, white, green, infrared, UV.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0086 |
|---|---|
| Service life | White:30,000hrs, Red: 60,000hrs (Depends on the operating environment, not a gurantee) |
| Pin assignment | 1: (+), 2: NC, 3: (-) |
Interfaces and I/O
| Connector | SMR-03 V-B |
|---|---|
| Cable length | 500 mm |
Light
| Wavelength | Red: 620-630 nm; Blue: 460-475 nm; Green: 520-530 nm |
|---|---|
| Colour temperature (white) | 6000-7500K |
| Emitting area (mm) | dia. 138 mm |
Environment and compliance
| Operating environment | Temperature: 0~40 °C Humidity:20% to 85% RH (with no condensation) |
|---|
Electrical
| Supply voltage | 24 VDC |
|---|
Mechanical
| Outer diameter (mm) | 138 |
|---|---|
| Housing material | Aluminum alloy, Resin |
| Inner diameter (mm) | 30 mm |
| Shipping weight | 2.00 kg |
Other models in the Dome lights (LS-DOM-S14) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-DOM-0081 | Ø26 mm | from $190.00 | Ships in 3-4 weeks | View |
| LS-DOM-0082 | Ø45 mm | from $200.00 | Ships in 3-4 weeks | View |
| LS-DOM-0084 | Ø84 mm | from $300.00 | Ships in 3-4 weeks | View |
| LS-DOM-0085 | Ø116 mm | from $320.00 | Ships in 3-4 weeks | View |
| LS-DOM-0083 | Ø66 mm | from $320.00 | Ships in 3-4 weeks | View |
| LS-DOM-0087 | Ø193 mm | from $520.00 | Ships in 3-4 weeks | View |
| LS-DOM-0088 | Ø265 mm | from $780.00 | Ships in 3-4 weeks | View |
