Dome lights

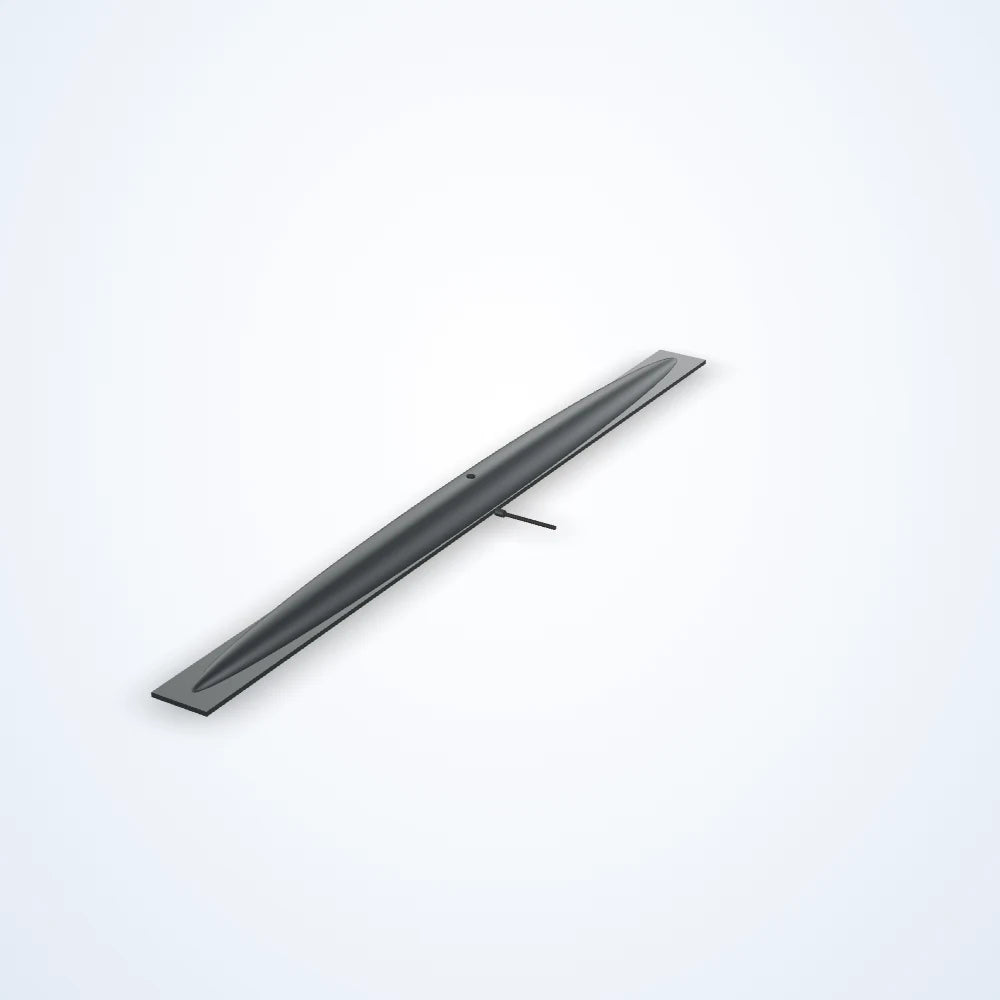

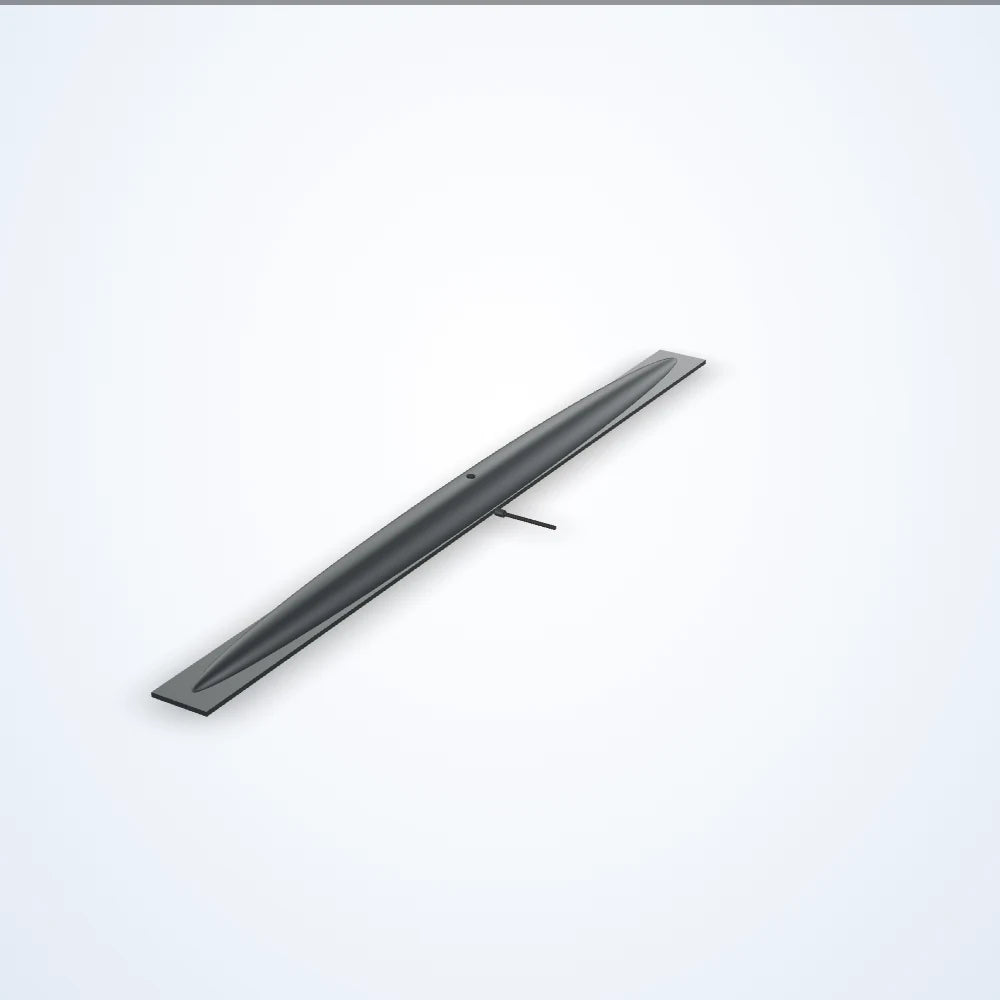

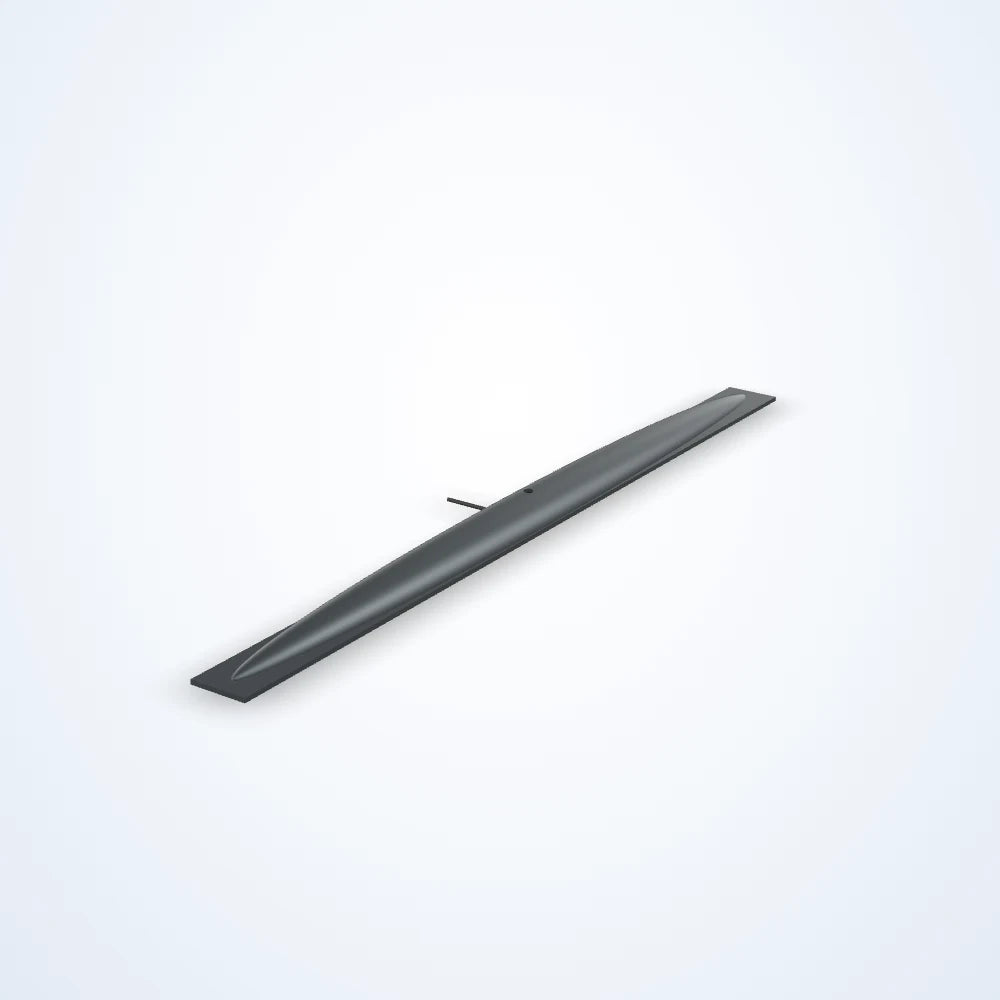

Dome light, 25.5 mm, length 1185 mm (LS-DOM-0026)
Model LS-DOM-0026
- ColourWhite, Infrared, Red, Green, Blue
- Voltage24 VDC
- Wavelength850 nm, 940 nm
- Lit length1178 mm
from $3,379.00 USDQuote
Quoted price: add to quote for lead time and volume pricing.
Built to order: ships in about 4-5 weeks
Choose a configuration 8 available
Configuration LS-DOM-0026-1 $3,379.00
List price of this configuration; the final quote follows.
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Dome light for diffuse, cloudy-day illumination of curved, shiny and reflective parts; the camera looks through the viewport. Lit area 1178 x 25.5 mm; 24 VDC supply; connection: flying leads. Choose colour below (8 configurations) and request a quote.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-DOM-0026 |
|---|---|
| Connection at light | Hardwired |
| Driver included | No Driver Required |
| Driver location | No Driver |
| Operating modes | Constant On |
| Collimated | Not Collimated |
| Daisy chain | No |
| Direct connect | No |
| Maximum duty cycle (%) | 100 |
| Polarized | Not Polarized |
Interfaces and I/O
| Connector | Flying Leads |
|---|---|
| Cable length (mm) | 2000 |
Light
| Diffused | Not Diffused |
|---|
Environment and compliance
| Operating temperature | up to 60 °C |
|---|---|
| IP rating | IP67 |
| Compliance | CE, IEC 62471, RoHS |
| Minimum operating temperature | 32 °F (0 °C) |
Electrical
| Voltage | 24 VDC |
|---|---|
| Strobe trigger input | Constant On Only |
| Maximum constant on current (mA) | 2782 |
| Maximum input power constant on (W) | 66.8 |

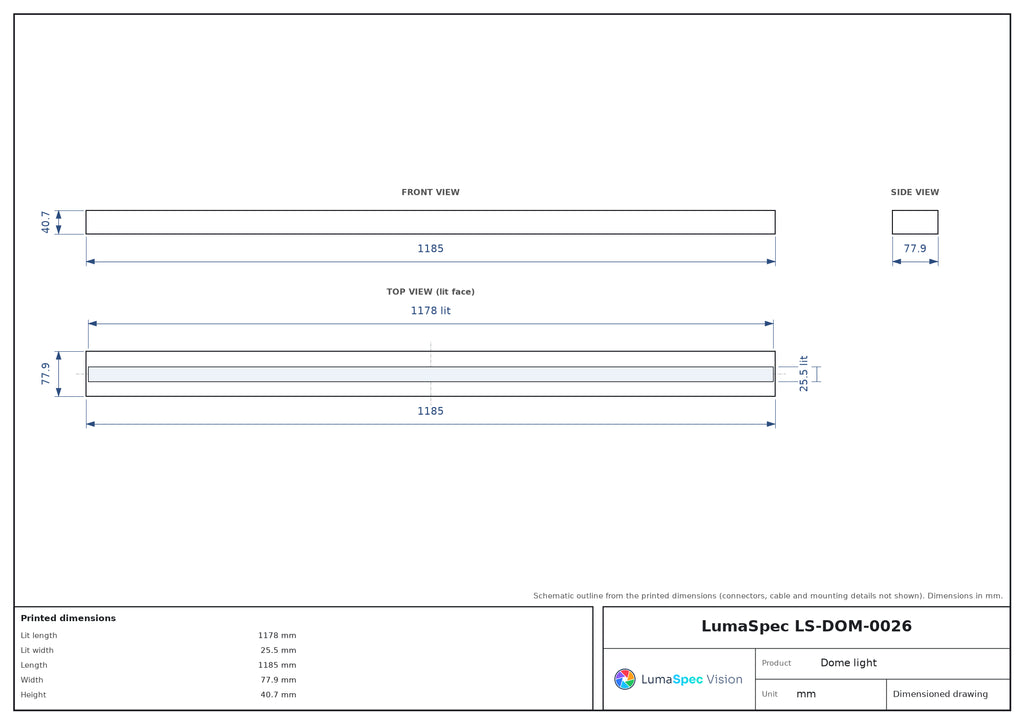

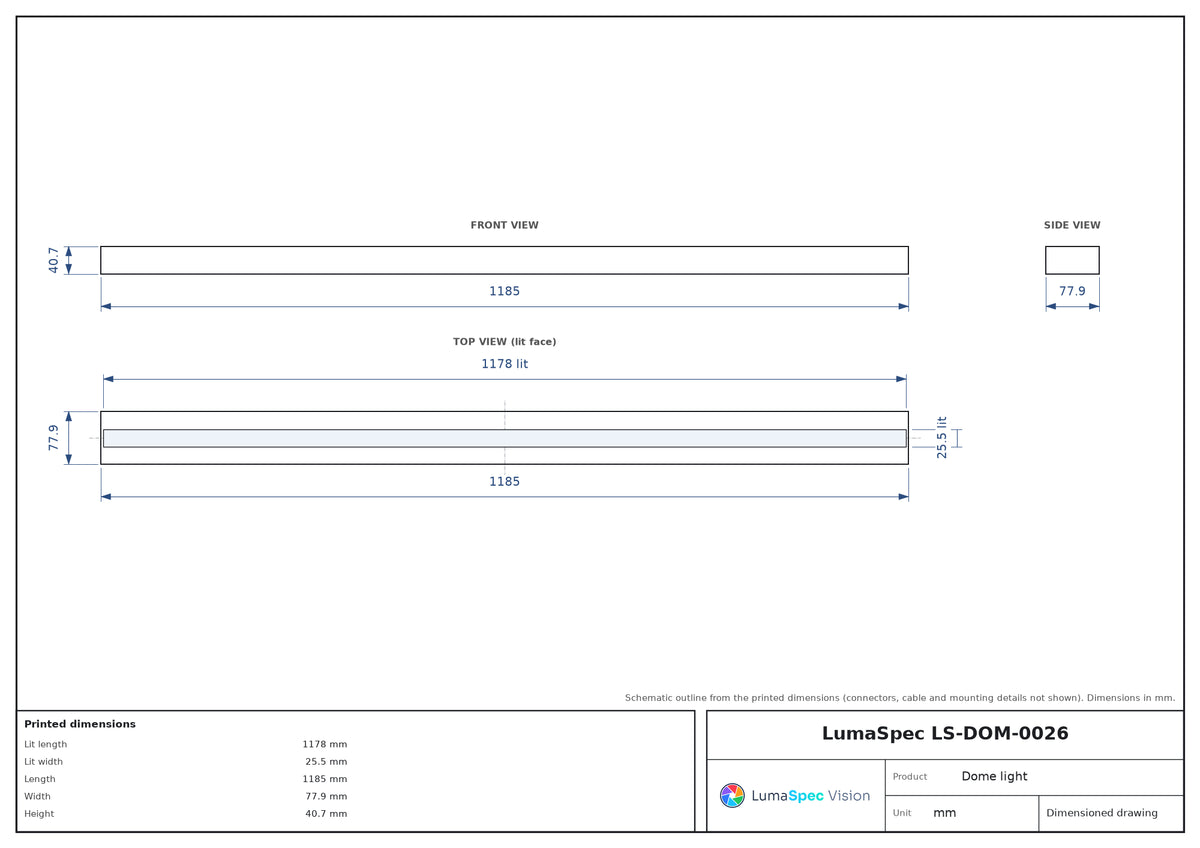

Mechanical
| Lit length (mm) | 1178 |
|---|---|
| Lit width (mm) | 25.5 |
| Length (mm) | 1185 |
| Width (mm) | 77.9 |
| Height (mm) | 40.7 |
| Housing | Aluminum |
| Mounting | Tapped Holes |
