88 x 39 mm traditional surface light source
LS-BKL-1156
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 70 x 18 mm
- Voltage 24 V DC (12 V on request)
$149.00
Ships in 2-3 weeks
Lights
Infrared backlights
Backlights sit behind the part and give the camera a sharp, high-contrast silhouette - the standard choice for gauging, outline and hole inspection, and for spotting contamination in clear film. Infrared light is invisible to operators, passes through many dyes and thin plastics and is less affected by ambient light: for print, packaging and fill-level checks.
All backlights · Red backlights · Blue backlights · Green backlights · White backlights · UV backlights
Products
180 x 15 mm traditional surface light source
LS-BKL-1166
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 159 x 10 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks
47.9 x 34.1 mm traditional surface light source
LS-BKL-1157
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 35.9 x 32.1 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks
56 x 28 mm traditional surface light source
LS-BKL-1155
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 34 x 25 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks
49 x 26 mm traditional surface light source
LS-BKL-1154
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 19 x 19 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks
25 x 17.9 mm traditional surface light source
LS-BKL-1153
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 15 x 16 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks
20 x 14 mm traditional surface light source
LS-BKL-1152
- Colour Red, Green, Blue, White, Infrared, UV
- Emitting area 12 x 9 mm
- Voltage 24 V DC (12 V on request)
$139.00
Ships in 2-3 weeks

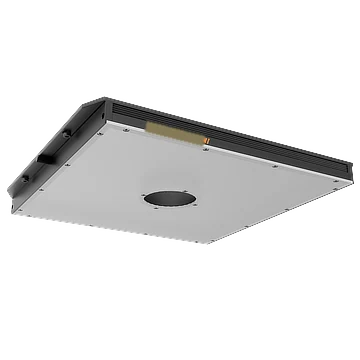

Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm
LS-BKL-1390
- Colour Infrared
- Emitting area 250 mm × 250 mm
- Size 282 mm × 263 mm × 19 mm
$739.00Quote
Ships in 2-3 weeks
150 x 150 mm Infrared light
LS-BKL-1344
- Colour Infrared
- Emitting area 150 x 150 mm
- Voltage 24 V
$389.00
Ships in 2-3 weeks
100 x 100 mm Infrared light
LS-BKL-1343
- Colour Infrared
- Emitting area 100 x 100 mm
- Voltage 24 V
$279.00
Ships in 2-3 weeks
80 x 80 mm Infrared light
LS-BKL-1342
- Colour Infrared
- Emitting area 80 x 80 mm
- Voltage 24 V
$249.00
Ships in 2-3 weeks
70 x 70 mm Infrared light
LS-BKL-1341
- Colour Infrared
- Emitting area 70 x 70 mm
- Voltage 24 V
$229.00
Ships in 2-3 weeks
50 x 50 mm Infrared light, power 2.4 W
LS-BKL-1340
- Colour Infrared
- Emitting area 50 x 50 mm
- Voltage 24 V
$209.00
Ships in 2-3 weeks
Flat Backlight with Center Hole, 300 x 200 mm, IR 940 nm
LS-BKL-1395
- Colour Infrared
- Emitting area 300 mm × 200 mm
- Size 332 mm × 213 mm × 19 mm
$719.00
Ships in 2-3 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-BKL-115688 x 39 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 70 x 18 mm | 24 V DC (12 V on request) | Standard | - | - | $149.00 | Ships in 2-3 weeks | |
|
LS-BKL-1166180 x 15 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 159 x 10 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
|
LS-BKL-115747.9 x 34.1 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 35.9 x 32.1 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
|
LS-BKL-115556 x 28 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 34 x 25 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
|
LS-BKL-115449 x 26 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 19 x 19 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
|
LS-BKL-115325 x 17.9 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 15 x 16 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
|
LS-BKL-115220 x 14 mm traditional surface light source
| Red, Green, Blue, White, Infrared, UV | 12 x 9 mm | 24 V DC (12 V on request) | Standard | - | - | $139.00 | Ships in 2-3 weeks | |
 LS-BKL-1390Flat Backlight with Center Hole, 250 x 250 mm, IR 940 nm
| Infrared | 250 mm × 250 mm | 24 VDC | - | 282 mm × 263 mm × 19 mm | 52 W | $739.00Quote | Ships in 2-3 weeks | |
 LS-BKL-1344150 x 150 mm Infrared light
| Infrared | 150 x 150 mm | 24 V | - | - | 11.5 W | $389.00 | Ships in 2-3 weeks | |
|
LS-BKL-1343100 x 100 mm Infrared light
| Infrared | 100 x 100 mm | 24 V | - | - | 7.7 W | $279.00 | Ships in 2-3 weeks | |
|
LS-BKL-134280 x 80 mm Infrared light
| Infrared | 80 x 80 mm | 24 V | - | - | 4.3 W | $249.00 | Ships in 2-3 weeks | |
|
LS-BKL-134170 x 70 mm Infrared light
| Infrared | 70 x 70 mm | 24 V | - | - | 3.8 W | $229.00 | Ships in 2-3 weeks | |
|
LS-BKL-134050 x 50 mm Infrared light, power 2.4 W
| Infrared | 50 x 50 mm | 24 V | - | - | 2.4 W | $209.00 | Ships in 2-3 weeks | |
 LS-BKL-1395Flat Backlight with Center Hole, 300 x 200 mm, IR 940 nm
| Infrared | 300 mm × 200 mm | 24 VDC | - | 332 mm × 213 mm × 19 mm | 43.2 W | $719.00 | Ships in 2-3 weeks |
