Coaxial lights

Coaxial lights send light down the camera's own axis through a beam splitter, so flat mirror-like surfaces - wafers, polished metal, printed foil, labels under film - image evenly without glare or hot spots.

Shop by colour: Red coaxial lights · Blue coaxial lights · Green coaxial lights · White coaxial lights · Infrared coaxial lights · UV coaxial lights

260 models Configure a systemAll lights
Coaxial lights

193-216 of 260 models

Products

Compare
LS-CXL-005260 x 60 mm Coaxial light, standard type Red, Blue, White24 VSMD500 mm (drawing)--$269.00 Ships in 2-3 weeks

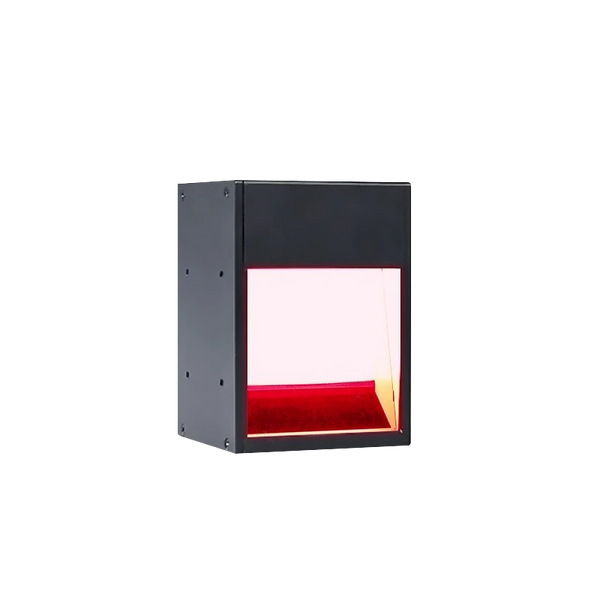

LS-CXL-005335 x 35 mm Coaxial light, standard type Red, Blue, White24 VSMD-3-pin flat-$159.00 Ships in 2-3 weeks
LS-CXL-0030120 x 120 mm Coaxial light Red, Green, Blue, White24 V---120 x 120 mm$599.00 Ships in 2-3 weeks
LS-CXL-005140 x 40 mm Coaxial light, standard type Red, Blue, White24 VSMD500 mm (drawing)--$179.00 Ships in 2-3 weeks
LS-CXL-005030 x 30 mm Coaxial light, standard type Red, Blue, White24 VSMD500 mm (drawing)--$149.00 Ships in 2-3 weeks
LS-CXL-0029100 x 100 mm Coaxial light Red, Green, Blue, White24 V---100 x 100 mm$479.00 Ships in 2-3 weeks
LS-CXL-002760 x 60 mm Coaxial light Red, Green, Blue, White24 V---60 x 60 mm$269.00 Ships in 2-3 weeks
LS-CXL-002880 x 80 mm Coaxial light Red, Green, Blue, White24 V---80 x 80 mm$359.00 Ships in 2-3 weeks

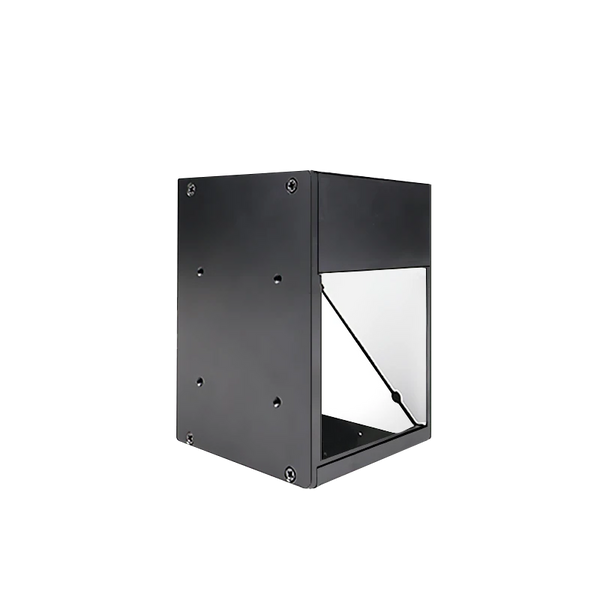

LS-CXL-004920 x 20 mm Coaxial light, standard type Red, Blue, White24 VSMD-3-pin flat-$119.00 Ships in 2-3 weeks
LS-CXL-0021100 x 100 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$479.00 Ships in 2-3 weeks
LS-CXL-002540 x 40 mm Coaxial light Red, Green, Blue, White24 V---40 x 40 mm$179.00 Ships in 2-3 weeks
LS-CXL-002650 x 50 mm Coaxial light Red, Green, Blue, White24 V---50 x 50 mm$219.00 Ships in 2-3 weeks
LS-CXL-002430 x 30 mm Coaxial light Red, Green, Blue, White24 V---30 x 30 mm$149.00 Ships in 2-3 weeks
LS-CXL-001980 x 80 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$369.00 Ships in 2-3 weeks
LS-CXL-002320 x 20 mm Coaxial light Red, Green, Blue, White24 V---20 x 20 mm$119.00 Ships in 2-3 weeks
LS-CXL-001130 x 30 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$149.00 Ships in 2-3 weeks
LS-CXL-001760 x 60 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$269.00 Ships in 2-3 weeks
LS-CXL-001550 x 50 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$219.00 Ships in 2-3 weeks
LS-CXL-000750 x 50 mm High power coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$219.00 Ships in 2-3 weeks
LS-CXL-001340 x 40 mm Narrow angle coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$179.00 Ships in 2-3 weeks

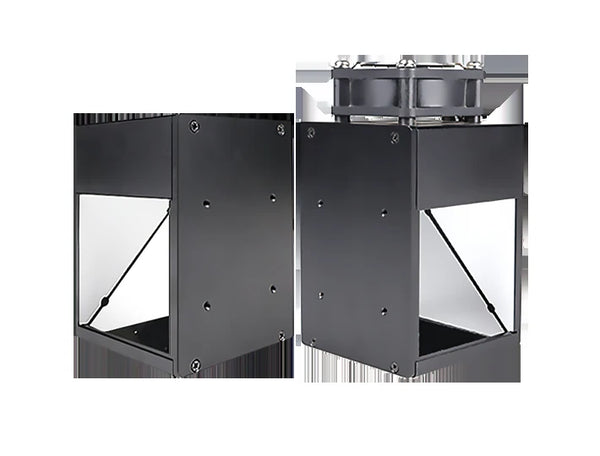

LS-CXL-0010100 x 100 mm High power coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$489.00 Ships in 2-3 weeks

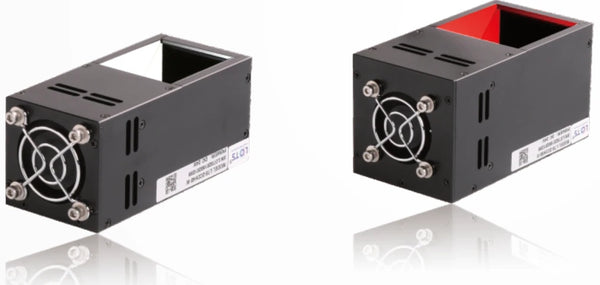

LS-CXL-000530 x 30 mm High power coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$149.00 Ships in 2-3 weeks
LS-CXL-000980 x 80 mm High power coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$369.00 Ships in 2-3 weeks
LS-CXL-000640 x 40 mm High power coaxial light Red, Green, Blue, White24 V---20 mm x 20 mm$179.00 Ships in 2-3 weeks

Coaxial light or dome light?

A coaxial light sends light down the camera axis through a half-mirror (beam splitter). Flat, mirror-like surfaces reflect it straight back, so they look evenly bright, and any dent, scratch, print or contamination that scatters light looks dark. Use it for flat shiny parts: wafers, glass, polished metal, film, PCB pads and laser marks on flat metal.

A dome light lights the part from every direction at once. It suits shiny parts that are curved, crinkled or uneven (cans, foil packs, ball bearings), where a coaxial light would only light the flat spots.

Choosing a coaxial light

  • Size: the emitting window must be larger than the field of view, since only the part under the window is lit evenly.
  • Working distance: the camera looks through the light, so the light sits between lens and part; check the room.
  • Colour: red for general use, blue for fine scratches on metal, white for colour cameras.
  • Brightness: the half-mirror loses part of the light, so coaxial lights need more power than a ring light for the same image; a strobing controller helps on moving parts.
