Camera rotation pose prediction with coordinate transforms

A stationary target does not move when you rotate the camera, but its coordinates in the camera frame change. Predicting those coordinates requires the camera's full movement, not just an angle added to the target's reported orientation. This explainer is for developers transforming an existing target measurement into a future camera frame. You will define the axes, apply the inverse camera motion, include an offset rotation pivot, and check the prediction against a new measurement.

Define the frames before calculating anything

Use three coordinate frames: the original camera frame, C0; the future camera frame, C1; and the target frame, O. A target pose contains both the target origin's position and its orientation relative to the camera.

For the examples below, use a right-handed camera convention:

• Positive x points right in the image.
• Positive y points down in the image.
• Positive z points forward along the optical axis.
• Positive rotations follow the right-hand rule.

Under this convention, a turn about the camera's vertical axis is a rotation about y. Some software instead calls rotation about z “yaw.” A platform may define yaw about a separate world-vertical axis. Those definitions produce different coordinate changes.

Record the physical rotation axis, its positive direction, and the frame expressing it. Do not rely on the word “yaw” alone.

If your starting pose comes from a planar marker, the fiducial target pose-estimation guide covers that measurement stage. Here, the starting pose is already known. The distinction between a measured transform and a solver seed is explained in camera pose initial-guess reference frames.

Apply the inverse of the camera movement

Define T_A_B as a rigid transform that converts coordinates from frame B into frame A. It contains a rotation matrix R_A_B and a translation vector t_A_B. Use column vectors throughout.

Let G describe the future camera frame expressed in the original camera frame. Its translation is the future camera center's position relative to the original camera center.

This is a passive coordinate change: the stationary target is being expressed in a different frame. Consequently, you apply the inverse camera movement, not the forward camera movement.

The translation must be subtracted before applying the transposed rotation. Both p_C0 and t must use the original camera axes and the same distance units.

For a known world frame W, the same relationship can be written without constructing the relative movement separately:

The shared coordinate-frame calibration guide explains how consistent transform definitions support longer chains. The same composition rules apply even when only one physical camera moves.

Work through a rotation about the camera center

Assume the target origin initially has these coordinates:

Now rotate the camera by positive 20 degrees about the original camera y-axis, with no camera-center translation. The camera turns toward positive x under the stated convention.

The following matrix describes the future camera axes in the original camera frame. The angle theta is positive 20 degrees.

Using cos(20 degrees) approximately 0.93969 and sin(20 degrees) approximately 0.34202:

The target moves left in the predicted camera image because the camera turned right. Its y-coordinate remains unchanged only because this example rotates about y through the camera center.

For comparison, a positive 20-degree camera rotation about optical z would instead give:

These are different answers to a superficially similar “yaw change.” Neither interpretation is valid until the axis convention is explicit.

Include the camera-to-pivot offset

A rotating platform normally turns about a mechanical axis, not necessarily the camera's projection center. That offset makes the camera center translate as the platform rotates.

Let d be the vector from a fixed pivot point to the original camera center, expressed in C0 axes. Let A be the platform rotation expressed in those same axes. Assume the camera is rigidly attached and the pivot does not translate.

Here, I is the identity matrix. The expression follows directly from geometry: the original pivot location relative to the camera is -d, while the rotated pivot-to-camera vector is A × d.

Continue the worked example with a pivot-to-camera vector of (100, 0, 0) mm and the same positive 20-degree y rotation:

The offset changes the answer even though the commanded angle is identical. Do not treat it as an image-coordinate correction applied after rotation.

Transform target orientation without adding angles

The target's reported yaw, pitch and roll describe its orientation relative to the camera. They do not specify the target origin's location or the camera's mechanical pivot.

For a known camera movement, transform the target position and orientation separately using the equations above. The target's initial orientation is needed to predict its future orientation, but not to transform its already measured origin coordinates.

Do not generally add the camera angle to one target Euler angle. Three-dimensional rotations do not commute, and Euler-angle values depend on rotation order and axis definitions.

Keep rotations as matrices or consistently defined unit quaternions during composition. Convert back to Euler angles only for display or an interface that requires them. When using quaternions, confirm component order and multiplication convention rather than assuming every library agrees.

For a target feature offset from the target origin, orientation does affect its position. First transform that feature from target coordinates into C0, then apply the inverse camera movement.

Verify direction, units and measurement timing

Use simple tests before trusting a complete movement sequence:

1. Identity test: zero movement must return the original target pose.
2. Translation test: moving the camera toward positive x must reduce the target's camera-frame x-coordinate.
3. Rotation test: a centered target must move left after a small positive camera y rotation under this convention.
4. Round-trip test: transform into C1 and back into C0; recover the original pose within numerical precision.
5. Distance test: a pure camera-center rotation must preserve the target origin's distance from that center.

Use radians inside trigonometric functions unless the software explicitly accepts degrees. A correct matrix with an incorrect angular unit can still produce plausible-looking coordinates.

Timing also matters. The starting target measurement and starting platform pose must describe the same instant. For a moving platform, command timestamps, encoder timestamps and image timestamps may differ.

A useful small-angle sensitivity estimate is:

This estimates the scale of transverse error for an unfavorable viewing direction, not a complete uncertainty budget. It shows why a small angular error can dominate distant-target predictions.

When recorded poses seem to move the camera in the wrong direction, camera trajectory visualization with a fixed target provides a complementary way to inspect the transform sequence.

Build a validation fixture before selecting production hardware

The mathematics does not require a special camera type. The practical requirement is a repeatable target measurement and independently known camera motion.

Use the area scan cameras category and camera finder to compare acquisition options. One catalog option is the LS-CMR-0166, a USB3 rolling-shutter camera. A stationary validation capture avoids motion distortion during the exposure; it does not remove calibration or pose-estimation errors.

Start with a target that remains fixed while you measure the camera at several stopped positions. Compare predicted and newly measured poses at each position. Separate repeatability at one stop from systematic error across the rotation range.

The camera stands category and accessories finder provide mounting options for the test arrangement. The LS-MNT-0040 is a camera-stand option; confirm its mechanical compatibility with your fixture.

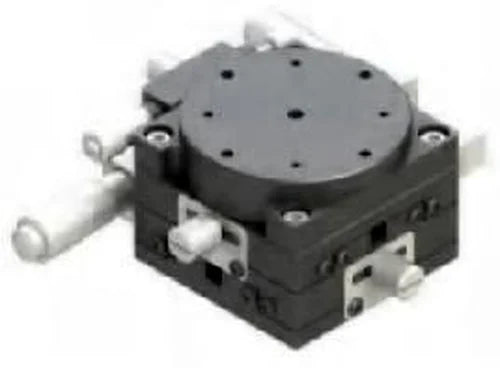

The LS-MNT-0220 is a manual XY plus rotation stage. Its presence alone does not establish angular measurement accuracy or the optical pivot location. Confirm those separately against the experiment's requirements.

Record the target measurement, platform pose, predicted pose and residual for every stop. A consistent bias suggests a convention or calibration problem; scattered errors suggest measurement noise, mechanical variation or timing uncertainty. For broader validation methods, use extrinsic calibration accuracy beyond reprojection error.

Know when rigid prediction is not enough

A mathematically valid future pose does not guarantee that the target remains visible. Project the predicted target corners with the calibrated intrinsics and distortion model, then check image boundaries and occlusion.

For an ideal pinhole projection:

The focal parameters fx and fy are expressed in pixels. The principal point is (cx, cy). Points with nonpositive z are not in front of the camera under the chosen convention.

Do not combine rectified image coordinates with an incompatible camera matrix. The rectified-image pose and intrinsics guide explains that distinction.

Prediction also becomes incomplete when the target moves, the mount flexes, or the actual movement differs from its command. In those cases, include the missing motion model or update the prediction with another observation. A predicted pose can help initialize tracking, but it is not an independent measurement.

Final checklist and next step

Before implementing camera rotation pose prediction, confirm:

• The target is stationary in the reference frame used for the calculation.
• Every transform states its source and destination frames.
• The rotation axis and positive direction are physically defined.
• Translation and target coordinates use matching axes and units.
• The camera-to-pivot offset is measured or calibrated.
• Rotation composition uses one consistent convention.
• Image and movement measurements correspond to the same instant.
• Identity, direction and round-trip tests pass.
• Predicted target corners remain visible.
• Residual errors fit the application's acceptance limit.

Use the camera configurator once the acquisition requirements are clear. For a fixture review, send the axis definitions, pivot geometry and required prediction tolerance through application support. Those details determine whether the next improvement belongs in the camera, the mount or the movement measurement.
