Camera extrinsic calibration accuracy beyond reprojection error

A calibration can reproduce detected image corners closely while placing the camera incorrectly in physical space. This matters when you use its pose for measurement, camera alignment, or coordinate transfer. A plausible translation vector and a small image residual are not sufficient acceptance criteria.

The practical approach is to separate coordinate conventions, target scale, image formation, and independent verification. You can then identify whether the error comes from bookkeeping, weak calibration geometry, biased corner locations, or the physical reference itself. Establish the required position and orientation accuracy before choosing more pixels or collecting more images.

Decide what accuracy you actually need

Camera extrinsic calibration accuracy describes how closely an estimated camera-to-reference transformation matches physical geometry. Reprojection error describes how closely projected model points match the image points supplied to the solver. These quantities answer different questions.

Define the reference frame, operating volume, and acceptance limits before comparing results. A camera-center position requirement does not automatically describe the accuracy of every reconstructed point. Orientation error can produce substantial displacement away from the reference origin.

For example, you might require position error below 0.20 mm throughout the working region. State whether that means each coordinate component, Euclidean distance, or a particular measurement direction. These are different acceptance tests.

If the solver fails outright or produces unstable estimates, start with diagnosing singular synthetic calibration estimates. The checks below address a different case: a solution that looks reasonable but disagrees with an independent reference.

Confirm the transformation before judging its accuracy

A common calibration convention transforms target coordinates into camera coordinates. Under that convention, the translation vector is the target origin expressed in the camera frame. It is not the camera position expressed in the target frame.

Here, R is a rotation matrix, t is translation, and C_target is the camera center in target coordinates. The transpose is the inverse because a valid rotation matrix is orthonormal.

Use this sequence before changing solver settings:

1. Write down the origin, positive axis directions, handedness, and length units for both frames.
2. Confirm whether the returned transformation maps target to camera or camera to target.
3. Check which detected corner corresponds to the first object point.
4. Apply any renderer-to-calibration basis changes consistently to both rotation and translation.
5. Transform a known point and verify the result geometrically.

The object-point array defines the target origin. A detector does not inherently make the board center the origin. If the first object point is an interior checkerboard intersection, that intersection becomes the origin when its coordinates are zero.

Do not repair a coordinate mismatch by changing translation signs until the numbers look familiar. Axis permutations and handedness changes require an explicit basis conversion. Also confirm whether software uses row vectors or column vectors when composing transformations.

Check target scale and intrinsic assumptions

An incorrect target scale can leave reprojection error essentially unchanged. With otherwise consistent geometry, scaling every target coordinate scales the estimated translations by the same factor.

Suppose the supplied intersection pitch is 20.00 mm, but the actual pitch is 19.96 mm. A physical distance of 499 mm can then appear as:

That is a 1 mm distance error without requiring poor image agreement. Measure several intervals across the target rather than relying on one square. Check horizontal and vertical spacing separately; printing or image resizing can introduce unequal scale factors.

Flatness is another independent assumption. A bowed target does not satisfy a planar object-point model, even if its printed spacing is correct. Use the calibration target flatness guide to decide when a simple target is sufficient and when a more controlled reference is needed.

Intrinsic assumptions can also move the estimated camera position. In an ideal front-facing pinhole example:

An overestimated focal length can be compensated by an overestimated distance. Multiple tilted views help separate these parameters, but they do not make incorrect fixed values harmless.

Fix distortion or principal-point parameters only when you have a justified reason. An ideal synthetic camera may have no distortion; a physical lens needs evidence before imposing that assumption.

Interpret pixel residuals without turning them into guarantees

A pixel residual can be converted into an approximate object-plane distance, but that conversion is not an uncertainty bound on camera position.

For a nearly front-facing plane with approximately uniform sampling:

Consider an illustrative image covering 120 mm across 4000 pixels:

The 0.012 mm result describes a local image-to-plane conversion under those assumptions. It does not prove that camera-center error is below 0.012 mm. Correlated residuals, uncertain intrinsics, target scale, and depth sensitivity remain outside that simple calculation.

Use the camera resolution selection guide when deciding whether your image sampling supports reliable feature detection. For example, a requirement of 10 pixels across a 0.50 mm feature over a 120 mm field implies:

This is a sampling requirement, not a calibration accuracy specification. Increasing resolution can improve localization, but it cannot correct a wrong target dimension or frame transformation.

Inspect residual vectors across the image, not only one average. Directional patterns can reveal distortion mismatch or detection bias. Also record how your software defines its aggregate error; coordinate-wise RMS and Euclidean point RMS are not interchangeable.

Collect views that constrain the geometry

A large collection of nearly identical views may add little useful information. Prefer varied target orientations, image positions, and usable distances while keeping corners sharp and well exposed.

A practical starting dataset might contain 12–20 usable views, including moderate tilts of roughly 10–35 degrees around different axes. These are collection guidelines, not acceptance thresholds. The target must remain detectable, and the useful tilt depends on feature size and image quality.

Include views near the image center and edges. Change distance where the application allows it. Avoid collecting every image with the board front-facing, centered, and nearly the same size.

Keep focus, image size, and relevant optical settings consistent with operation. Changing focus can change the effective calibration. Resizing or cropping images also requires corresponding changes to the intrinsic coordinate mapping.

Reserve some views for evaluation rather than fitting. Held-out images test generalization within the same imaging process, but they are not an independent physical accuracy reference. A wrongly scaled target can remain self-consistent in both groups.

For coverage planning, use target and lens coverage margins. After disturbing the installation, follow a controlled calibration recovery process rather than assuming the previous transformation still applies.

Separate rendered-image bias from physical errors

Synthetic images remove some physical uncertainties, but they still contain an image-generation pipeline. Rasterization, antialiasing, texture filtering, and resampling can affect the detected intersection locations.

First test the mathematics without rendering. Project known target coordinates directly through a known camera model, then solve using those exact image coordinates. With sufficient geometric diversity and consistent conventions, this should recover the generating parameters to numerical precision within solver limitations.

Next introduce rendered images. The difference between the analytic test and the image-based test isolates the effects of rendering and detection more clearly.

Check pixel-coordinate conventions carefully. For an image width W indexed from 0 to W−1, the midpoint of the index range is (W−1)/2. Another system may express positions relative to pixel boundaries. A half-pixel mismatch can therefore arise from coordinate definitions rather than a physical camera displacement.

Do not assume that blurring a rendered image makes it equivalent to a real camera. Filtering may change detector behavior, but it can also conceal a systematic mismatch. Compare detected locations with known projections before selecting filtering or refinement-window settings.

In physical images, examine target flatness, glare, clipping, defocus, motion, and lens distortion separately. A synthetic result with excellent accuracy does not establish the accuracy of the physical target or optics.

Validate against independent measurements

Independent validation needs information that was not merely reused from the fitting process. Options include surveyed target positions, a characterized reference fixture, or independently measured points within the working volume.

Be careful when comparing an estimated optical center with a measurement to the camera housing. The housing surface is not automatically the optical center. That comparison requires a known relationship between the measured mechanical datum and the camera coordinate frame.

For each validation position, transform the reference geometry into the same frame and units as the estimate. Record the coordinate differences and their magnitude:

Suppose one validation point has errors of 0.12 mm, −0.08 mm, and 0.05 mm:

That point meets an illustrative 0.20 mm distance limit. It does not establish performance elsewhere. Test near the center, boundaries, and relevant depths, then report the maximum observed error alongside repeatability and reference uncertainty.

Orientation deserves a separate check. For small angles, displacement grows approximately with distance from the reference origin:

At a 300 mm lever arm, an orientation error of 0.10 degrees contributes approximately 0.52 mm of displacement. This explains why a satisfactory position estimate near the origin can still fail elsewhere.

Repeat the validation after removing and replacing the target if that represents normal operation. Separate repeated image capture from repeated mechanical setup; they test different sources of variation.

Choose hardware around the validation task

Choose area scan cameras by image sampling, acquisition needs, and compatibility rather than expecting a particular resolution to guarantee pose accuracy. The camera finder helps narrow those requirements.

The LS-CMR-0053 is a GigE area scan camera with a rolling shutter. Evaluate target and camera motion before selecting that shutter type for calibration capture.

Select machine vision lenses for sensor coverage, required field, working distance, and usable image quality across the frame. Use the lens finder after establishing those constraints.

The LS-FFL-0567 is a C-mount machine vision lens. Treat it as a candidate for optical evaluation, not as evidence that a particular calibration tolerance will be met.

Stable mounting matters because fixture movement becomes calibration error. Browse camera stands and the accessories finder for a suitable mechanical arrangement.

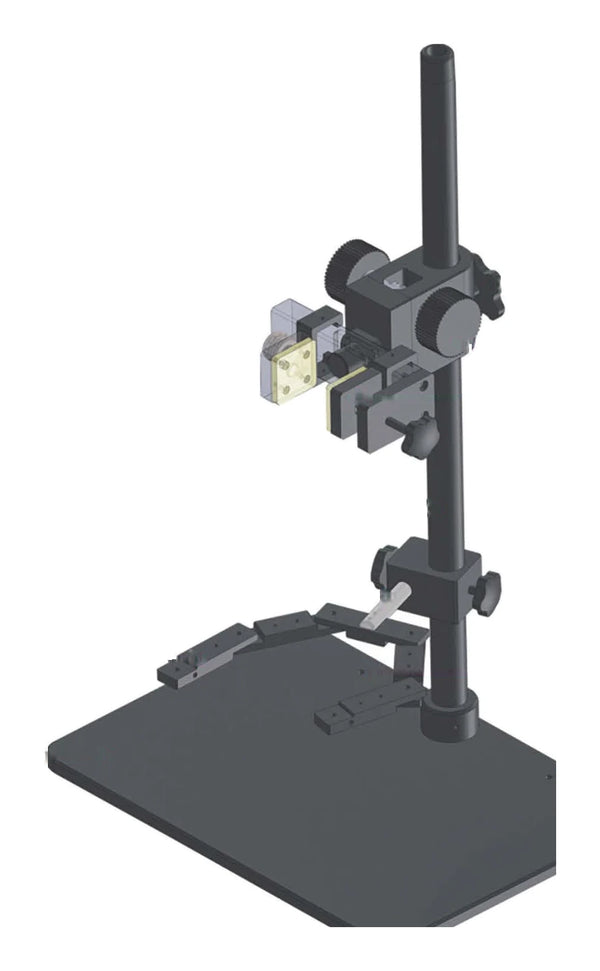

The LS-MNT-0006 is a portable optical test stand. Confirm its suitability for your assembly and reference fixture before ordering.

These parts illustrate hardware categories involved in a bench setup. They are not a validated accuracy package. Confirm the complete optical and mechanical arrangement through the same independent acceptance test you intend to use in service.

Know when more images or joint optimization will not help

More images help when they add independent geometric information or reduce genuinely random measurement variation. They do not remove a consistent target-scale error, an incorrect origin, or biased corner locations repeated across the dataset.

Joint optimization across cameras and target poses can improve consistency when the observations and model support it. It cannot establish physical scale without scale information. It also cannot recover information absent from weak or repetitive viewing geometry.

Likewise, fixing more parameters is not automatically safer. Correct fixed intrinsics can simplify pose estimation; incorrect fixed intrinsics force other parameters to compensate.

If residuals are small but independent errors remain large, prioritize scale, coordinate transforms, intrinsic assumptions, and the reference measurement. If residuals vary systematically across the image, investigate image formation and distortion modeling. If independent results vary between captures, investigate acquisition and fixture stability.

Complete the acceptance and ordering checklist

Before ordering or accepting the installation, confirm:

• Coordinate definition: origins, axes, transformation direction, and units are documented.
• Target geometry: intersection spacing and flatness are characterized well enough for the required tolerance.
• Image pipeline: crop, resize, filtering, and pixel-coordinate conventions are controlled.
• Dataset geometry: views include useful tilt, field coverage, and relevant operating distances.
• Optical settings: focus and acquisition settings match the intended operating condition.
• Independent reference: its uncertainty and mechanical datum relationships are understood.
• Acceptance results: position, orientation, maximum observed error, and repeatability are recorded separately.
• Recovery procedure: the team knows which changes require verification or recalibration.

The next step is to specify your field width, working distance, target dimensions, and independent accuracy requirement. Use the camera configuration step to start selecting parts, or contact the applications team to review the proposed validation method before committing to hardware.
