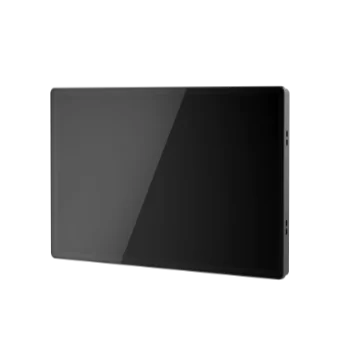

Hikrobot MV-VT3500-128G40-NN VT3000 TouchScreen PC, I5-8500T, 8GB+128G SSD
Model MV-VT3500-128G40-NNHikrobot
- ProcessorIntel® Core i5-8500T
- Memory8 GB
- Storage128 GB SSD + 2 TB HDD, 128 GB SSD
- NetworkGigE interface × 4
- Screen15.6 inches
- OSUnactivated Windows 10
$8,379.00
Ships in 2-3 weeks
6.82 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-VT3500-128G40-NN: CPU Intel® Core i5-8500T, memory 8 GB, network interface GigE interface x 4.
Hikrobot MV-VT3500-128G40-NN VT3000 TouchScreen PC, I5-8500T, 8GB+128G SSD. Adopts 8th generation Intel® CPU to offer strong performance. Supports 11-channel GPIO and easy to use.
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-VT3500-128G40-NN |
|---|---|
| Brand | Hikrobot |
| Backlight | LED |
| Backlight lifetime | 50000 hrs |
| Viewing angle | 89°(R) / 89°(L) / 89°(B) / 89°(T) |
| Contrast ratio | 1200:1 |
| Touch type | Multi-point capacitive touch screen |
| Multi-touch | Touch supports with 10 points under Windows operating system |
| Touch times | 35 million times |
| Transmittance | ≥ 87% |
| Surface hardness | ≥ 6 H |
Sensor and imaging
| Resolution | 1920 × 1080 |
|---|
Interfaces and I/O
| Display interface | HDMI interface × 1 (1920 × 1080) |
|---|---|
| Digital I/O | Digital-isolated input × 3; Opto-isolated output × 8 |
| Network interface | GigE interface × 4 |
| USB Interface | USB 3.0 × 4 |
| Serial Port | RS-232 × 4, supports switching to RS-485 and RS-422 |
| Video output | HDMI interface × 1 (1920 × 1080) |
| Display area | 344.16 mm × 193.59 mm |
Light
| Brightness | 500 cd/m2 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Core i5-8500T |
|---|---|
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD, 128 GB SSD |
| Operating system | Unactivated Windows 10 |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | Typ. 120 W |
Mechanical
| Screen Size | 15.6 inches |
|---|---|

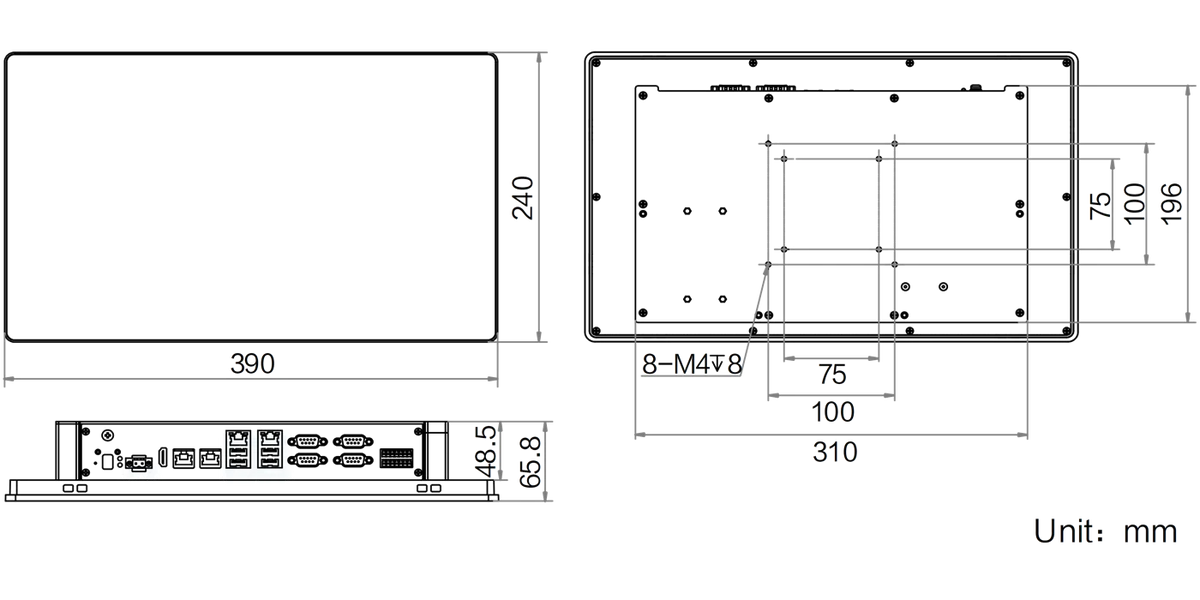

| Dimension | 390 mm × 240 mm × 65.8 mm (15.4" × 9.4" × 2.6") |
| Weight | Approx. 4.8 kg (10.6 lb.) |
| Shipping weight (estimated) | 6.82 kg |
Other models in the VT3000 series TouchScreen PC series
See all 8 models| Model | Size | Processor | Price | Availability | Link |
|---|---|---|---|---|---|
| MV-VT3500-128G40-NNThis model | I5-8500T, 8GB+128G SSD | Intel® Core i5-8500T | $8,379.00 Quote | Ships in 2-3 weeks | |
| MV-VT3100-128G40-2T | G4900T, 8GB+128G SSD | Intel® Celeron® G4900T | $6,519.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3100-128G40-NN | G4900T, 8GB+128G SSD | Intel® Celeron® G4900T | $8,379.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3300-128G40-NN | I3-8100T, 8GB+128G SSD | Intel® Core i3-8100T | $8,379.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3300-128G40-2T | I3-8100T, 8GB+128G SSD | Intel® Core i3-8100T | $8,379.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3700-128G40-NN | I7-8700T, 8GB+128G SSD | Intel® Core i7-8700T | $8,379.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3700-128G40-2T | I7-8700T, 8GB+128G SSD | Intel® Core i7-8700T | $8,649.00 Quote | Ships in 2-3 weeks | View |
| MV-VT3500-128G40-2T | I5-8500T, 8GB+128G SSD | Intel® Core i5-8500T | $9,999.00 Quote | Ships in 2-3 weeks | View |
