Hikrobot MV-VT2000-128G40-NN VT2000 Panel PC, J6412, 8GB+128G SSD
Model MV-VT2000-128G40-NNHikrobot
- ProcessorIntel® Celeron® CPU J6412
- Memory8 GB
- Storage128 GB SSD
- NetworkGigE interface × 4
- Screen10.1 inches
- OSUnactivated Windows 10 2021H2
$1,719.00
Ships in 2-3 weeks
2.9 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-VT2000-128G40-NN VT2000 Panel PC, J6412, 8GB+128G SSD. Adopts Intel® Celeron® CPU J series to offer strong performance. Supports multi-channel IO and easy to use.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-VT2000-128G40-NN |
|---|---|
| Brand | Hikrobot |
| Backlight | LED |
| Backlight lifetime | ≥ 30000 hrs |
| Viewing angle | 85°(R)/ 85°(L)/ 85°(B)/ 85°(T) |
| Contrast ratio | 800:1 |
| Touch type | Multi-point capacitive touch screen |
| Multi-touch | Touch supports with 10 points under Windows operating system |
| Touch times | ≥ 35 million times |
| Transmittance | ≥ 85% |
| Surface hardness | 6 H |
Sensor and imaging
| Resolution | 1280 × 800 |
|---|
Interfaces and I/O
| Display interface | HDMI interface × 1 (1920 × 1080 @ 60 Hz) |
|---|---|
| Digital I/O | Supports up to opto-isolated input × 7 and opto-isolated output × 7 |
| Network interface | GigE interface × 4 |
| USB Interface | USB 3.0 × 2; USB 2.0 × 2 |
| Serial Port | RS-232 × 2, supports switching to RS-485 and RS-422. |
Light
| Brightness | 350 cd/m2 (TYP) |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) (wind speed 0.7 m/s); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Celeron® CPU J6412 |
|---|---|
| Memory | 8 GB |
| Storage | 128 GB SSD |
| Operating system | Unactivated Windows 10 2021H2 |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | Typ. 30 W |
Mechanical
| Screen Size | 10.1 inches |
|---|---|
| Dimension | 255 mm × 170 mm × 63 mm (10.0" × 6.7" × 2.5") |
| Weight | Approx. 2 kg (10.6 lb.) |
| Shipping weight (estimated) | 2.90 kg |
Other models in the VT2000 series TouchScreen PC series
See the category| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|

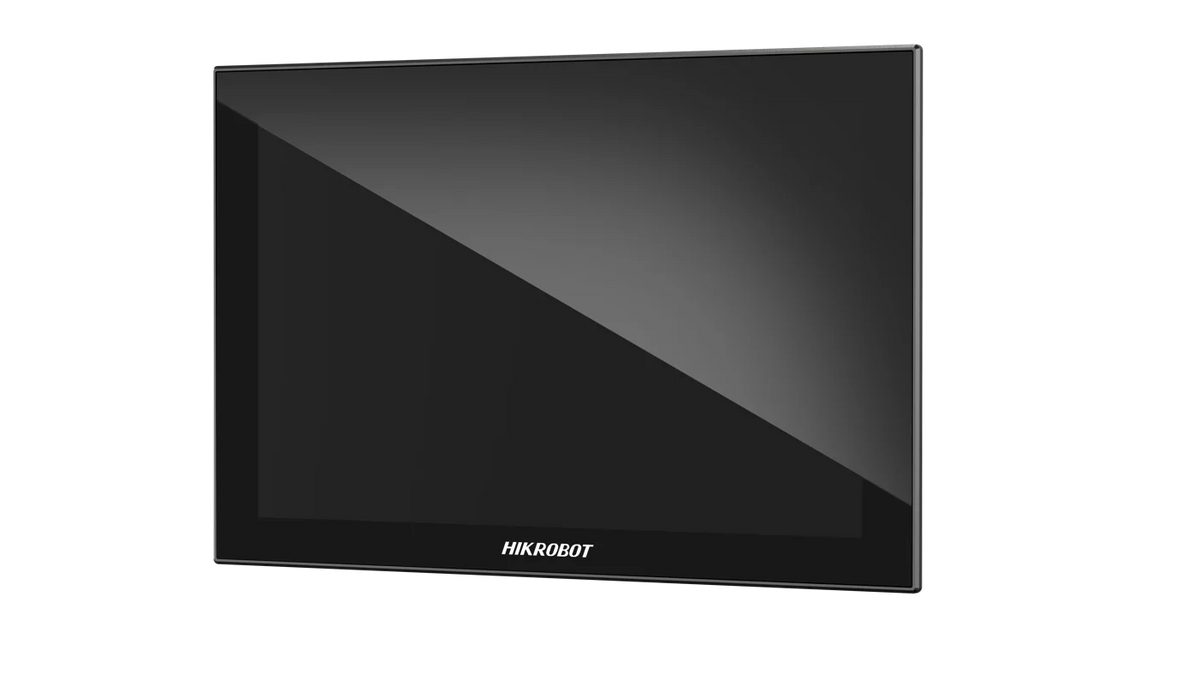

| MV-VT2000-128G40-2T | J6412, 8GB+128G SSD+2T HDD | $2,079.00 | 4 in stock | View |
