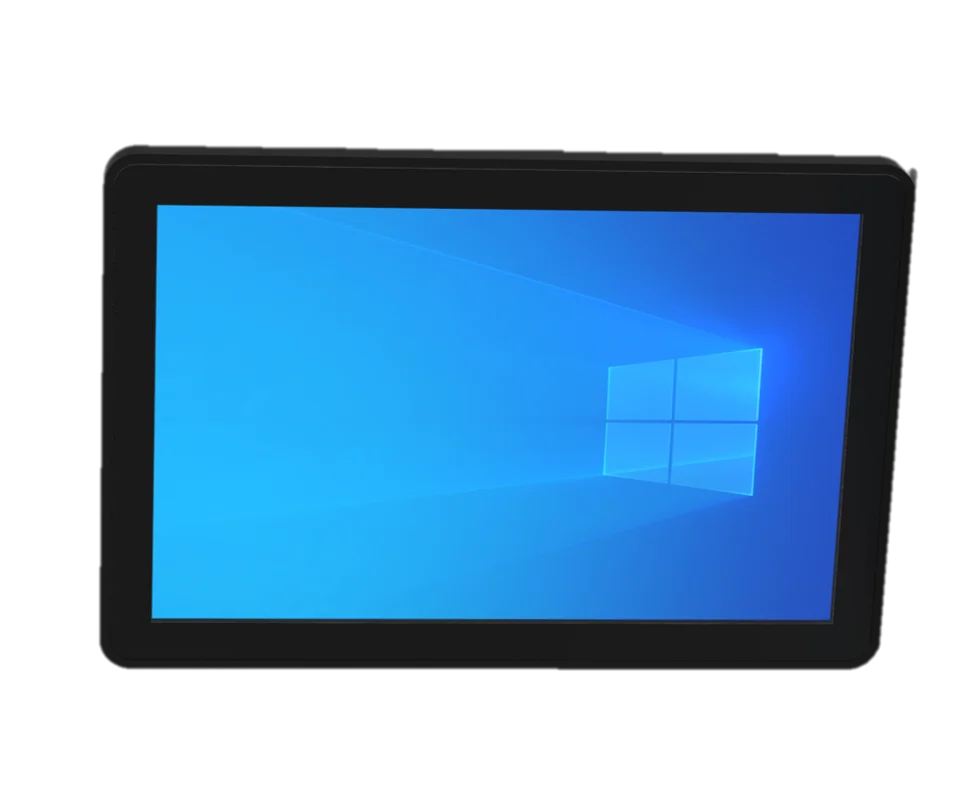

Hikrobot MV-VT1010C-4G-128G-121-X VT1010C all-in-one, 4 GB RAM, 128 GB storage, 1× Gigabit Ethernet port
  • Hikrobot MV-VT1010C-4G-128G-121-X VT1010C all-in-one, 4 GB RAM, 128 GB storage, 1× Gigabit Ethernet port

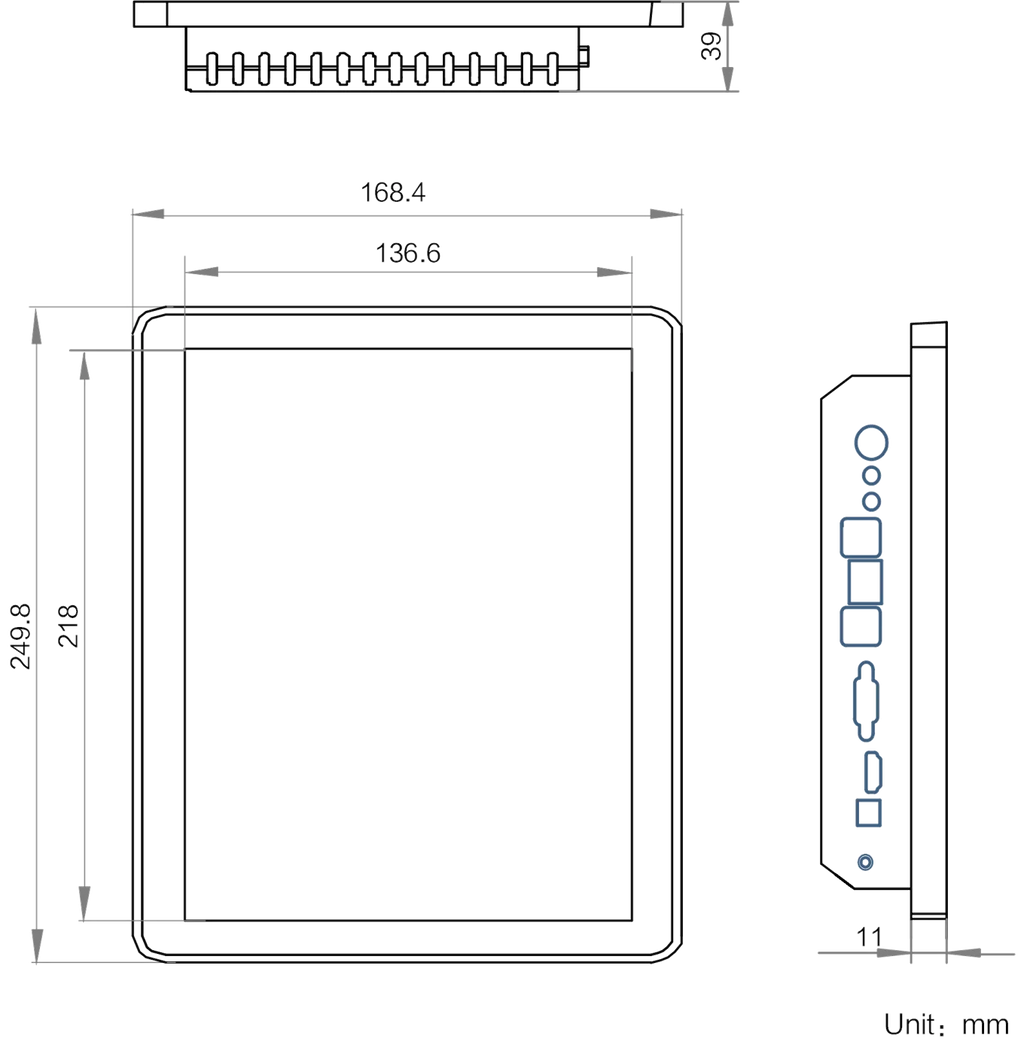

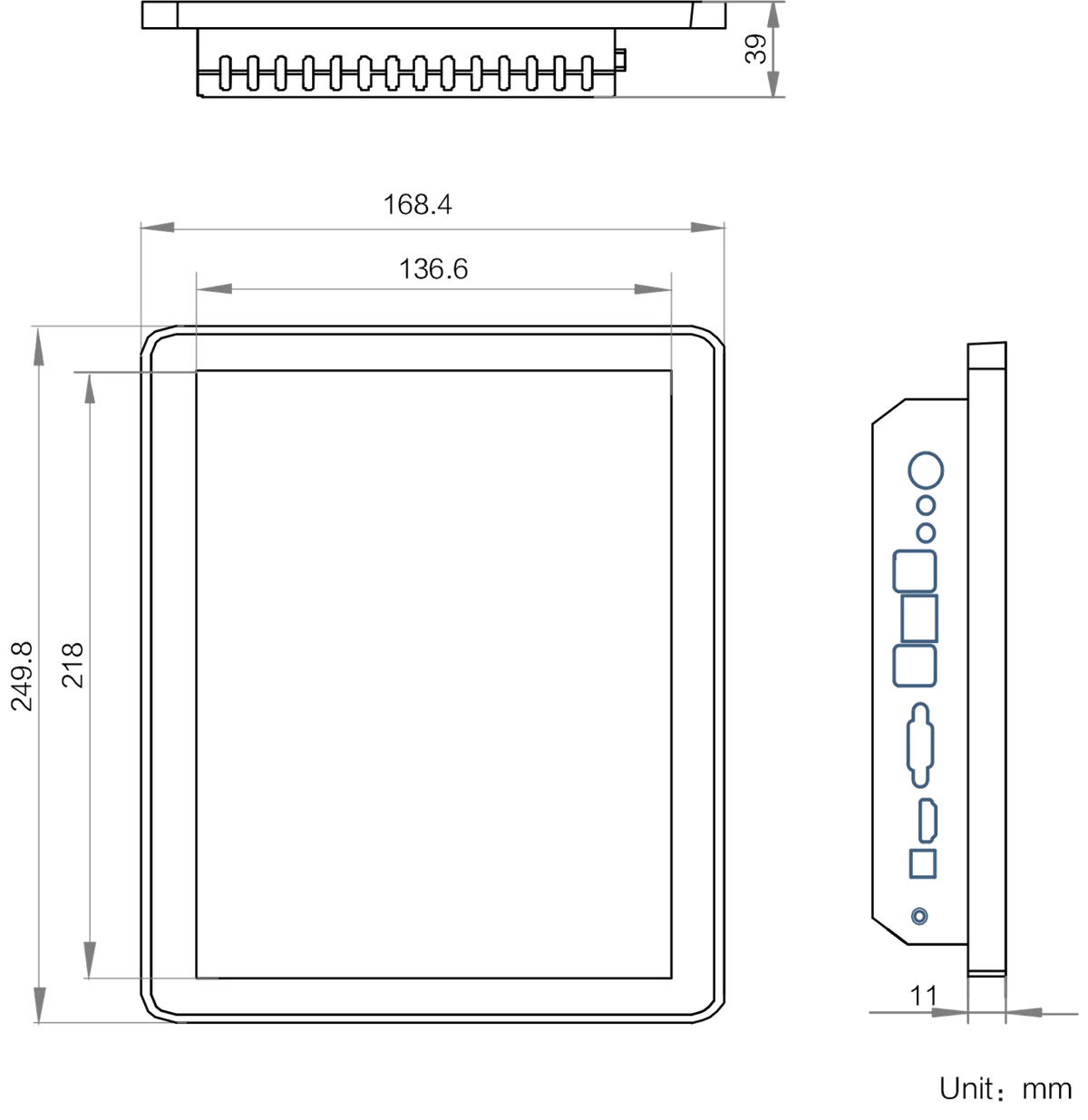

  • MV-VT1010C-4G-128G-121-X dimensions (mm)

Panel PCs

Hikrobot MV-VT1010C-4G-128G-121-X VT1010C all-in-one, 4 GB RAM, 128 GB storage, 1× Gigabit Ethernet port

Model MV-VT1010C-4G-128G-121-XHikrobot

  • ProcessorIntel Jasper Lake N5095
  • Memory4 GB
  • Storage128 G
  • Network1× Gigabit Ethernet ports
  • Screen10.1 inches
  • OSWindows 10 (default), Not activated
$2,079.00
List price

Ships in 2-3 weeks

1.99 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Panel PCs

lumaspecvision.com/products/lumaspec-mv-vt1010c-4g-128g-121-x

Next to the 8 GB version of this panel PC, MV-VT1010C-4G-128G-121-X has 4 GB of memory: for lighter jobs.

MV-VT1010C-4G-128G-121-X: CPU Intel Jasper Lake N5095, memory 4 GB, storage 128 G.

Hikrobot MV-VT1010C-4G-128G-121-X VT1010C all-in-one, 4 GB RAM, 128 GB storage, 1× Gigabit Ethernet port.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Specifications

General

ModelMV-VT1010C-4G-128G-121-X
BrandHikrobot
BacklightLED
Backlight lifetime25000 hrs
Viewing angle85°(R)/ 85°(L)/ 85°(B)/ 85°(T)
Contrast ratio1000:1
Touch type10-point capacitive touchscreen
Touch times5000 × 10⁴ cycles
Transmittance≥81%
Surface hardness6 H

Sensor and imaging

Resolution1280 × 800

Interfaces and I/O

Display interface1× HDMI port
Network interface1× Gigabit Ethernet ports
USB Interface2× USB 3.0 ports, 2× USB 2.0 ports
Serial Port1× RS-232 serial port, Switchable to RS-485
Audio interface2× 3.5 mm audio jack, Line-out + Mic-in supported
Extended interface1× M.2 2230 slot, Expandable with Wi-Fi and Bluetooth modules

Light

Brightness300 cd/m2

Environment and compliance

TemperatureOperating temperature: 0 to 50 °C, Storage temp.: -20 to 60 °C
HumidityOperating humidity: 10% to 90% RH (non-condensing), Storage humidity: 5% to 95% RH (non-condensing)

Computing

CPUIntel Jasper Lake N5095
Memory4 GB
Storage128 G
Operating systemWindows 10 (default), Not activated

Electrical

Power supply12 V DC
Power consumption16.2 W

Mechanical

Screen Size10.1 inches
Dimension249.83 mm × 168.43 mm × 38.95 mm
Weight1.35 kg
Shipping weight (estimated)1.99 kg

Engineering data

The MV-VT1010C-4G-128G-121-X at a glance

Brightness300 cd/m2
Network1 × Gigabit Ethernet ports

Compatible parts

Fits with this part

Checked with the configurator's fit rules: lens mount, image circle, resolution and spectral band; supply voltage and power per channel; the camera's printed connector for cables.

Build the full system with this part

Translation missing: en.ls.product.fits.group_pc_cameras

Translation missing: en.ls.product.fits.why_pcport

Translation missing: en.ls.product.fits.why_pcport

Translation missing: en.ls.product.fits.why_pcport1

Translation missing: en.ls.product.fits.why_pcport1

Translation missing: en.ls.product.fits.why_pcport1

Translation missing: en.ls.product.fits.why_pcport1

Before you buy

Questions about the MV-VT1010C-4G-128G-121-X

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

What can the MV-VT1010C-4G-128G-121-X connect to?

The network interface is 1× Gigabit Ethernet ports. The USB interface is 2× USB 3.0 ports, 2× USB 2.0 ports. The serial port is 1× RS-232 serial port, Switchable to RS-485.

What comes installed in the MV-VT1010C-4G-128G-121-X?

The operating system is Windows 10 (default), Not activated.

What power supply does the MV-VT1010C-4G-128G-121-X need?

It runs on 12 V DC and draws 16.2 W.

What temperature range is the MV-VT1010C-4G-128G-121-X rated for?

Its temperature ratings are operating temperature 0 to 50 °C, storage temp. -20 to 60 °C.

Other models in the VT1010C all-in-one vision PC series

See the category

How this model compares

ModelMemoryPriceAvailabilityLink
MV-VT1010C-4G-128G-121-XThis model4 GB$2,079.00 Quote Ships in 2-3 weeks
MV-VT1010C-8G-128G-121-X8 GB$2,079.00 Quote Ships in 2-3 weeks View
