Hikrobot MV-VCC3102X-128G60 VCC3000X vision controller, G6900, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported (configuration order required)
Model MV-VCC3102X-128G60Hikrobot
- ProcessorIntel® Celeron® G6900
- Memory8 GB
- GPUIntel® HD Graphics 710
- OSUnactivated Windows 10
$2,079.00
Ships in 2-3 weeks
3.04 kg shipping weight
Not available in the United States. Available for delivery to other countries.
MV-VCC3102X-128G60: CPU Intel® Celeron® G6900, memory 8 GB, GPU Intel® HD Graphics 710, power consumption 144 W.
Hikrobot MV-VCC3102X-128G60 VCC3000X vision controller, G6900, 8GB+128G SSD+2T HDD, No PoE, PCIe expansion supported. Desktop-class Intel Gen 12 CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Certifications (as printed)CEKC
Specifications
General
| Model | MV-VCC3102X-128G60 |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | 1× HDMI port, 1× VGA port; Simultaneous independent display output supported; HDMI: up to 1920 × 1080 @ 60Hz, VGA: up to 1920 × 1440 @ 60Hz |
|---|---|
| Digital I/O | 8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable) |
| Network interface | 6× Gigabit Ethernet ports, 2 × Intel Gigabit Ethernet ports and 4 × WangXun Gigabit Ethernet ports |
| USB Interface | 4× USB 2.0 ports; 4× USB 3.0 ports |
| Serial Port | 2× full-function RS-232, RS-485/RS-422 switchable |
| Light interface | 4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 80 W |
Environment and compliance
| Temperature | 0 to 50 °C |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Celeron® G6900 |
|---|---|
| Memory | 8 GB |
| Storage | 128 GB SSD + 2 TB HDD, 1× mSATA expansion slot |
| GPU | Intel® HD Graphics 710 |
| Operating system | Unactivated Windows 10 |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 144 W |
Mechanical

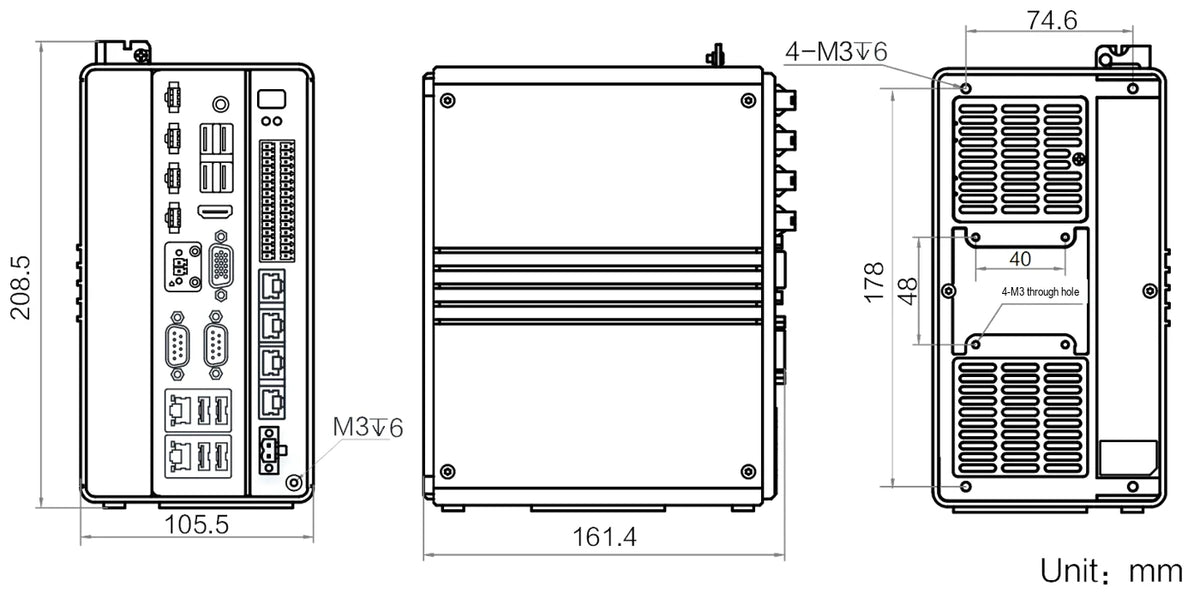

| Dimension | 161.4 mm × 208.5 mm × 105.5 mm |
|---|---|
| Weight | Approx. 2.1 kg |
| Shipping weight (estimated) | 3.04 kg |
Engineering data
The MV-VCC3102X-128G60 at a glance
The numbers that set this model apart, taken from its own printed specifications.
CPUIntel Celeron G6900
Memory8 GB
GPUIntel HD Graphics 710
Network6 × Gigabit Ethernet ports
Light outputs4 × 24 V DCconstant voltage; max. 72 W per channel
Digital I/O8 in / 16 outisolated
Other models in the VC3000 series Vision Controller series
See all 113 models| Model | Processor | Memory | GPU | Price | Availability | Link |
|---|---|---|---|---|---|---|
| MV-VCC3102X-128G60This model | Intel® Celeron® G6900 | 8 GB | Intel® HD Graphics 710 | $2,079.00 | Ships in 2-3 weeks | |
| MV-VCC3101H-128G60 | Intel® Celeron® G4900 | 8 GB | Intel® HD Graphics 610 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3304H-128G60 | Intel® Core i3-8100 | 8 GB×2 | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3301H-128G60 | Intel® Core i3-8100 | 8 GB | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3501H-128G60 | Intel® Core i5-8500 | 8 GB | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3504H-128G60 | Intel® Core i5-8500 | 8 GB×2 | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3701H-128G60 | Intel® Core i7-8700 | 8 GB | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3704H-128G60 | Intel® Core i7-8700 | 8 GB×2 | Intel® HD Graphics 630 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3202H-128G60 | Intel® Pentium® G5400 | 8 GB | Intel® HD Graphics 610 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3201H-128G60 | Intel® Pentium® G5400 | 8 GB | Intel® HD Graphics 610 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3101X-128G60 | Intel® Celeron® G6900 | 8 GB | Intel® HD Graphics 710 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3202X-128G60 | Intel® Pentium® G7400 | 8 GB | Intel® HD Graphics 710 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3201X-128G60 | Intel® Pentium® G7400 | 8 GB | Intel® HD Graphics 710 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3303X-128G60 | Intel® Core i3-12100 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3301X-128G60 | Intel® Core i3-12100 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3302X-128G60 | Intel® Core i3-12100 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3304X-128G60 | Intel® Core i3-12100 | 8 GB×2 | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3501X-128G60 | Intel® Core i5-12400 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3503X-128G60 | Intel® Core i5-12400 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3504X-128G60 | Intel® Core i5-12400 | 8 GB×2 | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3502X-128G60 | Intel® Core i5-12400 | 8 GB | Intel® HD Graphics 730 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3703X-128G60 | Intel® Core i7-12700 | 8 GB | Intel® HD Graphics 770 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3704X-128G60 | Intel® Core i7-12700 | 8 GB×2 | Intel® HD Graphics 770 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3702X-128G60 | Intel® Core i7-12700 | 8 GB | Intel® HD Graphics 770 | $2,079.00 | Ships in 2-3 weeks | View |
| MV-VCC3701X-128G60 | Intel® Core i7-12700 | 8 GB | Intel® HD Graphics 770 | $2,079.00 | Ships in 2-3 weeks | View |
