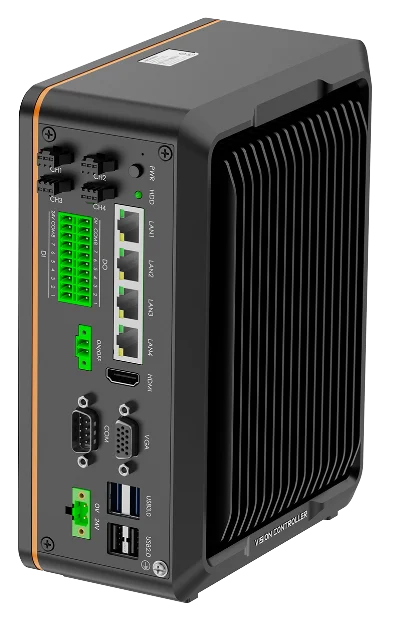

Hikrobot MV-VCB2240-128G46-NN VCB2200 vision controller, N97, 8GB+128G SSD
Model MV-VCB2240-128G46-NNHikrobot
- ProcessorIntel® Processor N97
- Memory8GB
- Storage128G SSD
- NetworkGigE interface × 4
- GPUIntel® UHD Graphics
Ships in 2-3 weeks
2.9 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Ask an engineerBrowse Vision controllers
lumaspecvision.com/products/lumaspec-mv-vcb2240-128g46-nn
For lighter jobs: MV-VCB2240-128G46-NN, the 165 x 206 mm-housing version, has 8 GB of memory, smaller memory than the 16 GB version.
MV-VCB2240-128G46-NN: CPU Intel® Processor N97, memory 8 GB, storage 128G SSD, GPU Intel® UHD Graphics, network interface GigE interface x 4.
Hikrobot MV-VCB2240-128G46-NN VCB2200 vision controller, N97, 8GB+128G SSD. New Intel Alder Lake-N platform processor for powerful computing performance GPIO support.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Certifications (as printed)CEKC
Specifications
General
| Model | MV-VCB2240-128G46-NN |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | 1× HDMI port, 1 × VGA port; Simultaneous independent display output supported; Up to 1920 × 1080 @ 60Hz |
|---|---|
| Digital I/O | 8 opto-isolated inputs; 8 opto-isolated outputs |
| Light interface | 4× 24 V constant-voltage light ports, Adjustable brightness, Max current per channel: 3 A, Max total power: 80 W; Switchable external-trigger strobe and continuous modes |
| Network interface | GigE interface × 4 |
| USB Interface | 2× USB2.0 port; 2× USB3.0 port |
| Serial Port | 1× RS-232, switchable to RS-485/RS-422 |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 20% RH to 80% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel® Processor N97 |
|---|---|
| Memory | 8GB |
| Storage | 128G SSD |
| GPU | Intel® UHD Graphics |
| Operating system | Windows 10 LTSC 21H2 64-bit, Not activated |
| Encryption method | Includes VM6200SE encryption dongle |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | 51 W (without light) |
Mechanical

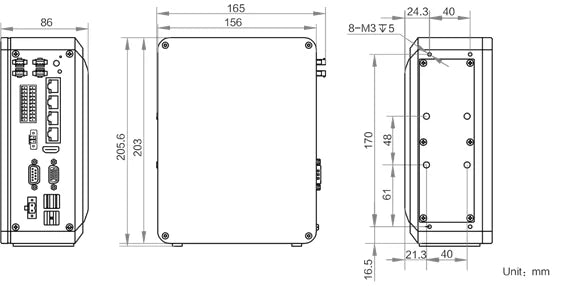

| Dimension | 165 mm × 205.6 mm × 86 mm |
|---|---|
| Weight | Approx. 2 kg (4.4 lb.) |
| Shipping weight (estimated) | 2.90 kg |
Engineering data
The MV-VCB2240-128G46-NN at a glance
Before you buy
Questions about the MV-VCB2240-128G46-NN
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What can the MV-VCB2240-128G46-NN connect to?
Printed: Video output: 1× HDMI port, 1 × VGA port; Simultaneous independent display output supported; Up to 1920 × 1080 @ 60Hz; Digital I/O: 8 opto-isolated inputs; 8 opto-isolated outputs; Network interface: GigE interface × 4; USB Interface: 2× USB2.0 port; 2× USB3.0 port.
Can the MV-VCB2240-128G46-NN drive lights directly?
Yes, as printed: Light interface: 4× 24 V constant-voltage light ports, Adjustable brightness, Max current per channel: 3 A, Max total power: 80 W; Switchable external-trigger strobe and continuous modes.
What comes installed in the MV-VCB2240-128G46-NN?
Printed: Operating system: Windows 10 LTSC 21H2 64-bit, Not activated.
What power supply does the MV-VCB2240-128G46-NN need?
Printed: Power supply: 24 VDC; Power consumption: 51 W (without light).
What temperature range is the MV-VCB2240-128G46-NN rated for?
Printed: Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F).
Learn
Guides for this part
Engineering guides picked for the MV-VCB2240-128G46-NN: how to choose it, set it up and get a better image.
Other models in the VC2000 series Vision Controller series
See all 27 modelsHow this model compares
- Compared with MV-VCB2140-128G40-1T: dimension 165 mm × 205.6 mm × 86 mm here, 166 mm × 205.6 mm × 86 mm there.
Swipe to see all columns
| Model | Memory | Storage | Encryption method | Power consumption | Price | Availability | Link |
|---|---|---|---|---|---|---|---|
| MV-VC2140-128G46-NN | 8GB | 128G SSD | Includes VM6200pro encryption | Typ. 51 W (without light source) | $1,499.00 | Ships in 2-3 weeks | View |
| MV-VC2143-128G46-NN | 8GB | 128G SSD | Includes VM6200pro encryption | Typ. 71 W (without light source) | $1,499.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G44-NN | 8GB | 128G SSD | Includes VM4200 license key | Typ. 51 W (without light source) | $1,499.00 | Ships in 2-3 weeks | View |
| MV-VC2141-128G40-NN | 16GB | 128G SSD | Typ. 51 W (without light source) | $1,569.00 | Ships in 2-3 weeks | View | |
| MV-VC2141-256G40-NN | 16GB | 256G SSD | Typ. 51 W (without light source) | $1,609.00 | Ships in 2-3 weeks | View | |
| MV-VC2140-128G46-1T | 8GB | 128 GB SSD + 1 TB HDD | Includes VM6200pro encryption | Typ. 51 W (without light source) | $1,679.00 | Ships in 2-3 weeks | View |
| MV-VC2140-128G44-1T | 8GB | 128 GB SSD + 1 TB HDD | Includes VM4200 license key | Typ. 51 W (without light source) | $1,679.00 | Ships in 2-3 weeks | View |
| MV-VCB2140-128G40-NN | 8GB | 128G SSD | Typ. 51 W (without light source) | $2,079.00 | Ships in 2-3 weeks | View | |
| MV-VCB2240-128G46-NNThis model | 8GB | 128G SSD | Includes VM6200SE encryption dongle | 51 W (without light) | $2,079.00 | Ships in 2-3 weeks |
