Vision controllers

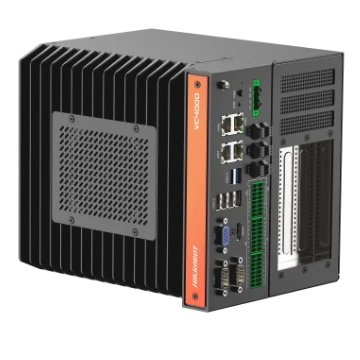

Hikrobot MV-VC4912-256G16-2TH Ultra 9 285H, 16G×2+256GSSD+2THDD, With PCIe expansion, VM6200pro license key

Model MV-VC4912-256G16-2THHikrobot

ProcessorIntel® Core Ultra 9 processor 285H
GPUIntel® Arc 140T GPU
OSWindows 11 64-bit (not activated)
LAN ports4

$7,329.00

List price

Ships in 2-3 weeks

7.8 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Vision controllers

MV-VC4912-256G16-2TH: CPU Intel® Core Ultra 9 processor 285H, GPU Intel® Arc 140T GPU, power consumption 220 W (excluding light).

Hikrobot MV-VC4912-256G16-2TH Ultra 9 285H, 16G×2+256GSSD+2THDD, With PCIe expansion, VM6200pro license key. High-performance Intel Core Ultra Series 2 (Arrow Lake-H) processor 2 DDR5 non-ECC SO-DIMM memory slots

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-VC4912-256G16-2TH
Brand	Hikrobot

Interfaces and I/O

Video output	Independent dual display supported; 1× HDMI port, Up to 1920 × 1080 @ 60 Hz; 1× VGA port, Up to 1920 × 1080 @ 60 Hz
Digital I/O	18 digital isolated inputs supported; 18 isolated digital outputs
Network interface	4× Gigabit Ethernet ports; PoE power supported, 15 W per port, 25 W total across 4 ports
USB Interface	4× USB 2.0 ports; 2× USB 3.0 ports; 1 × internal USB2.0 port
Serial Port	2 × configurable RS-232/RS-422/RS-485
Light interface	SMR-03V-BC female; 6-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 110 W
Extended interface	1× PCIe 4.0 x8 slot, 2× PCIe 4.0 x4 slot

Environment and compliance

Temperature	Operating temperature: 0°C to 50°C; Storage temperature: -30°C to 70°C
Humidity	20% to 80% RH (non-condensing)
Certification	CE, KC

Computing

CPU	Intel® Core Ultra 9 processor 285H
Memory	2 × DDR5 6400 MHz non-ECC SO-DIMM memory slots; Up to 48 GB per slot, Up to 96 GB with two slots
Storage	1 × 7-pin SATA3.0, 1 × M.2 SATA 2280, 1 × M.2 NVMe 2280; 1 × 2.5”/3.5” drive bay
GPU	Intel® Arc 140T GPU
Operating system	Windows 11 64-bit (not activated)
Encryption method	MV-VC49-6-: VM6200pro encryption supported; MV-VC49-0-: encryption not supported

Electrical

Power supply	24 VDC
Power consumption	220 W (excluding light)

Mechanical

Dimension	171.4 mm × 228.3 mm × 200.0 mm
Weight	Approx. 5.5 kg
Shipping weight (estimated)	7.80 kg

Downloads

Features

High-performance Intel Core Ultra Series 2 (Arrow Lake-H) processor
2 DDR5 non-ECC SO-DIMM memory slots
Expansion slots: 1 × PCIe 4.0 x8, 2 × PCIe 4.0 x4
4 Intel Ethernet ports, 2 USB3.0 ports, 2 serial ports
HDMI + VGA display outputs with independent dual displays
Supports Windows 11
Wall-mountable to save space

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-VC4912-256G16-2TH at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPUIntel Core Ultra 9 285H

GPUIntel Arc 140T GPU

Network4 × Gigabit Ethernet ports

Light outputs6 × 24 V DCconstant voltage; max. 72 W per channel

Digital I/O18 in / 18 outisolated

Power supply24 V DC

Other models in the VC4000 Series Vision Controller series

See all 6 models

Model	Processor	GPU	Price	Availability	Link
MV-VC4912-256G16-2THThis model	Intel® Core Ultra 9 processor 285H	Intel® Arc 140T GPU	$7,329.00 Quote	Ships in 2-3 weeks	Compare
MV-VC4712-256G16-2TH	Intel® Core Ultra 7 processor 255H	Intel® Arc 140T GPU	$6,049.00 Quote	Ships in 2-3 weeks	CompareView
MV-VC4512-256G16-2TH	Intel® Core Ultra 5 processor 225H	Intel® Arc 130T GPU	$4,979.00 Quote	Ships in 2-3 weeks	CompareView
MV-VC4512-256G10-2TH	Intel® Core Ultra 5 processor 225H	Intel® Arc 130T GPU	$4,979.00 Quote	Ships in 2-3 weeks	CompareView
MV-VC4712-256G10-2TH	Intel® Core Ultra 7 processor 255H	Intel® Arc 140T GPU	$6,049.00 Quote	Ships in 2-3 weeks	CompareView
MV-VC4912-256G10-2TH	Intel® Core Ultra 9 processor 285H	Intel® Arc 140T GPU	$7,329.00 Quote	Ships in 2-3 weeks	CompareView
