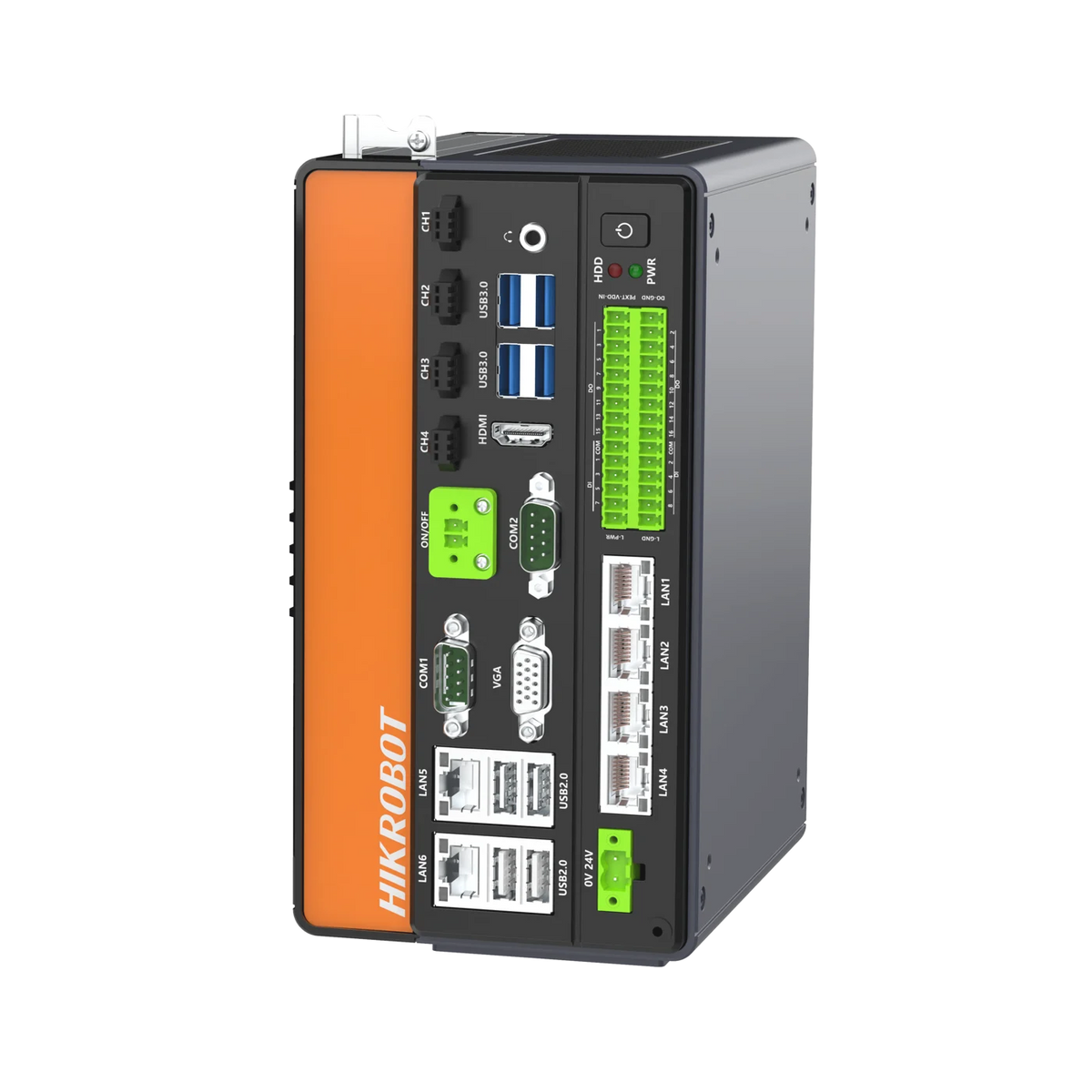

Hikrobot MV-VH5706T-256G80 I5-8500, 16GB+128G SSD+2T HDD

Vision controllers

Hikrobot MV-VC3506H-128G60 I5-8500, 2*8GB+128GSSD, Light voltage control ×4, POE x 4, VM license not included

Model MV-VC3506H-128G60Hikrobot

ProcessorIntel® CoreTM i5-8500
Memory8 GB×2
Storage128 GB SSD + 2 TB HDD, 128 GB SSD
GPUIntel® HD Graphics 630
OSWindows 10 64-bit, Not activated

$2,319.00

Ships in 2-3 weeks

3.04 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-VC3506H-128G60 I5-8500, 2*8GB+128GSSD, Light voltage control ×4, POE x 4, VM license not included. Desktop-class 8th-gen Intel CPU for powerful computing performance Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-VC3506H-128G60
Brand	Hikrobot

Interfaces and I/O

Video output	HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz
Digital I/O	8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Network interface	6× Gigabit Ethernet ports, The 4 GigE ports between the I/O and power connectors support PoE1
USB Interface	USB 2.0 × 4; USB 3.0 × 4; Built-in USB 2.0 × 1
Serial Port	2× full-function RS-232, RS-485/RS-422 switchable
Light interface	4-channel 24 V constant-voltage light drive, Max. power per channel: 72 W, Max. power (4 channels): 150 W
Extended interface	1× PCIe 3.0 x16 slot

Environment and compliance

Temperature	0 ~ 50 °C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Computing

CPU	Intel® CoreTM i5-8500
Memory	8 GB×2
Storage	128 GB SSD + 2 TB HDD, 128 GB SSD
GPU	Intel® HD Graphics 630
Operating system	Windows 10 64-bit, Not activated

Electrical

Power supply	24 VDC
Power consumption	144 W

Mechanical

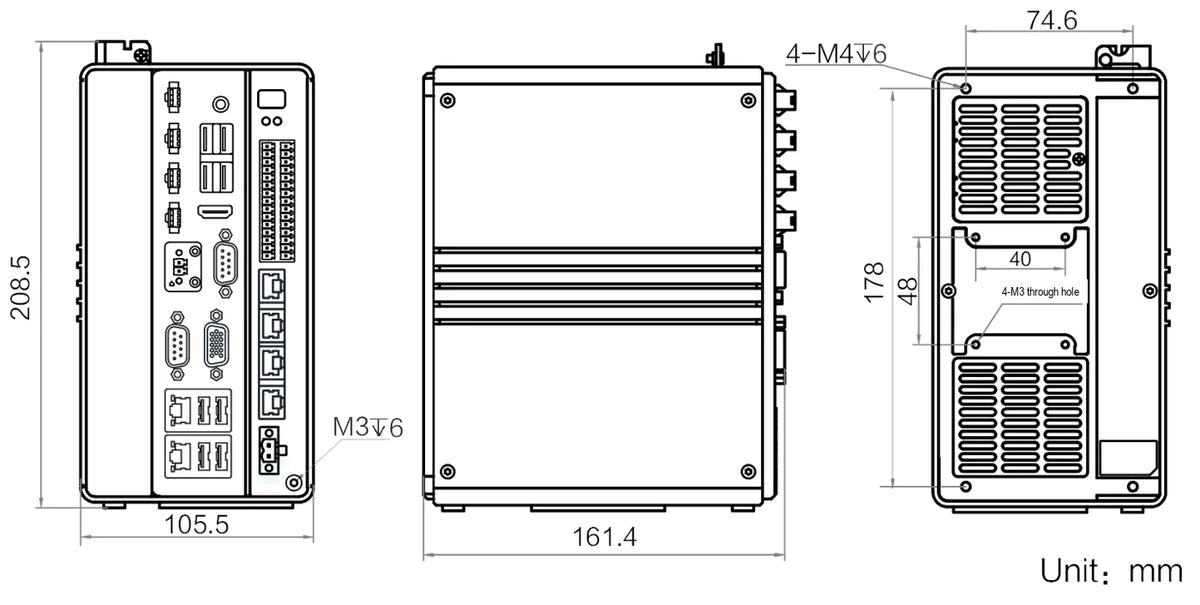

Dimension	161.4 mm × 208.5 mm × 105.5 mm
Weight	Approx. 2.1 kg
Shipping weight (estimated)	3.04 kg

Downloads

Features

Desktop-class 8th-gen Intel CPU for powerful computing performance
Extensive expansion slots for common machine-vision image acquisition interfaces, with stable performance
GPIO support; outputs switchable between NPN and PNP
PCIe 3.0 x16 interface
Optional built-in USB port for easy on-site deployment and maintenance

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.
