Vision controllers

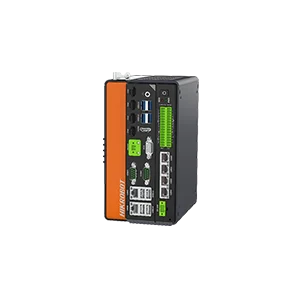

Hikrobot MV-VC3301X-128G60 VC3000X Vision Controller, 12th-I3, 8GB+128G SSD, Unsupported POE&PCI-E
Model MV-VC3301X-128G60Hikrobot
- Memory8 GB
- Storage128 GB SSD
- GPUIntel® HD Graphics 730
- OSUnactivated 64-bit Windows 10
$2,319.00
Ships in 2-3 weeks
3.04 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-VC3301X-128G60 VC3000X Vision Controller, 12th-I3, 8GB+128G SSD, Unsupported POE&PCI-E. Adopts 12th generation Intel® CPU to offer strong performance. Provides extended slot to connect with image frame grabbers.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-VC3301X-128G60 |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Video output | HDMI interface × 1, VGA interface × 1; Supports independent display outputs at the same time; Max. resolution 1920 × 1080 @ 60 Hz (HDMI interface); Max. resolution 1920 × 1440 @ 60 Hz (VGA interface) |
|---|---|
| Digital I/O | Opto-isolated input × 8; Opto-isolated output × 16 (supports NPN/PNP switching) |
| Network interface | GigE interface × 6, including Intel® GigE interface × 2, Netswift GigE interface × 4 |
| USB Interface | USB 2.0 × 4; USB 3.0 × 4 |
| Serial Port | RS-232 × 2, supports switching to RS-485 and RS-422 |
| Light interface | 24 VDC constant voltage × 4; (Max. power consumption of single channel is 72 W, total max. power consumption 80 W.) |
Environment and compliance
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Computing
| CPU | Intel®@ Core 12th i3@ LGA1700 type CPU.Max.65W TDP |
|---|---|
| Memory | 8 GB |
| Storage | 128 GB SSD |
| GPU | Intel® HD Graphics 730 |
| Operating system | Unactivated 64-bit Windows 10 |
Electrical
| Power supply | 24 VDC |
|---|---|
| Power consumption | Typ. 144 W |
Mechanical

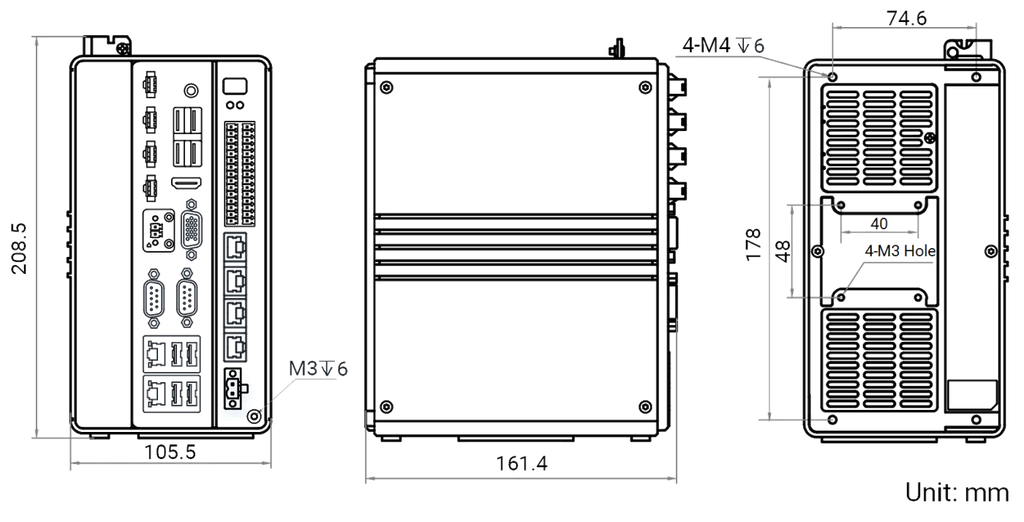

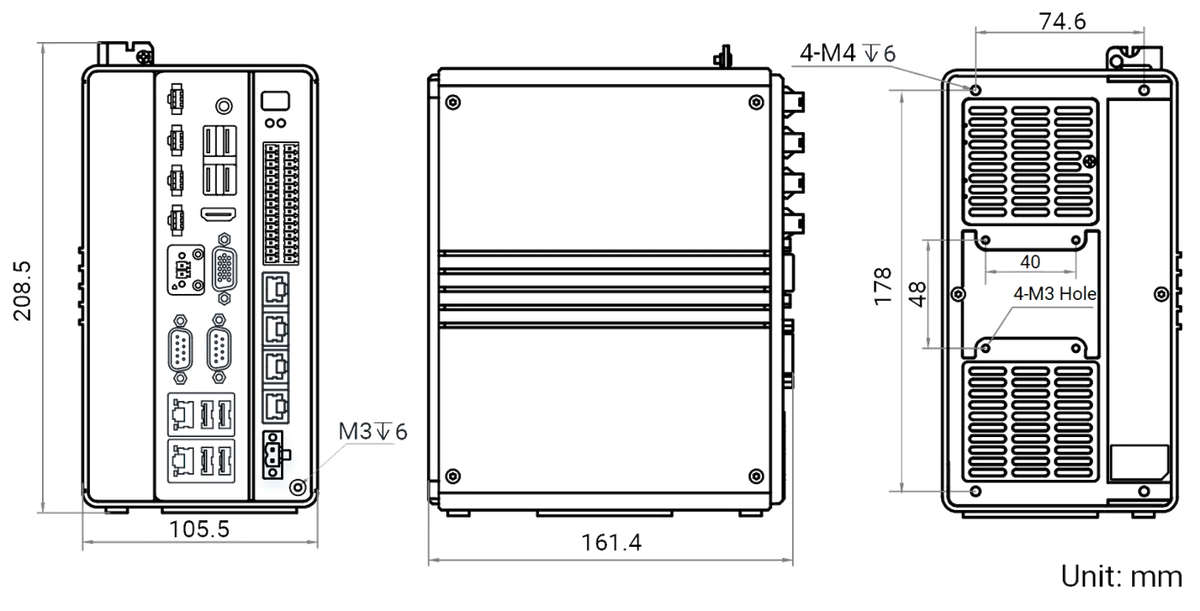

| Dimension | 161.4 mm × 208.5 mm × 105.5 mm (6.4" × 8.2" × 4.2") |
|---|---|
| Weight | Approx. 2.1 kg (4.6 lb.) |
| Shipping weight (estimated) | 3.04 kg |
