Vision controllers

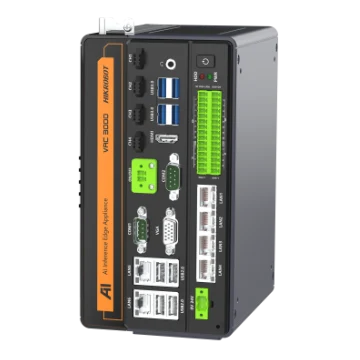

Hikrobot MV-VAC3704H-128G01 AI inference terminal 3704H single card

Model MV-VAC3704H-128G01Hikrobot

Network6× Gigabit Ethernet ports
LAN ports6
USB 3 ports4
Power supply24 V DC

$3,709.00

List price

Ships in 2-3 weeks

3.18 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Vision controllers

Hikrobot MV-VAC3704H-128G01 AI inference terminal 3704H single card. Desktop-class Intel® CPU for powerful multithreaded parallel computing. Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-VAC3704H-128G01
Brand	Hikrobot
Task types	Supports all VM traditional algorithms; Supports all VM edge-learning (CPU); Supports deep learning GPU and CPU modules
AI parallel processing	Parallel processing of multiple AI inference tasks, but no parallel acceleration
AI capabilities	Object detection, Character location, Character recognition, Single-character detection, Image classification, Instance segmentation, Image segmentation/fast image segmentation, Unsupervised segmentation, etc.

Interfaces and I/O

Network interface	6× Gigabit Ethernet ports
USB Interface	4 × external USB2.0 ports, 4× USB 3.0 ports; Built-in 1× USB 2.0 port
Light interface	4-channel 24 V constant-voltage light driver (separate power required), Max. power per channel: 72 W, Max. power, 4 cards: 80 W
Serial Port	2 × RS-232 by default, Configurable as RS-485/RS-422
Digital I/O	8 digital isolated inputs supported; 16 opto-isolated outputs supported (NPN/PNP switchable)
Video output	HDMI interface × 1, VGA interface × 1; Supports independent display output at the same time; Max. resolution 1920 × 1080 @ 60 Hz

Environment and compliance

Temperature	0 to 45 °C
Humidity	20% RH to 95% RH (no condensation)
Certification	CE, KC

Computing

CPU	Intel® Core™ i7-8700 processor, 6 cores, 12 threads
Memory	2*8 GB, 2 × DDR4 SO-DIMM memory slots, Up to 16 GB per module, Up to 32 GB
Storage	128 GB M.2 SATA 2280 SSD; 2 TB 2.5-inch 5400 rpm HDD
GPU	AI inference card 1070D; Video memory: 8 GB GDDR4X; Power: 25 W; Compute: INT8/UINT8 TC: 70 TOPS

Electrical

Power supply	24 V DC
Power consumption	150 W

Mechanical

Installation method	Desktop or wall mounting
Dimension	161.4 mm × 208.5 mm × 105.5 mm
Weight	Approx. 2.2 kg
Shipping weight (estimated)	3.18 kg

Downloads

Features

Desktop-class Intel® CPU for powerful multithreaded parallel computing
Mid-to-high-performance, low-power inference GPU that works seamlessly with VM AI
Supports a variety of interfaces, including Ethernet, I/O, serial and light
Paired with full-featured VM software: extensive traditional VM algorithms, deep learning and edge learning

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-VAC3704H-128G01 at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPUIntel Core i7-87006 cores, 12 threads

Memory2*8 GB

GPUAI inference card 1070D

Network6 × Gigabit Ethernet ports

Light outputs4 × 24 V DCconstant voltage; max. 72 W per channel

Digital I/O8 in / 16 outisolated

Mounting and installation

Mounting	Wall · Desktop

As printed in this model's specifications and dimension drawing. Check the drawing in Downloads before you drill a fixture.

Other models in the VAC3000 Series AI Inference Terminal series

See all 4 models

Model	Size / key data	Price	Availability	Link
MV-VAC3704H-128G01This model	6× Gigabit Ethernet ports · 6	$3,709.00 Quote	Ships in 2-3 weeks	Compare
MV-VAC3504H-128G01	6× Gigabit Ethernet ports · 6	$3,709.00 Quote	Ships in 2-3 weeks	CompareView
MV-VAC3504X-128G01	6× Gigabit Ethernet ports · 6	$3,929.00 Quote	Ships in 2-3 weeks	CompareView
MV-VAC3704X-128G01	6× Gigabit Ethernet ports · 6	$3,929.00 Quote	Ships in 2-3 weeks	CompareView
