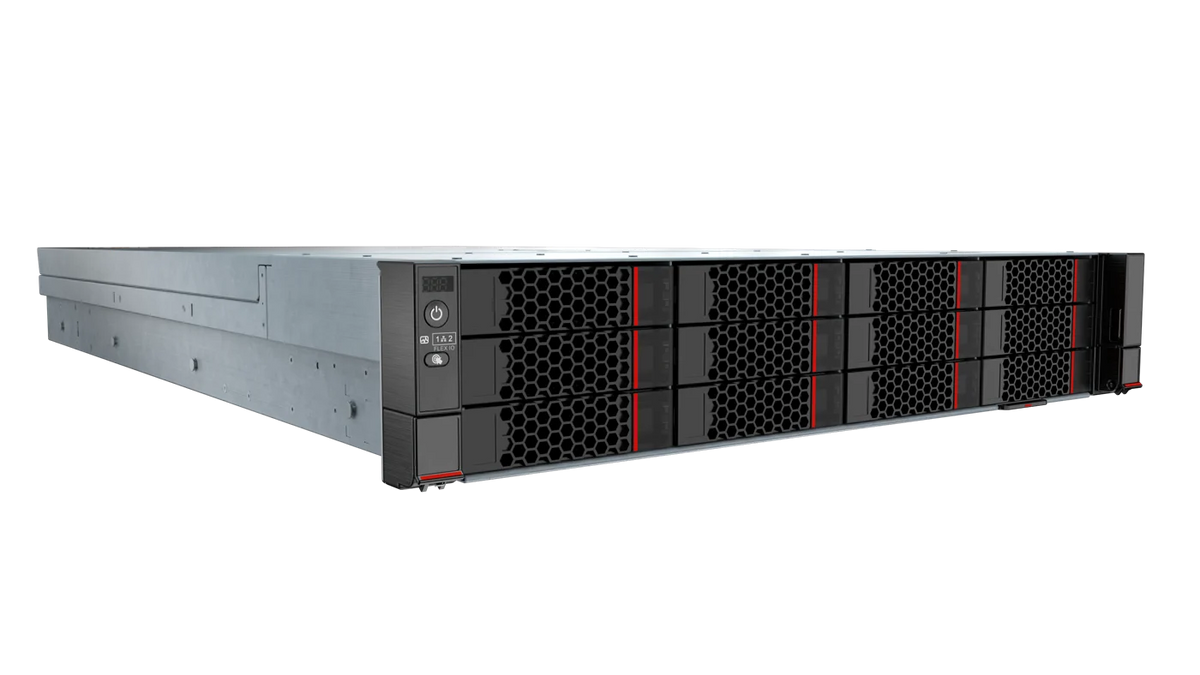

Hikrobot MV-TS1008-512GR-960G20TR10 AI training server 1000 8-GPU

Model MV-TS1008-512GR-960G20TR10Hikrobot

LAN ports2
USB 3 ports4
Serial PortRear 1 × RJ-45 ports
ProjectsUnlimited

Price on request

Ships in 2-3 weeks

49.8 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Vision controllers

MV-TS1008-512GR-960G20TR10: serial port Rear 1 x RJ-45 ports, max. power consumption 1500 W, training tasks Up to 8 concurrent training tasks by default.

Hikrobot MV-TS1008-512GR-960G20TR10 AI training server 1000 8-GPU. Server-grade CPU supports online annotation by 100 users, model conversion and other centralized management operations. Mid-to-high-performance GPU handles concurrent multi-user model training and validation; compatible with deep-learning training for the full range of smart products.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-TS1008-512GR-960G20TR10
Brand	Hikrobot
Projects	Unlimited
Training models	Unlimited
Training tasks	Up to 8 concurrent training tasks by default
Sub-account management	Up to 100 concurrent sub-accounts, Per-account permission policies and resource allocation
Dataset management	Max. images per dataset ≤ 100000; Single image size ≤ 100 MB; Max. single-image resolution < 100 MP; No size or quantity limits for other data types; Upload of JPG, JPEG, PNG, BMP images supported, and direct upload of ZIP archives (may include annotation data)
Task types	Object detection supported, Image classification, Character training, Image retrieval, Instance segmentation, Anomaly detection, Image segmentation, Unsupervised learning and other tasks
Data labeling	Manual labeling supported, Collaborative multi-user labeling, Smart pre-labeling, Multi-task serial labeling
Model functions	Model training supported, Post-training validation, Model management and conversion, Models deployable to smart product platforms (e.g. VM, smart cameras).

Interfaces and I/O

Network interface	2× Gigabit Ethernet ports, 2 × 10G fiber ports
USB Interface	2 × front USB3.0 ports; 2 × rear USB3.0 ports; Built-in 1× USB 3.0 port
Serial Port	Rear 1 × RJ-45 ports

Environment and compliance

Temperature	Operating temp.: 5 to 45 °C; Storage temperature (up to 3 months): -30°C to +60°C; Storage temperature (up to 6 months): -15°C to +45°C; Storage temperature (within 1 year): -10°C to +35°C
Humidity	Operating humidity: 8% to 90%; Storage humidity (up to 3 months): 8% to 85%; Storage humidity (up to 6 months): 8% to 80%; Storage humidity (within 1 year): 20% to 75%

Computing

CPU	Intel® Xeon® Gold 6348 processor, 28 cores / 56 threads × 2
Memory	512 GB default, 32 DDR4 memory slots, 64 GB per module, Up to 2 TB
Storage	Supports 2 × 960 GB SATA SSD in RAID 1; Supports 4 × 10 TB enterprise SATA 3.5" HDD (7200 rpm) in RAID 10
GPU	Compute card: NVIDIA TESLA L2×8; Capacity: 24 GB GDDR6; Bandwidth: 300 GB/s; Power: 75 W; Compute: INT8/FP8 TC 193 TFLOPS; FP16 TC 96.5 TFLOPS; TF32 48.3 TFLOPS; FP32 24.1 TFLOPS; Interface: PCIe Gen4 x16 (64 GB/s)

Electrical

Max. power consumption	1500 W
Power supply	200-240V AC/10A; 240V DC/8A; 100-127V AC/10A

Mechanical

Installation method	Cabinet type

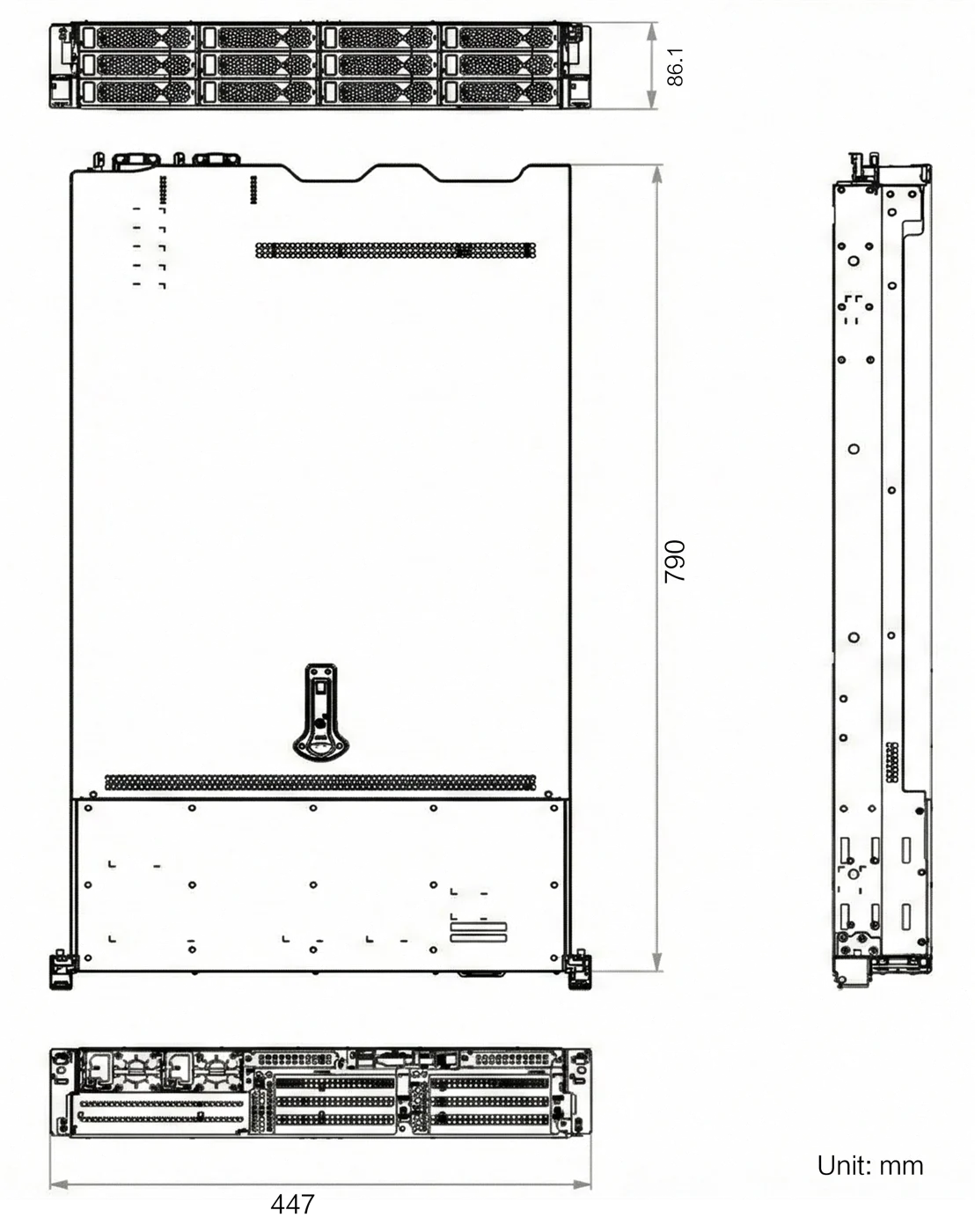

Dimension	790 mm × 447 mm × 86.1 mm(L × W × H)
Weight	Approx. 35.5 kg
Shipping weight (estimated)	49.80 kg

Downloads

Features

Server-grade CPU supports online annotation by 100 users, model conversion and other centralized management operations
Mid-to-high-performance GPU handles concurrent multi-user model training and validation; compatible with deep-learning training for the full range of smart products
RAID storage for data security; hot-swappable drives for physical data migration and flexible expansion
Intel® GigE / 10G fiber ports for fast, stable image data transfer

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-TS1008-512GR-960G20TR10 at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPUIntel Xeon Gold 634828 cores / 56 threads × 2

Memory512 GB default

GPUNVIDIA TESLA L2 × 8

Network2 × Gigabit Ethernet ports

Weight35.5 kgapprox.
