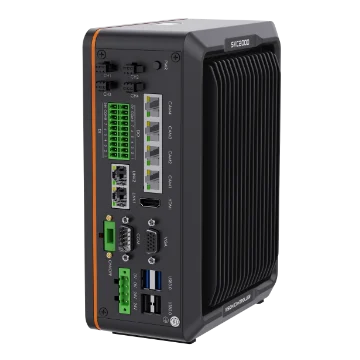

Hikrobot MV-SVC2509-16G60-512G 4 camera GigE ports, 1 configuration GigE port, 1 communication GigE port, 7100pro encryption supported

Vision controllers

Hikrobot MV-SVC2506-16G60-128G 4 camera GigE ports, 1 configuration GigE port, 1 communication GigE port, 6100pro encryption supported

Model MV-SVC2506-16G60-128GHikrobot

Processor8-core ARM
Memory16 GB
Storage128 GB SSD
OSLinux OS

Price on request

Ships in 2-3 weeks

2.9 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-SVC2506-16G60-128G 4 camera GigE ports, 1 configuration GigE port, 1 communication GigE port, 16 GB + 64 G EMMC +128 G SSD, 6100pro encryption supported. 8-core processor for powerful computing performance Embedded VM software: feature-rich and stable

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-SVC2506-16G60-128G
Brand	Hikrobot
Function module	VisionMaster algorithm platform (without deep learning module)
eMMC	64 GB

Interfaces and I/O

Communication protocol	TCP, UDP, MODBUS, Serial Port, PROFINET, EtherNet/IP, Fins, MC, FTP, etc.
Display interface	1× HDMI port, 1× VGA port; Up to 1920 × 1080 @ 30 Hz
Digital I/O	Opto-isolated input × 8; Opto-isolated output × 8
Network interface	6 × Gigabit Ethernet ports: LINK1 for VM configuration, LINK2 for communication with external devices, CAM1/2/3/4 for camera connection
USB Interface	2× USB 2.0 ports; 2× USB 3.0 ports
Serial Port	1× RS-232, switchable to RS-485/RS-422
Light interface	Light interface with 24 VDC constant voltage × 4; (Brightness is adjustable. Max. current 3 A for single light interface, and total max. power consumption 80 W. Supports light mode switching between strobe and solid via external control)

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CCC

Computing

CPU	8-core ARM
Memory	16 GB
Storage	128 GB SSD
Operating system	Linux OS

Electrical

Power supply	60 W (without light)

Mechanical

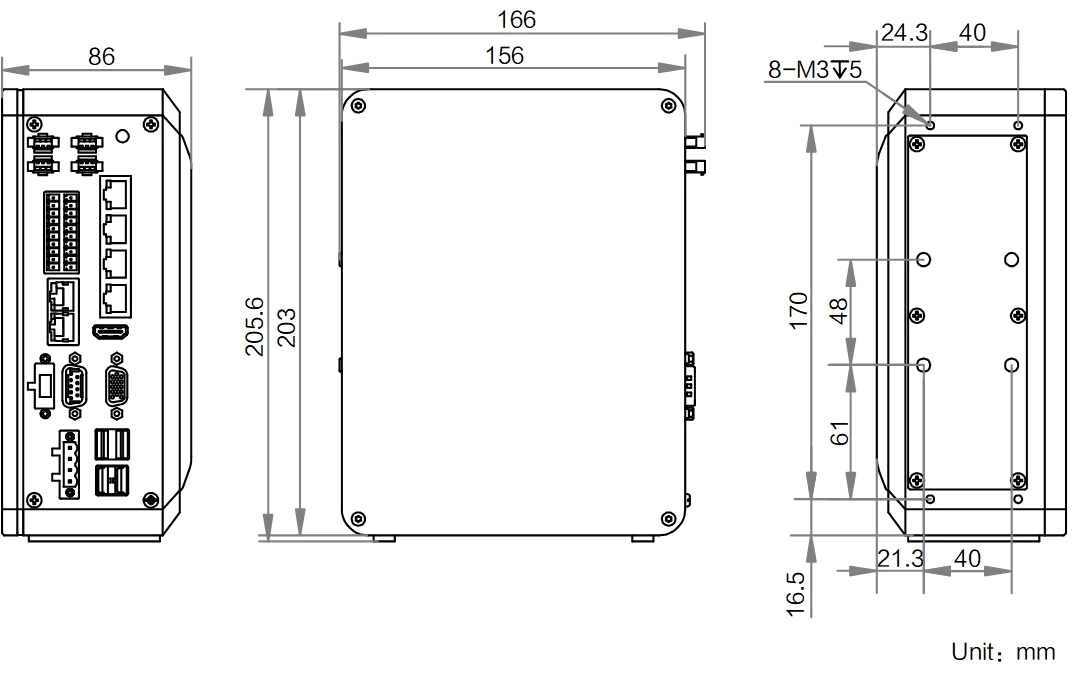

Dimension	166 mm × 205.6 mm × 86 mm
Weight	Approx. 2 kg (4.4 lb.)
Shipping weight (estimated)	2.90 kg

Downloads

Features

8-core processor for powerful computing performance
Embedded VM software: feature-rich and stable
Compact size with rich interfaces
Low-power, fanless, silent and stable
8-in/8-out GPIO and 4-channel light control for vision inspection
