Vision controllers

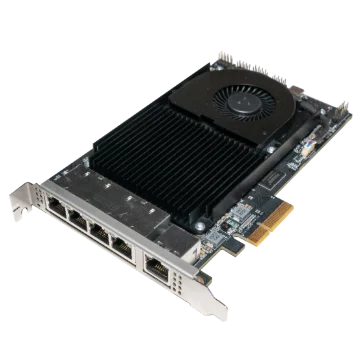

Hikrobot MV-SVA2506-16G50-NN 1 communication GigE port, 4 camera GigE ports, 16 GB RAM, Traditional algorithms supported, Fan cooling

Model MV-SVA2506-16G50-NNHikrobot

Processor8-core ARM
Memory16 GB
LAN ports5
eMMC64 GB

Price on request

Ships in 2-3 weeks

0.46 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Vision controllers

MV-SVA2506-16G50-NN: memory 16 GB, serial port 1 x RS-232, power consumption 14 W.

Hikrobot MV-SVA2506-16G50-NN 1 communication GigE port, 4 camera GigE ports, 16 GB RAM, Traditional algorithms supported, Fan cooling. 8-core processor for powerful computing performance. Embedded VM algorithm platform: feature-rich and stable.

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CEKC

Specifications

General

Model	MV-SVA2506-16G50-NN
Brand	Hikrobot
Function module	VisionMaster algorithm platform (without deep learning module)
eMMC	64 GB
Interconnect	PCI-E gen3 × 2

Interfaces and I/O

Communication protocol	TCP, UDP, ModBus, Serial, Profinet, EtherNet/IP, Fins, MC, FTP, etc.
Digital I/O	8 configurable I/O, Single-ended/differential compatible
Network interface	4 × Gigabit Ethernet ports (for camera connection, non-PoE); 1 × Gigabit Ethernet communication port (for PLCs and other communication devices)
Serial Port	1× RS-232

Environment and compliance

Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 80% RH (no condensation)
Certification	CE, KC

Computing

CPU	8-core ARM
Memory	16 GB

Electrical

Power consumption	14 W
Power supply	12 VDC

Mechanical

Delivery bandwidth	Up to 10 Gbps per lane

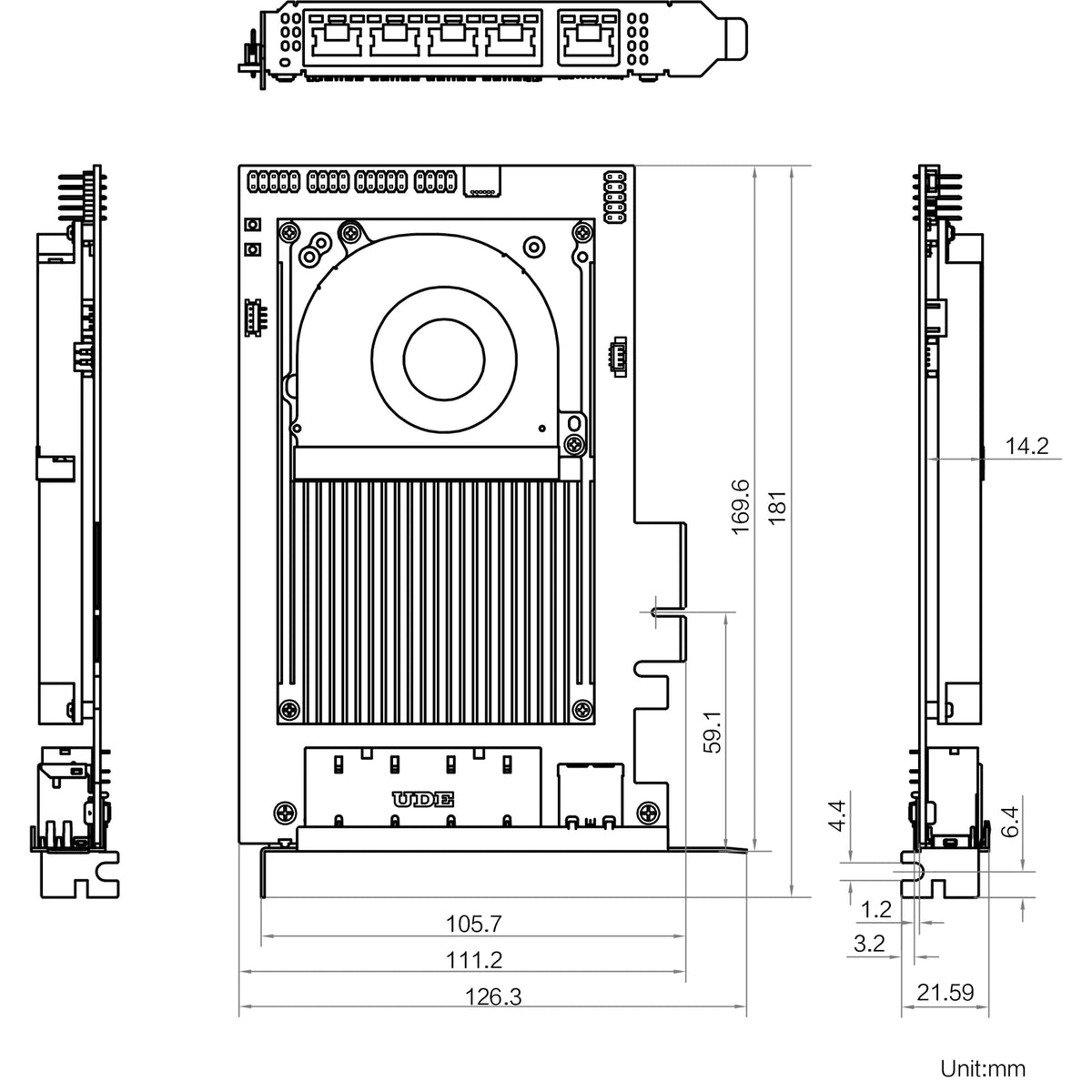

Dimension	181 mm × 126.3 mm × 21.6 mm
Weight	260 g
Shipping weight (estimated)	0.46 kg

Downloads

Features

14 W power consumption
Weighs 260 g
8-core processor for powerful computing performance
Embedded VM algorithm platform: feature-rich and stable
Multiple integrated Ethernet ports to connect GigE industrial cameras, PLCs and more
8 built-in configurable inputs/outputs for vision inspection needs
Secondary development via the VM algorithm platform for greater flexibility
Low power consumption and low load to reduce costs and boost efficiency

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SVA2506-16G50-NN at a glance

The numbers that set this model apart, taken from its own printed specifications.

CPU8-core ARM

Memory16 GB

Network4 × Gigabit Ethernet ports

Digital I/O8 configurable I/O

Power supply12 V DC

Power consumption14 W

Other models in the SVA2000 Vision Processing Card series

See all 6 models

Model	Memory	LAN ports	Price	Availability	Link
MV-SVA2506-16G50-NNThis model	16 GB	5	On request	Ships in 2-3 weeks	Compare
MV-SVA2506-08G50-NN	8 GB	5	On request	Ships in 2-3 weeks	CompareView
MV-SVA2509-16G50-NN	16 GB	5	On request	Ships in 2-3 weeks	CompareView
MV-SVA2506-16C20-NN	16 GB	1	On request	Ships in 2-3 weeks	CompareView
MV-SVA2506-08C20-NN	8 GB	1	On request	Ships in 2-3 weeks	CompareView
MV-SVA2509-16C20-NN	16 GB	1	On request	Ships in 2-3 weeks	CompareView
