Hikrobot MV-SCC009XM-16M-WBN SCC vision sensor, X type, 3MP, Mono, 16 mm lens, Motorized focus

Model MV-SCC009XM-16M-WBNHikrobot

Resolution2048 × 1536
SensorCMOS, global shutter
InterfaceFast Ethernet(100Mbit/s)
Speed40 fps
Lens mountM12
Mono / colourMono

$1,989.00

Ships in 2-3 weeks

0.37 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Smart cameras & vision sensors

lumaspecvision.com/products/lumaspec-mv-scc009xm-16m-wbn

MV-SCC009XM-16M-WBN, the 16 mm-lens, mono version, brings a 2048 x 1536 (3.1 MP) sensor to a smart camera series of 7 resolutions; about 1.6 times the resolution of the 1536 x 1264 (1.9 MP) version, for finer detail over the same field.

MV-SCC009XM-16M-WBN: resolution 2048 x 1536; sensor type CMOS, global shutter; sensor size 1/1.8"; max. frame rate 40 fps; mono/color Mono.

Hikrobot MV-SCC009XM-16M-WBN SCC vision sensor, X type, 3MP, Mono, 16 mm lens, Motorized focus.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CEKC

Specifications

General

Model	MV-SCC009XM-16M-WBN
Brand	Hikrobot
Vision tool	Measurement: P2P measurement, P2L measurement, contrast measurement, grayscale size, edge width measurement, width measurement, brightness average value, L2L angle, diameter measurement, line angle; Existence: Spot existence, edge existence, contour existence, pattern existence, circle existence, line existence, anomaly judge, existence detection; Count: Spot count, edge count, contour count, pattern count, learning-based count; Recognition: Multi-object count, code recognition, category recognition, classification registration, object registration, OCR, learning-based OCR, character horizontal stripe detection; Logic: Calculator, if module, logic judge, format output, condition judge, character comparison, combination judge; Location: Calibration convert, single point alignment, point rectify, point grasp, scale transformation, fixture; Deep learning: DL classification, DL object detection; Defect detection: Anomaly detection; Industry tools: OCR and defect detection
Solution capacity	Supports importing and exporting project, up to 32 projects can be stored
Lens cap	Polarized + diffuser + full-transparent lens cap
Indicator	360° visual indicator

Optics

Focal length	16 mm

Sensor and imaging

Sensor type	CMOS, global shutter
Pixel size	3.45 μm × 3.45 μm
Sensor size	1/1.8"
Resolution	2048 × 1536
Max. frame rate	40 fps
Gain	0 dB ~ 15 dB
Exposure time	6 μs ~ 1 sec
Pixel format	Mono 8
Mono/color	Mono
Aiming system	1 LED

Interfaces and I/O

Communication protocol	RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV
Data interface	Fast Ethernet(100Mbit/s)
Digital I/O	12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1; Supports triggering device via pressing top trigger button
Client software	SCMVS

Light

Light source	White spot light source. Red/blue/IR point light source is optional

Environment and compliance

Ingress protection	IP67 (under proper installation of waterproof lens cap)
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Meets standard IEC 60068-2-6:2007.; Device only (without installation bracket): 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X, Y, Z)
Shock resistance	Meets standard IEC 60068-2-27:2008.; Device only (without installation bracket): 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions)
Certification	CE, KC

Electrical

Power supply	24 VDC
Power consumption	Avg. 7 W @ 24 VDC (light source enabled); Max. 22 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical autofocus supported

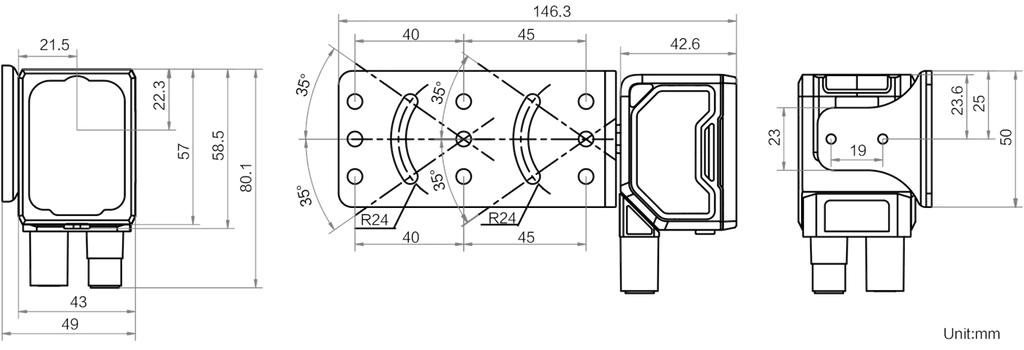

Dimension	Straight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7"); Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
Weight	Approx. 190 g (0.4 lb.)
Shipping weight (estimated)	0.37 kg

Downloads

Features

Up to 40 fps: a new image every about 25 ms, about 130 MB/s of 8-bit data at 2048 x 1536
Exposures from 6 µs: a part moving 1 m/s travels only about 0.01 mm during the shot
Embedded hardware platform for high-speed image processing
High-precision positioning, measurement and recognition algorithms for counting, defect detection, presence checks and positioning
Rich I/O interface supports multiple input and output signals
360° visible body indicator shows device status in real time for easy setup and maintenance
Rotatable tail cable design adapts flexibly to tight spaces
Three-way polarized, diffuse and clear illumination for outstanding environmental adaptability
IP67 protection for harsh industrial environments
Supports RS-232, TCP, UDP, FTP, Modbus, PROFINET, EtherNet/IP and other communication modes
16 mm focal length on 1/1.8": about 25.4° horizontal field
Mono sensor

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-SCC009XM-16M-WBN at a glance

Resolution2048 × 1536 px

Focal length16 mm

Power consumption7 Wavg. at 24 V DC; max. 22 W

Before you buy

Questions about the MV-SCC009XM-16M-WBN

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

How does the MV-SCC009XM-16M-WBN connect?

Printed: Communication protocol: RS-232, TCP, UDP, FTP, PROFINET, Modbus, EtherNet/IP, MELSEC/SLMP, FINS, Keyence KV; Data interface: Fast Ethernet(100Mbit/s).

What I/O does the MV-SCC009XM-16M-WBN have?

Printed: Digital I/O: 12-pin M12 connector provides power and I/O, including opto-isolated input (LINE 0/1/2) × 3, opto-isolated output (LINE 3/4/5) × 3, and RS-232 × 1; Supports triggering device via pressing top trigger button.

What power supply does the MV-SCC009XM-16M-WBN need?

Printed: Power supply: 24 VDC; Power consumption: Avg. 7 W @ 24 VDC (light source enabled); Max. 22 W @ 24 VDC (light source enabled).

What is the MV-SCC009XM-16M-WBN's IP rating?

Printed: Ingress protection: IP67 (under proper installation of waterproof lens cap).

What temperature range is the MV-SCC009XM-16M-WBN rated for?

Printed: Temperature: Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F).

Learn

Guides for this part

Engineering guides picked for the MV-SCC009XM-16M-WBN: how to choose it, set it up and get a better image.

All guides

Camera exposure and gain units: interpreting raw valuesCamera exposure and gain units describe different controls: exposure is time, while gain may be a register code, multiplier or decibel value. Auto exposure ROI instability from detection feedbackAuto exposure ROI instability occurs when changing detection-selected metering regions drive brightness corrections that alter subsequent detections. Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.

Other models in the SC3000 Series Vision Sensor series

See all 112 models

How this model compares

Same specifications as MV-SC3030XM-16M-WBN; they differ only in price ($1,989.00 here, $1,809.00 there).
Compared with MV-SCC009XC-16M-WBN: sensor Mono here, Color there.
Focal length 16 mm; next down 14.8 mm (MV-SC3016M-15M-WBN), up 25 mm (MV-SC3030XC-25M-ATN-H), of 10 focal lengths from 1.75 to 25 mm.

Model	Focal length	Interface	Mono / colour	Price	Availability	Link
MV-SC3030XC-05M-MED	5 mm	Fast Ethernet(100Mbit/s)	Color	$1,809.00	Ships in 2-3 weeks	CompareView
MV-SC3030XM-08M-WBN	8 mm	Fast Ethernet (100Mbit/s)	Mono	$1,899.00	Ships in 2-3 weeks	CompareView
MV-SCC009XM-08M-WBN	8 mm	Fast Ethernet(100Mbit/s)	Mono	$1,989.00	Ships in 2-3 weeks	CompareView
MV-SC3030XM-12M-WBN	12 mm	Fast Ethernet (100Mbit/s)	Mono	$1,809.00	Ships in 2-3 weeks	CompareView
MV-SCC009XM-12M-WBN	12 mm	Fast Ethernet(100Mbit/s)	Mono	$1,989.00	Ships in 2-3 weeks	CompareView
MV-SC3030XM-16M-WBN	16 mm	Fast Ethernet (100Mbit/s)	Mono	$1,809.00	Ships in 2-3 weeks	CompareView
MV-SCC009XC-16M-WBN	16 mm	Fast Ethernet(100Mbit/s)	Color	$1,989.00	Ships in 2-3 weeks	CompareView
MV-SCC009XM-16M-WBNThis model	16 mm	Fast Ethernet(100Mbit/s)	Mono	$1,989.00	Ships in 2-3 weeks	Compare
MV-SC3030XC-25M-ATN-H	25 mm	Fast Ethernet(100Mbit/s)	Color	$1,809.00	Ships in 2-3 weeks	CompareView
