Cables

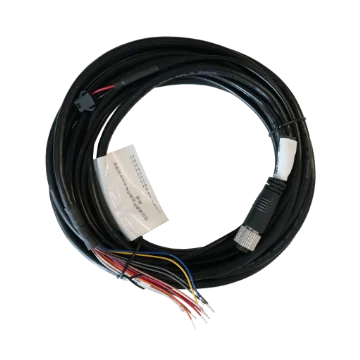

Hikrobot MV-SCA-P-M12A17pF-open-ST-15m 17-pin power cable, M12 A-coded 17-pin female to open leads, 15 m, Static, For: SC6000
Model MV-SCA-P-M12A17pF-open-ST-15mHikrobot
- Length15 m
- End AM12 17-pin A-code female
- End BOPEN 15-core + WTW 3-core
- Diameter7.0 mm
- Max. voltage24 VDC
- JacketPVC
$59.00
Ships in 2-3 weeks
0.31 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-SCA-P-M12A17pF-open-ST-15m 17-pin power cable, M12 A-coded 17-pin female to open leads, 15 m, Static, For: SC6000. M12 17-pin static power cable for camera power and I/O input/output signals, with light connection; available in multiple lengths
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-SCA-P-M12A17pF-open-ST-15m |
|---|---|
| Brand | Hikrobot |
| Jacket | PVC |
| Packaging | Individual package |
Interfaces and I/O
| End A connector | M12 17-pin A-code female |
|---|---|
| End B connector | OPEN 15-core + WTW 3-core |
| Cable diameter | 7.0 mm |
| Cable mechanical | 24AWG |
| Cable color | Black |
| Connector durability | >500 cycles |
| Applicable scenario | Static scenes |
Environment and compliance
| Working temperature | -20°C~ 80°C |
|---|---|
| Certification | RoHS |
Electrical
| Max. voltage | 24 VDC |
|---|
Mechanical
| Length | 15 m |
|---|---|
| Min. bending radius | 84 mm |
| Shipping weight (estimated) | 0.31 kg |
Other models in the Smart Camera Power and I/O Cables series
See all 4 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-SCA-P-M12A17pF-open-ST-5m | 5 m · M12 17-pin A-code female | $39.00 | 3 in stock | View |
| MV-SCA-P-M12A17pF-open-ST-7m | 7 m · M12 17-pin A-code female | $39.00 | 5 in stock | View |
| MV-SCA-P-M12A17pF-open-ST-10m | 10 m · M12 17-pin A-code female | $49.00 | 2 in stock | View |
