Code reader accessories
Hikrobot MV-SC3000-L-IB Smart camera square NIR light board
Model MV-SC3000-L-IBHikrobot
- Light source typeInfrared, 14 LEDs
- Light source wavelength850 nm
- Emission angle90°
- Data interfaceRibbon cable connection
$1,809.00
Ships in 2-3 weeks
0.66 kg shipping weight
Not available in the United States. Available for delivery to other countries.

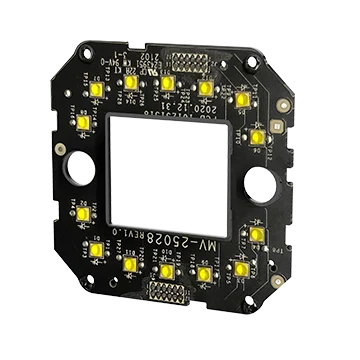

Hikrobot MV-SC3000-L-IB Smart camera square NIR light board. MV-SC3000/5000/7000-L light board for SC3000/5000/7000 series smart cameras, with 6 independently controlled zones (top/upper left/upper right/bottom/lower left/lower right) and PWM brightness control; choose the right board for the site to improve imaging
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-SC3000-L-IB |
|---|---|
| Brand | Hikrobot |
| Emission angle | 90° |
| Compatible models | SC3000/5000/7000 series smart camera |
Interfaces and I/O
| Data interface | Ribbon cable connection |
|---|
Light
| Light source type | Infrared, 14 LEDs |
|---|---|
| Light source wavelength | 850 nm |
Electrical
| Power supply | 12 ~ 24 VDC |
|---|---|
| Max. power consumption | 12.2W |
Mechanical
| Shipping weight (estimated) | 0.66 kg |
|---|
Other models in the Smart Camera Light Board series
See all 3 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-SC3000-L-BB | Blue light, 14 LEDs · 465 nm~475 nm | $1,809.00 | 4 in stock | View |
| MV-SC3000-L-RB | Red light, 14 LEDs · 620 nm~630 nm | $1,809.00 | 4 in stock | View |
