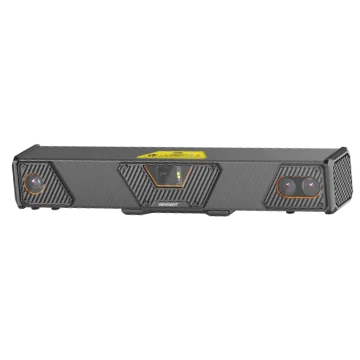

Hikrobot MV-RS-Base-L Galvanometer Laser 3D Camera
Model MV-RS-Base-LHikrobot
- InterfaceGigabit Ethernet (1000 Mbit/s)
- TypeStereo / structured light
- Near field of view640 mm × 600 mm @ 1200 mm
- Typical field of view1100 mm × 900 mm @ 1800 mm
Price on request
Ships in 2-3 weeks
2.2 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-RS-Base-L Galvanometer Laser 3D Camera. Customized optical system provides high-quality image. Supports high-uniformity laser module to provide a more detailed point cloud.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-RS-Base-L |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 1200 mm |
| Measurement range (MR) | 1000 mm |
| Repeatability (Z-axis)* | 0.08 mm @ 1800 mm |
| VDI/VDE accuracy* | 0.15 mm @ 1800 mm |
| Data acquisition time | 0.4 s to 0.9 s |
| Data type | Original image (mono and color images), depth image, RGB-D image |
| Laser safety class | Class 2 |
Optics
| Near field of view | 640 mm × 600 mm @ 1200 mm |
|---|---|
| Typical field of view | 1100 mm × 900 mm @ 1800 mm |
| Far field of view | 1220 mm × 1000 mm @ 2200 mm |
Sensor and imaging
| Resolution | RGB: 3200 × 1944; Depth: 1632 × 1264 |
|---|
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 interface provides power and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | RobotPilot, HiViewer |
Light
| Wavelength | 638 nm |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
| Certification | RoHS, CE |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
|---|
Electrical
| Image output delay | 0.8 s to 1.5 s |
|---|---|
| Power supply | 24 VDC |
| Power consumption | Typ. 15 W @ 24 VDC |
Mechanical

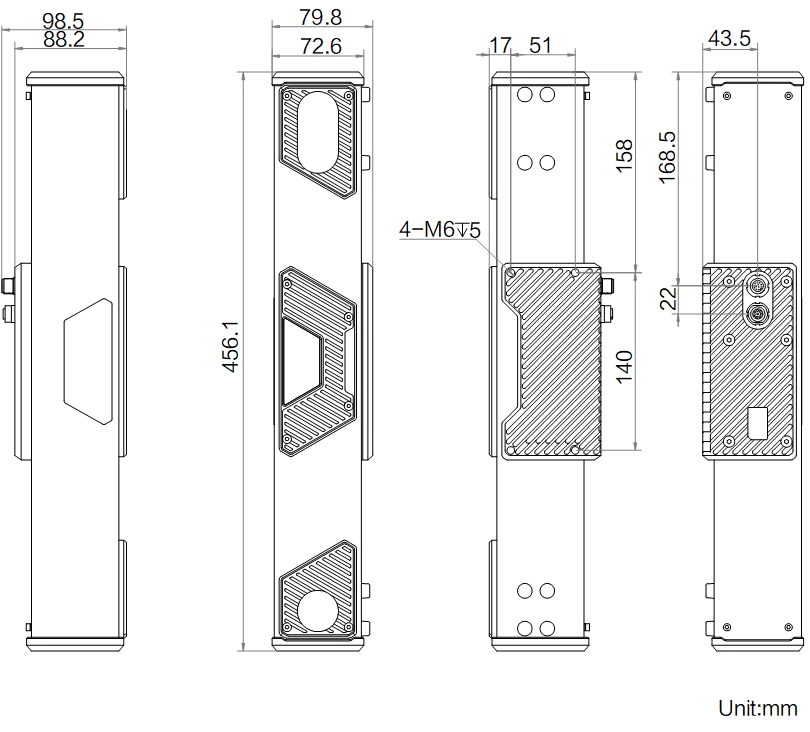

| Dimension | 456.1 mm × 79.8 mm × 98.5 mm (18.0" × 3.1" × 3.9") |
|---|---|
| Weight | Approx. 1.5 kg (3.3 lb.) |
| Shipping weight (estimated) | 2.20 kg |
