Industrial PCs
Hikrobot MV-IPC-H4C5W-32G-256G2T-2A3 4U wall-mount industrial PC, W680D, i5-12400, 2*16G, 256G+2T, 850W
Model MV-IPC-H4C5W-32G-256G2T-2A3Hikrobot
- Network2× Intel Ethernet ports (I226 + I219)
- OSWindows 10/11, Linux
- LAN ports2 LAN ports
- USB 3 ports5+ USB 3 ports
$3,679.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
14.52 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IPC-H4C5W-32G-256G2T-2A3 4U wall-mount industrial PC, W680D, i5-12400, 2*16G, 256G+2T, 850W. Intel® Gen 12/13/14 Core i3/i5/i7/i9 CPUs 4 DDR5 UDIMM memory slots, 32 GB per module, up to 128 GB total
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IPC-H4C5W-32G-256G2T-2A3 |
|---|---|
| Brand | Hikrobot |
Interfaces and I/O
| Network interface | 2× Intel Ethernet ports (I226 + I219) |
|---|---|
| USB Interface | 10 × USB3.0 ports1, 2 × USB2.0 signals (pin header), 2 × onboard USB2.0 port for dongle |
| Serial Port | 1 × onboard RS-232/422/485 port; Built-in 4× RS-232 (pin header), 1 × RS232/422/485 (header) |
| Extended interface | 2× PCIe x16 (PCIe 5.0, x8 signal), 4 × PCIe x4 (2 supporting PCIe 4.0, 2 supporting PCIe 3.0), 1 × PCI (32-bit) |
| Display interface | Intel HD Graphics; Independent triple display (1 × HDMI, 2 × DP); 1× HDMI, up to 3840×2160 @ 60Hz; 2× DP, up to 5120×2160 @ 60Hz |
| Audio interface | MIC-In, Line-In, Line-out |
| GPIO | 16-bit GPIO |
Environment and compliance
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
Computing
| CPU | Supports Intel® Gen 12/13/14 CoreTM i3/i5/i7/i9 CPUs (LGA1700), TDP:125W |
|---|---|
| Chip | Intel® W680D chipset, ATX motherboard |
| Memory | 4 × DDR5 4400/4800/5200/5600 MHz UDIMM ECC/Non-ECC memory slots, 32 GB per module, Up to 128 GB |
| Storage | 4× 7-pin SATA 3.0 supported, 2 × M.2 2242/2280 Key-M with NVMe (M2-KEYM2 supports SATA/NVMe auto-detect), RAID 0 supported, 1, 5, 10 |
| Operating system | Windows 10/11, Linux |
Electrical
| Power supply | 100 ~ 240V AC |
|---|---|
| Max. power consumption | 850W |
Mechanical
| Installation method | Wall-mount and desktop |
|---|---|
| Dimension | 351mm × 331mm × 174mm(L*W*H) |
| Weight | Net weight approx. 10.3 kg |
| Shipping weight (estimated) | 14.52 kg |
Other models in the 4U Wall-Mount Industrial PC (12th Gen) series
See all 16 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| MV-IPC-H4A7W-32G-256G2T-2A3 | 2 Intel Ethernet ports (I226+I219) · Windows 10/11, Linux | $2,449.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H4A9W-32G-256G2T-2A3 | 2 Intel Ethernet ports (I226+I219) · Windows 10/11, Linux | $2,449.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H4A9KW-32G-256G2T-2A3 | 10900 MP | $2,449.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H487H-8G-256G1T-240 | Windows 7/10, Linux · 2 LAN ports | $2,449.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H485H-8G-256G1T-240 | Windows 7/10, Linux · 2 LAN ports | $2,449.00 Quote | Ships in 2-3 weeks | View |

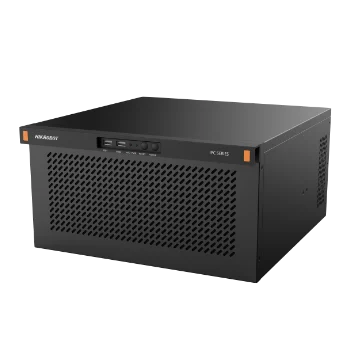

| MV-IPC-H4C5W-16G-256G2T-2A1 | 2× Intel Ethernet ports (I226 + I219) · Windows 10/11, Linux | $3,679.00 Quote | Ships in 2-3 weeks | View |
