Industrial PCs

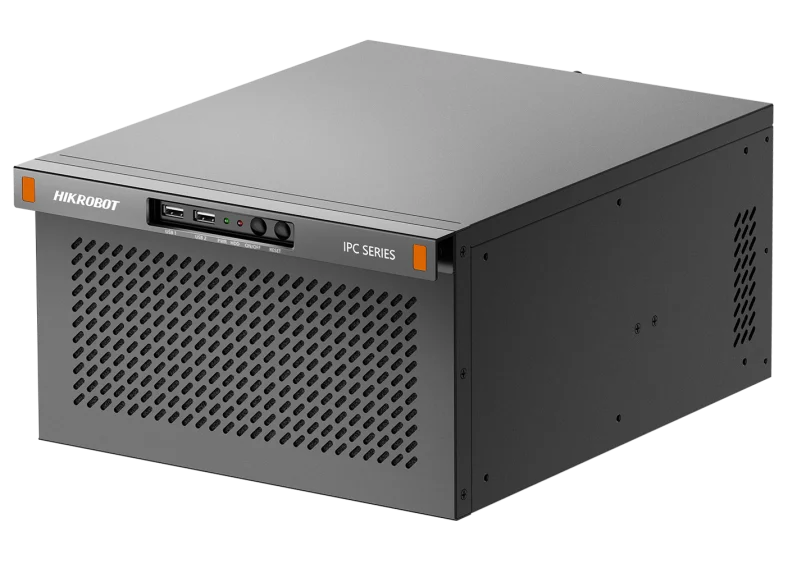

Hikrobot MV-IPC-H387H-16G-256G-240 3U wall-mount industrial PC, mATX-H110, i7-8700, 2*8G, 256G, 150 W
Model MV-IPC-H387H-16G-256G-240Hikrobot
- Network2 Intel Ethernet ports (I219, I225)
- OSWindows 7/10, Linux
- LAN ports2
- USB 3 ports4
Ships in 2-3 weeks
11.3 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Ask an engineerBrowse Industrial PCs
lumaspecvision.com/products/lumaspec-mv-ipc-h387h-16g-256g-240
MV-IPC-H387H-16G-256G-240: chip Intel® H110 chipset, Micro-ATX motherboard; network interface 2 Intel Ethernet ports (I219, I225); max. power consumption 150 W.
Hikrobot MV-IPC-H387H-16G-256G-240 3U wall-mount industrial PC, mATX-H110, i7-8700, 2*8G, 256G, 150W. Supports Intel® Gen 6/7/8/9 Core™ i3/i5/i7, Pentium® and Celeron® CPUs 2 DDR4 U-DIMM memory slots, expandable to 32 GB.
Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details
- Tracked worldwide shippingTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy
Specifications
General
| Model | MV-IPC-H387H-16G-256G-240 |
|---|---|
| Brand | Hikrobot |
| Supplied configuration | Intel Core i7-8700, 2 × 8 GB memory, 256 GB storage, 150 W power supply |
Interfaces and I/O
| Network interface | 2 Intel Ethernet ports (I219, I225) |
|---|---|
| USB Interface | 4 × USB 3.0 ports, 2× USB 2.0 ports; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle |
| Serial Port | Onboard 1× RS-232/422/485 port; 5 × internal RS-232 headers |
| Extended interface | Includes 1 × PCIe x16 (PCIe 3.0), 1× PCIe x4 (PCIe 2.0), 2 × PCI expansion slots |
| Display interface | Independent dual display supported; 1 × VGA, up to 1280×1024 @ 60Hz; 1 × DVI-D, up to 1920×1080 @ 60Hz; 1 × HDMI, up to 3840×2160 @ 60Hz |
| Audio interface | Mic-In, Line-In, Line-out |
| GPIO | 8-bit GPIO |
Environment and compliance
| Temperature | Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
Computing
| CPU | Supports LGA1151 Intel® Core Gen 6/7/8/9, i3/i5/i7 and Pentium, Celeron CPU; CPU TDP up to 95 W |
|---|---|
| Chip | Intel® H110 chipset, Micro-ATX motherboard |
| Memory | 2× DDR4 U-DIMM memory slots supported, 16 GB per module, Up to 32 GB |
| Storage | 3× 7-pin SATA 3.0 supported, 1 × M.2 2280 SATA interface |
| Operating system | Windows 10, Linux (Hikrobot also lists Windows 7 for the board; Intel 8th / 9th-gen CPUs such as the one supplied are not supported on Windows 7) |
Electrical
| Power supply | 100 ~ 240 V AC |
|---|---|
| Max. power consumption | 150 W |
Mechanical
| Installation method | Wall-mount |
|---|---|
| Dimension | 351mm × 260 mm × 155 mm (L × W × H) |
| Weight | Net weight approx. 8.0 kg |
| Shipping weight (estimated) | 11.30 kg |
Engineering data
Mount and connect the MV-IPC-H387H-16G-256G-240
| Mounting | Wall |
|---|
Check the dimension drawing in Downloads before you drill a fixture.
Before you buy
Questions about the MV-IPC-H387H-16G-256G-240
Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.
What can the MV-IPC-H387H-16G-256G-240 connect to?
Printed: Network interface: 2 Intel Ethernet ports (I219, I225); USB Interface: 4 × USB 3.0 ports, 2× USB 2.0 ports; Built-in 2× USB 2.0 (pin header), 2× onboard USB 2.0 ports for dongle; Serial Port: Onboard 1× RS-232/422/485 port; 5 × internal RS-232 headers.
What comes installed in the MV-IPC-H387H-16G-256G-240?
Printed: Operating system: Windows 7/10, Linux.
What power supply does the MV-IPC-H387H-16G-256G-240 need?
Printed: Power supply: 100 ~ 240 V AC; Max. power consumption: 150 W.
What temperature range is the MV-IPC-H387H-16G-256G-240 rated for?
Printed: Temperature: Operating temp.: 0 to 40 °C, Storage temp.: -20 °C to 60 °C.
Other models in the 3U Wall-Mount Industrial PC (8th Gen) series
See all 5 models- The lowest max. power consumption in this series (150 to 400 W)
How this model compares
- Compared with MV-IPC-H397H-16G-256G-241: maximum power consumption 150 W here, 300 W there.
Swipe to see all columns
| Model | Network | OS | Max. power consumption | Price | Availability | Link |
|---|---|---|---|---|---|---|
| MV-IPC-H397H-16G-256G-241 | 2 Intel Ethernet ports (I219, I225) | Windows 7/10, Linux | 300 W | $2,449.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H397H-32G-256G2T-242 | 2 Intel Ethernet ports (I219, I225) | Windows 7/10, Linux | 400 W | $2,629.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H387H-16G-256G-240This model | 2 Intel Ethernet ports (I219, I225) | Windows 7/10, Linux | 150 W | $2,449.00 Quote | Ships in 2-3 weeks | |
| MV-IPC-H3C5H-32G-256G2T-241 | 2× Intel Ethernet ports (I226 + I219) | Windows 10/11, Linux | 300 W | $3,679.00 Quote | Ships in 2-3 weeks | View |
| MV-IPC-H3C7H-32G-256G2T-242 | 2× Intel Ethernet ports (I226 + I219) | Windows 10/11, Linux | 400 W | $3,879.00 Quote | Ships in 2-3 weeks | View |
