Handheld code readers

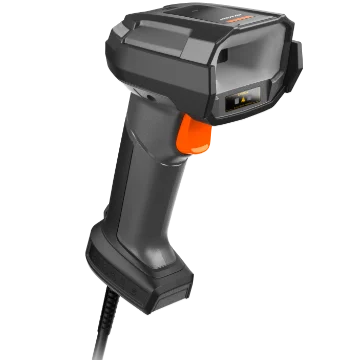

Hikrobot MV-IDH5000P/13SR/04RN/LE General-purpose wired industrial handheld code reader
Model MV-IDH5000P/13SR/04RN/LEHikrobot
- Resolution1280 × 1024
- SensorCMOS
- InterfaceSerial
- ConnectionWired
$719.00
Ships in 2-3 weeks
0.46 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDH5000P/13SR/04RN/LE General-purpose wired industrial handheld code reader. In-house high-performance barcode algorithm efficiently reads difficult DPM codes in industrial applications Robust algorithm handles low-contrast, inverted, dirty and damaged codes
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDH5000P/13SR/04RN/LE |
|---|---|
| Brand | Hikrobot |
| Min. accuracy | 1D codes: 3 mil; 2D codes: 5 mil |
| Detection angle | Tilt angle ±65°, Skew angle ±65°, Rotation angle 360° |
| Symbol contrast | 20 % |
| Prompt | LED indicator, buzzer, vibrator |
| Laser safety class | Laser 2 |
Optics
| Depth of field | Code 39(3 mil):35 mm ~ 140 mm; Code 39(10 mil):0 mm ~ 440 mm; Code 128(5 mil):30 mm ~ 185 mm; Code 128(20 mil):\ mm ~ 750 mm; Data Matrix(5 mil):60 mm ~ 80 mm; Data Matrix(20 mil):0 mm ~ 485 mm; QR Code(10 mil):0 mm ~ 220 mm; PDF417(7 mil):0 mm ~ 230 mm |
|---|---|
| Field of view | 43° (H) × 35° (V) |
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128 (incl. GS1-128), Coda Bar, EAN8, EAN13, ISBN, ISSN, ITF14, ITF25, UPCA, UPCE; Matrix 2D code: QR Code (incl. GS1-QR), Data Matrix (incl. GS1-DM), Micro QR, Aztec, Han Xin; Stacked 2D code: PDF417, Micro PDF417 |
|---|---|
| Sensor type | CMOS |
| Resolution | 1280 × 1024 |
| Aiming system | Cross laser aiming |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Server, Serial, FTP, TCP Client, UDP, EIP, ModBus, Profinet, Fins, MC |
|---|---|
| Data interface | Fast Ethernet(100 Mbit/s), DC terminal, RS-232 |
| Client software | IDMVS |
Light
| Ambient illumination | 0 ~ 100000 lux |
|---|---|
| Light source | Direct light: white LED; Diffuse light: red LED, Blue LED |
| Wavelength | 650 nm |
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: –10 °C to 50 °C (14 °F to 122 °F); Storage temperature: –20 °C to 60 °C (–4 °F to 140 °F) |
| Humidity | 5% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Power supply | 12 ~ 24 VDC |
|---|---|
| Current consumption | DC terminal: 0.63 A (max. current); 0.28 A (typical current); USB: 0.9 A (max. current); 0.56 A (typical current) |
| Maximum power | 1 mW |
Mechanical
| Dimension | 72.8 mm × 98.2 mm × 196.5 mm |
|---|---|
| Weight | Approx. 260 g (0.6 lb.) |
| Drop height | Drop: 2.0 m, 50 times; Drop: 1.8 m, 70 times; Tumble: 0.5 m, 2000 times |
| Pulse width | 8 ms |
| Shipping weight (estimated) | 0.46 kg |
