Hikrobot MV-IDB007X-06RU 1.4 MP, 6 mm focal length, Red light, Clear lens cover, USB manual-focus industrial code reader

Model MV-IDB007X-06RUHikrobot

Resolution1408 × 1024
InterfaceUSB2.0
Speed60 fps
Lens mountM10
Focal length6.72 mm

$719.00

Quote

Quoted price: add to quote for lead time and volume pricing.

End of life soon: the maker is phasing this model out, so stock is limited. Ask us for availability or the successor model.

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-IDB007X-06RU 1.4 MP, 6 mm focal length, Red light, Clear lens cover, USB manual-focus industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations Aviation connector: single-cable connection for simple routing

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-IDB007X-06RU
Brand	Hikrobot
Lens cap	Clear lens cover, Full-polarizing optional
Indicator	Power indicator (PWR), network indicator (LNK), and status indicator (STS)

Optics

Focal length	6.72 mm
Field of view	39° (H) × 29° (V)

Sensor and imaging

Symbologies	1D code: Code 39, Code 93, Code 128, ITF14, ITF25, EAN8, UPCA, UPCE, EAN13, CodaBar, etc.; Matrix 2D code: QR Code, Data Matrix, etc.
Max. frame rate	60 fps
Sensor type	Global shutter, Mono, 1/2.9”, 3.45 μm × 3.45 μm
Max. reading speed	45 codes/sec
Resolution	1408 × 1024
Exposure time	16 μs ~ 1 sec
Gain	0 ~ 15 dB
Aiming system	Green LED

Interfaces and I/O

Data interface	USB2.0
Communication protocol	SmartSDK, USB
Digital I/O	17-pin M12 connector for data transmission, Device trigger via side button supported
Client software	IDMVS

Light

Light source	Red
Ambient illumination	0 ~ 50000 lux

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	5 V (USB2.0 powered)
Power consumption	Avg. power: 2.5 W @ 5 VDC; Max. power: 5 W @ 5 VDC

Mechanical

Lens mount	M10-Mount, Manual focus adjustable
Shell material	Metal

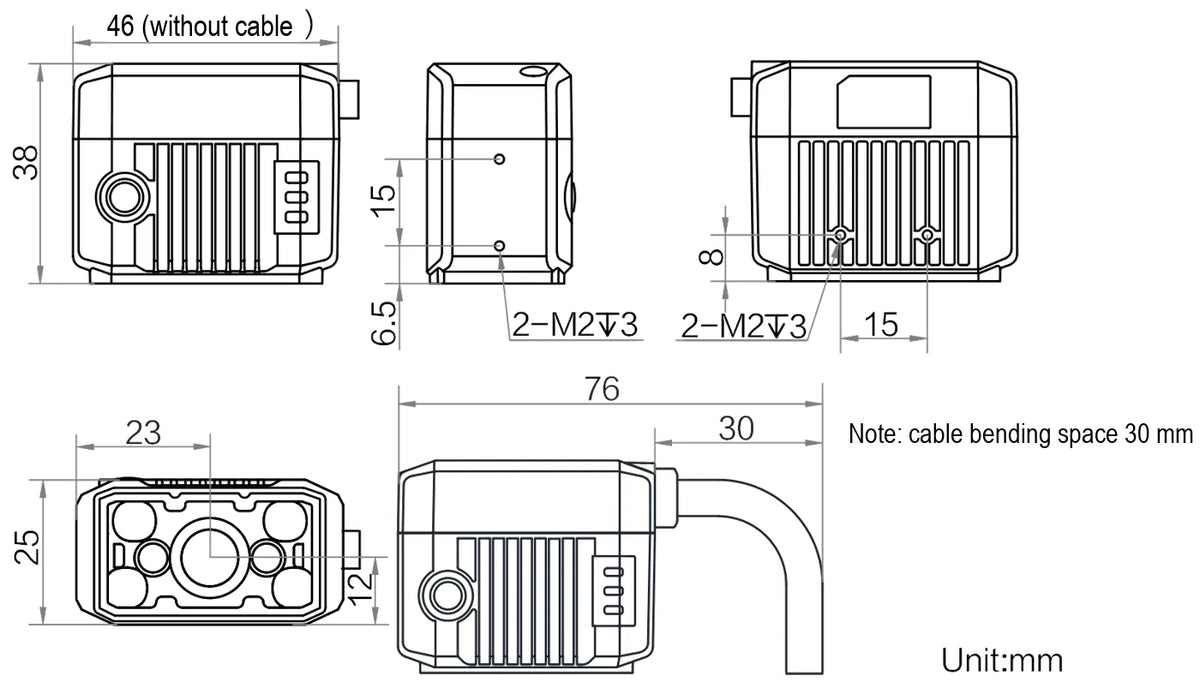

Dimension	46 mm × 38 mm × 25 mm
Weight	Approx. 160 g (0.4 lb.)
Shipping weight (estimated)	0.32 kg

Downloads

Features

Ultra-compact: fits all kinds of machines and tight workstations
Aviation connector: single-cable connection for simple routing
Built-in LED aiming clearly marks the field of view for fast installation and setup
External focus knob with visible focal plane
Rich I/O interface and plug-in power connector for easy field wiring
