Code reader accessories

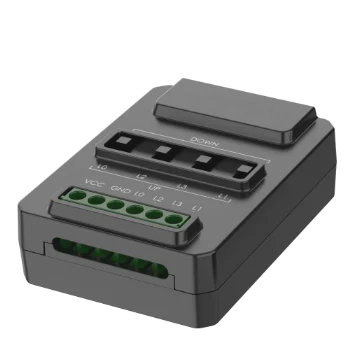

Hikrobot MV-IDA-IO-22 Gen 1 2-in 2-out IO box
Model MV-IDA-IO-22Hikrobot
- Size49.7 mm × 36.6 mm × 15.8 mm
- Pull-up voltageEqual to VCC
- Pull-down voltageEqual to GND
- Power supply12 ~ 24 VDC
$69.00
Ships in 2-3 weeks
0.14 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-IDA-IO-22 Gen 1 2-in 2-out IO box. I/O box for power and I/O connections to smart code readers or vision sensors; cameras can use its pull-up or pull-down resistors for fast I/O wiring
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-IDA-IO-22 |
|---|---|
| Brand | Hikrobot |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) |
|---|---|
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, KC |
Electrical
| Max. output current | Line3:100 mA; Other channels: 24 mA |
|---|---|
| Pull-up voltage | Equal to VCC |
| Pull-down voltage | Equal to GND |
| Power supply | 12 ~ 24 VDC |
Mechanical

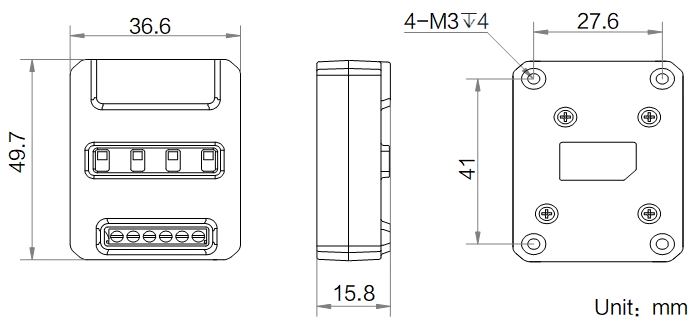

| Dimension | 49.7 mm × 36.6 mm × 15.8 mm |
|---|---|
| Weight | Approx. 30 g (0.07 lb.) |
| Shell material | ABS |
| Shipping weight (estimated) | 0.14 kg |
