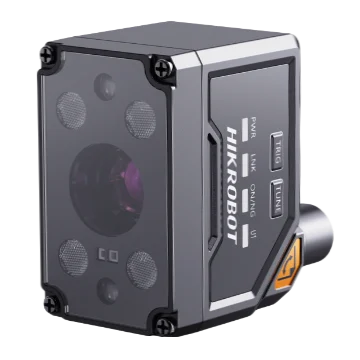

Hikrobot MV-ID2563XM-08M-RBN 2.4 MP industrial code reader

Fixed code readers

Hikrobot MV-ID2023XM-08M-RBN 2.4MP, 8mm focal length, full red light transmission, autofocus industrial code reader

Model MV-ID2023XM-08M-RBNHikrobot

Resolution1920 × 1280
SensorCMOS, global shutter
InterfaceFast Ethernet (100 Mbit/s)
Speed60 fps
Lens mountM12
Mono / colourMono

$659.00

Ships in 2-3 weeks

0.27 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-ID2023XM-08M-RBN 2.4MP, 8mm focal length, full red light transmission, autofocus industrial code reader. Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces. Integrates digital WDR image processing algorithm, and combines with 4-channel light source control and multiple optical accessories for enhancing code clarity.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-ID2023XM-08M-RBN
Brand	Hikrobot
Lens cap	Half-polarized lens cap by default. Transparent and fully-polarized caps are optional.
Indicator	Power indicator (PWR), network indicator (LNK), result indicator (OK/NG), user-defined indicator (U1)

Optics

Focal length	8 mm

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128 (GS1-128 included), CodaBar, EAN 8, EAN 13, UPCA, UPCE; ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, Industrial 2of5, and Pharmacode; 2D matrix codes: QR Code (GS1-QR included), Data Matrix (GS1-DM included), MicroQR, AZTEC, HanXin; Stacked codes: PDF417
Max. frame rate	60 fps
Max. reading speed	80 codes/sec
Sensor type	CMOS, global shutter
Pixel size	2.2 μm × 2.2 μm
Sensor size	1/3.52"
Resolution	1920 × 1280
Exposure time	36 μs to 100 ms
Gain	0 dB to 48 dB
Mono/color	Mono
Aiming system	2 green LED lights

Interfaces and I/O

Communication protocol	SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, Modbus, Fins, UDP
Data interface	Fast Ethernet (100 Mbit/s)
Digital I/O	17-pin M12 connector provides power and I/O, including isolated input (LineIn 0/1) × 2, isolated output (LineOut 3/4) × 2, RS-232 × 1. Supports device triggering via pressing side button.
Client software	IDMVS

Light

Light source	Red light by default. White/blue/IR/UV/two-color (red/blue) light is optional.

Environment and compliance

Ingress protection	IP65
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Device only: 10 Hz to 55 Hz, 1.5 mm peak-to-peak amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	24 VDC
Power consumption	Avg.: 5 W @ 24 VDC (light source enabled); Max.: 12 W @ 24 VDC (light source enabled)

Mechanical

Lens mount	M12-mount, mechanical focus supported
Dimension	Straight angle: 72.7 mm × 31.5 mm × 41 mm (2.9" × 1.2" × 1.6"); Right angle: 51.5 mm × 31.5 mm × 61 mm (2.0" × 1.2" × 2.4")
Weight	Approx. 118 g (0.3 lb.)
Shipping weight (estimated)	0.27 kg

Downloads

Features

Adopts high-robustness algorithm to accurately identify difficult codes, such as stained code, skewed code, low-contrast code, and code on laser-marked metal surfaces.
Integrates digital WDR image processing algorithm, and combines with 4-channel light source control and multiple optical accessories for enhancing code clarity.
Adopts modular design, rotatable cable, separated cable, and multi-surface mounting interfaces for flexible mounting.
Supports multi-channel isolated I/O and multiple industrial protocols for integration into diverse automation systems.
Compatible with IDMVS client software V5.0.0 and later, it can achieve functions such as auto focusing and one-click tuning for fast debugging.
