Hikrobot MV-ID2016M-06S-RBN-U 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader

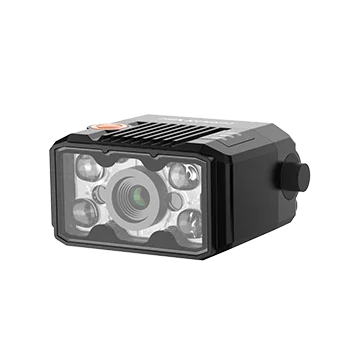

  • Hikrobot MV-ID2016M-06S-RBN-U 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader
  • MV-ID2016M-06S-RBN-U dimensions (mm)

Fixed code readers

Hikrobot MV-ID2016M-06S-RBN-U 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader

Model MV-ID2016M-06S-RBN-UHikrobot

  • Resolution1408 × 1024
  • SensorCMOS, global shutter
  • InterfaceUSB 3.0
  • Speed60 fps
  • Lens mountM10
  • Mono / colourMono
$709.00

Ships in 2-3 weeks

0.32 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Available in the US - comparable cameras:

Ask an engineerBrowse Fixed code readers

MV-ID2016M-06S-RBN-U: resolution 1408 x 1024; sensor type CMOS, global shutter; max. frame rate 60 fps; focal length 6.72 mm; light source Red.

Hikrobot MV-ID2016M-06S-RBN-U 6mm focal length 1.6MP USB PRO Series Compact Industrial Code Reader. Compact design and small in size. Adopts aviation connector for single cable wiring.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-ID2016M-06S-RBN-U
BrandHikrobot
IndicatorPower indicator (PWR), network indicator (LNK), and status indicator (STS)

Optics

Focal length6.72 mm
Working distance40 mm to 120 mm

Sensor and imaging

Symbologies1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE; 2-dimensional codes: QR Code, Data Matrix
Max. frame rate60 fps
Max. reading speed68 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.9"
Resolution1408 × 1024
Exposure time16 μs to 1 sec
Gain0 dB to 15 dB
Mono/colorMono
Aiming systemGreen LED

Interfaces and I/O

Communication protocolSmartSDK, USB
Data interfaceUSB 3.0
Digital I/O17-pin M12 connector provides data transmission. Device trigger via pressing button on side supported.
Client softwareIDMVS

Light

Ambient illumination0 lux to 50000 lux
Light sourceRed

Environment and compliance

Ingress protectionIP65
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
CertificationCE, RoHS, KC

Electrical

Power supply5 VDC (USB 3.0 provides power supply)
Max. power consumptionApprox. 4.6 W @ 5 VDC

Mechanical

Lens mountM10-mount, adjusting focus manually supported
Dimension46 mm × 38 mm × 25 mm (1.8" × 1.5" × 1.0")
WeightApprox. 160 g (0.4 lb.)
Shipping weight (estimated)0.32 kg

Engineering data

The MV-ID2016M-06S-RBN-U at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1408 × 1024 px
Max. frame rate60 fps
Max. reading speed68 codes/s
Focal length6.72 mm
Ingress protectionIP65
Power consumption4.6 Wapprox. at 5 V DC
