Hikrobot MV-ID2013EMI-03N-WBP-S Industrial Code Reader

Model MV-ID2013EMI-03N-WBP-SHikrobot

Resolution1280 × 1024
Speed50 fps
Lens mountM5.5
Focal length2.48 mm

$659.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineer Browse Fixed code readers

lumaspecvision.com/products/lumaspec-mv-id2013emi-03n-wbp-s

The second-shortest of the 14 focal lengths of this code reader series, MV-ID2013EMI-03N-WBP-S, the white-light, 70 mm-WD version, has a 2.48 mm lens: a wider view than most of the series, for larger fields at closer range.

MV-ID2013EMI-03N-WBP-S: resolution 1280 x 1024, max. frame rate 50 fps, focal length 2.48 mm, field of view 70°(H) x 58°(V), light source White (polarized).

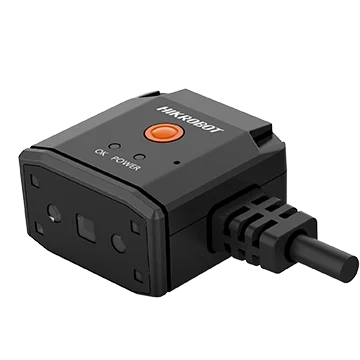

Hikrobot MV-ID2013EMI-03N-WBP-S Industrial Code Reader.

Tracked shipping 3-year warranty Engineer support Net 30 for approved accounts Secure checkout Shipping, warranty, support and payment details

Tracked worldwide shippingTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

90-day returns Unused items, counted from delivery; free US return label; no restocking fee Return policy

Certifications (as printed)CERoHSKC

Specifications

General

Model	MV-ID2013EMI-03N-WBP-S
Brand	Hikrobot
Indicator	Power indicator (POWER), status indicator (OK/NG)

Optics

Depth of field	Code 39 (5 mil): 40 mm to 120 mm; Code 128 (10 mil): 15 mm to 250 mm; EAN 13 (13 mil): 30 mm to 280 mm; QR Code (10 mil): 35 mm to 155 mm; QR Code (15 mil): 15 mm to 215 mm; QR Code (20 mil): 15 mm to 270 mm
Focal length	2.48 mm
Focus distance	70 mm
Field of view	70°(H) × 58°(V)

Sensor and imaging

Symbologies	1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin; Stacked codes: PDF417
Max. frame rate	50 fps
Max. reading speed	30 codes/sec
Sensor type	CMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm
Resolution	1280 × 1024
Exposure time	60 μs to 6000 μs
Gain	1 dB to 28 dB
Aiming system	Green LED

Interfaces and I/O

Data interface	Fast Ethernet (100 Mbit/s), RS-232, DC terminal
Communication protocol	SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP
Digital I/O	DB15 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 3/4), RS-232 × 1.; Supports device triggering and factory reset via pressing button on side.
Client software	IDMVS

Light

Ambient illumination	0 lux to 10000 lux
Light source	White (polarized)

Environment and compliance

Ingress protection	IP54
Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity	20% RH to 95% RH (no condensation)
Vibration resistance	Device only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistance	Device only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
Certification	CE, RoHS, KC

Electrical

Power supply	12 VDC to 24 VDC
Power consumption	Avg.: 2.5 W @ 12 VDC to 24 VDC; Max.: 5 W @ 12 VDC to 24 VDC

Mechanical

Lens mount	M5.5-mount
Shell material	PVC

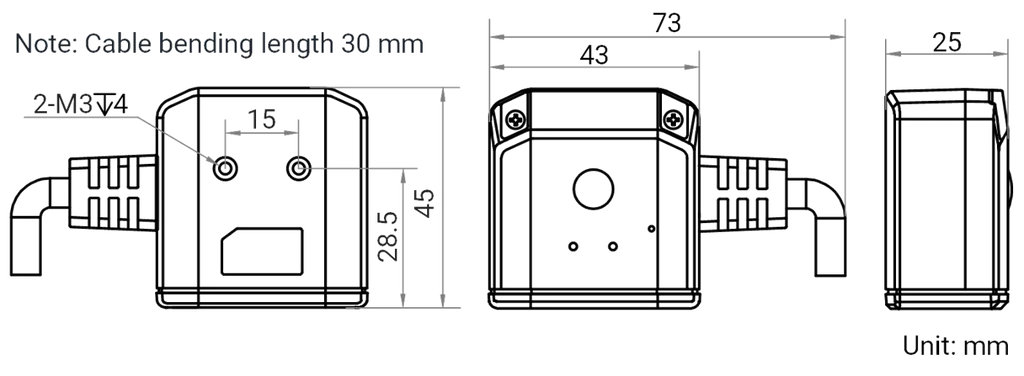

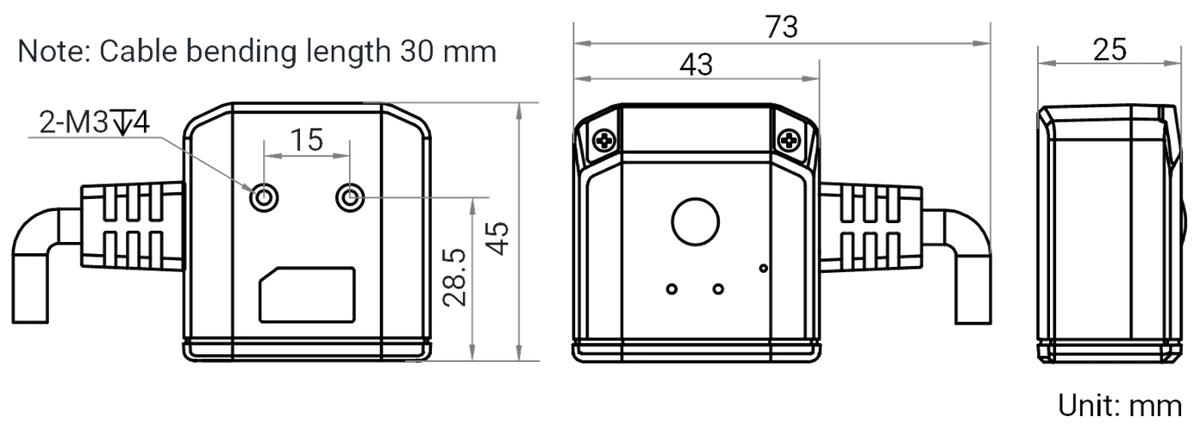

Dimension	45 mm × 43 mm × 25 mm (1.8" × 1.7" × 1.0")
Weight	Approx. 68.5 g (0.2 lb.)
Shipping weight (estimated)	0.20 kg

Downloads

Features

Up to 50 fps: a new image every about 20 ms, about 65.5 MB/s of 8-bit data at 1280 x 1024
Exposures from 60 µs: a part moving 1 m/s travels only about 0.06 mm during the shot
Compact design and small in size.
Adopts multiple I/O interfaces and plug-in power interface.
Adopts LED aiming light to help aim codes.
Adopts buzzer and indicator for indicating device status.
Supports one-click parameter adjustment for convenient operation.
Supports light source control for flexible configuration.

Complete the station

The configurator matches a camera, lens, light, light controller and cables to each other, and to this part.

Build a system with this part Configure a system Ask an engineer

Engineering data

The MV-ID2013EMI-03N-WBP-S at a glance

Resolution1280 × 1024 px

Max. reading speed30 codes/s

Ingress protectionIP54

ShutterGlobal

Before you buy

Questions about the MV-ID2013EMI-03N-WBP-S

Answered from this model's printed specifications and our fit tests. Calculated figures say “about”.

Which codes does the MV-ID2013EMI-03N-WBP-S read?

Printed: Symbologies: 1D codes: Code 39, Code 93, Code 128, EAN8, EAN13, ITF 14, ITF 25, CodaBar, UPCA, UPCE; 2D codes: QR Code, Data Matrix, MicroQR, AZTEC, HanXin; Stacked codes: PDF417.

How far and how fast does the MV-ID2013EMI-03N-WBP-S read?

Printed: Max. reading speed: 30 codes/sec; Depth of field: Code 39 (5 mil): 40 mm to 120 mm; Code 128 (10 mil): 15 mm to 250 mm; EAN 13 (13 mil): 30 mm to 280 mm; QR Code (10 mil): 35 mm to 155 mm; QR Code (15 mil): 15 mm to 215 mm; QR Code (20 mil): 15 mm to 270 mm.

How does the MV-ID2013EMI-03N-WBP-S connect?

Printed: Data interface: Fast Ethernet (100 Mbit/s), RS-232, DC terminal; Communication protocol: SmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, Ethernet/IP.

What I/O does the MV-ID2013EMI-03N-WBP-S have?

Printed: Digital I/O: DB15 connector provides power and I/O, including opto-isolated input × 2 (Line 0/1), opto-isolated output × 2 (Line 3/4), RS-232 × 1.; Supports device triggering and factory reset via pressing button on side.

What power supply does the MV-ID2013EMI-03N-WBP-S need?

Printed: Power supply: 12 VDC to 24 VDC; Power consumption: Avg.: 2.5 W @ 12 VDC to 24 VDC; Max.: 5 W @ 12 VDC to 24 VDC.

Learn

Guides for this part

Engineering guides picked for the MV-ID2013EMI-03N-WBP-S: how to choose it, set it up and get a better image.

All guides

RS232 barcode scanner connection to an embedded hostAn RS232 barcode scanner connection works when the reader and host share compatible electrical levels, correctly mapped signals, adequate power and matching serial settings. Barcode to part verification for similar assembliesBarcode to part verification checks independently observed assembly features against the recipe identified by a decoded label. Machine vision camera resolution calculatorPixels needed on each axis = field of view / smallest feature × pixels per feature.

Other models in the ID2000 Series Industrial Code Reader series

See all 298 models

How this model compares

Compared with MV-ID2013EMI-03N-RBN: light source White (polarized) here, Red there.
Focal length 2.48 mm; next down 2.45 mm (MV-ID2018L-10S), up 4.63 mm (MV-ID2013EMI-05N-RBP), of 14 focal lengths from 2.45 to 25 mm.

Model	Lens mount	Focal length	Light source	Focus distance	Cable exit	Price	Availability	Link
MV-ID2013EMI-03N-RBN	M5.5	2.48 mm	Red	70 mm		$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-03N-RBP	M5.5	2.48 mm	Red (polarized)	70 mm		$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-03N-RBP-S	M5.5	2.48 mm	Red (polarized)	70 mm	Side exit	$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-03N-WBP-SThis model	M5.5	2.48 mm	White (polarized)	70 mm		$659.00	Ships in 2-3 weeks	Compare
MV-ID2013EMI-05-RBN	M5.8	4.63 mm	Red	120 mm		$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-05-WBP	M5.8	4.63 mm	White (polarized)	120 mm		$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-05N-RBN	M5.8	4.63 mm	Red	70 mm		$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-05N-RBN-S	M5.8	4.63 mm	Red	70 mm	Side exit	$659.00	Ships in 2-3 weeks	CompareView
MV-ID2013EMI-05N-RBP	M5.8	4.63 mm	Red (polarized)	70 mm		$659.00	Ships in 2-3 weeks	CompareView
