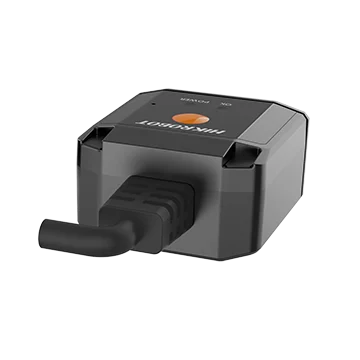

Hikrobot MV-ID2013EM-03N-RBP 1.3 MP resolution, 2.48 mm focal length, 70 mm focus distance, Red basic light, GigE fixed-focus industrial code reader
  • Hikrobot MV-ID2013EM-03N-RBP 1.3 MP resolution, 2.48 mm focal length, 70 mm focus distance, Red basic light, GigE fixed-focus industrial code reader
  • MV-ID2013EM-03N-RBP dimensions (mm)

Fixed code readers

Hikrobot MV-ID2013EM-03N-RBP 1.3 MP resolution, 2.48 mm focal length, 70 mm focus distance, Red basic light, GigE fixed-focus industrial code reader

Model MV-ID2013EM-03N-RBPHikrobot

  • Resolution1024 × 1280
  • Speed50 fps
  • Lens mountM5.5
  • Focal length2.48 mm
$739.00

Ships in 2-3 weeks

0.2 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Ask an engineerBrowse Fixed code readers

MV-ID2013EM-03N-RBP: resolution 1024 x 1280, max. frame rate 50 fps, focal length 2.48 mm, light source Red (polarized).

Hikrobot MV-ID2013EM-03N-RBP 1.3 MP resolution, 2.48 mm focal length, 70 mm focus distance, Red basic light, Polarizing lens cover, GigE fixed-focus industrial code reader. Ultra-compact: fits all kinds of machines and tight workstations Rich I/O interface and plug-in power connector for easy field wiring

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Certifications (as printed)CERoHSKC

Specifications

General

ModelMV-ID2013EM-03N-RBP
BrandHikrobot
IndicatorPower indicator (POWER), status indicator (OK/NG)

Optics

Depth of fieldCode 39(5 mil):40 ~ 120 mm; Code 128(10 mil):15 ~ 250 mm; EAN13(13 mil):30 ~ 280 mm; QR Code(10 mil):35 ~ 155 mm; QR Code(15 mil):15 ~ 215 mm; QR Code(20 mil):15 ~ 270 mm
Focal length2.48 mm

Sensor and imaging

Symbologies1D code: Code 39, Code 93, Code 128, ITF14, ITF25, CodaBar, EAN, UPCA, UPCE, etc.; 2D code: QR Code, Data Matrix, etc.
Max. frame rate50 fps
Max. reading speed30 codes/sec
Sensor typeCMOS, global shutter, mono, 1/4", 2.7 μm × 2.7 μm
Resolution1024 × 1280
Exposure time60 μs ~ 6000 μs
Gain1 ~ 28 dB
Aiming systemGreen LED

Interfaces and I/O

Data interfaceFast Ethernet (100 Mbit/s), RS-232, DC terminal
Communication protocolSmartSDK, TCP Client, Serial, FTP, TCP Server, UDP, Profinet, EthernetIP
Digital I/ODB15 connector for power and I/O, Incl. 2 non-isolated inputs (Line 0/1), 2 non-isolated outputs (Line 2/3), 1× RS-232, Device trigger via side button supported
Client softwareIDMVS

Light

Ambient illumination0 ~ 10000 lux
Light sourceRed (polarized)

Environment and compliance

Ingress protectionIP54
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceDevice only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistanceDevice only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
CertificationCE, RoHS, KC

Electrical

Power supply12 ~ 24 VDC
Power consumptionAvg. power 2.5 W @ 12 to 24 VDC, Max. power 5 W @ 12 to 24 VDC

Mechanical

Lens mountM5.5-Mount
Shell materialPVC
Dimension45 mm × 43 mm × 25 mm
WeightApprox. 68.5 g (0.2 lb.)
Shipping weight (estimated)0.20 kg

Engineering data

The MV-ID2013EM-03N-RBP at a glance

The numbers that set this model apart, taken from its own printed specifications.

Resolution1024 × 1280 px
Max. frame rate50 fps
Max. reading speed30 codes/s
Focal length2.48 mm
Ingress protectionIP54
Power consumption2.5 Wavg. at 12–24 V DC; max. 5 W
