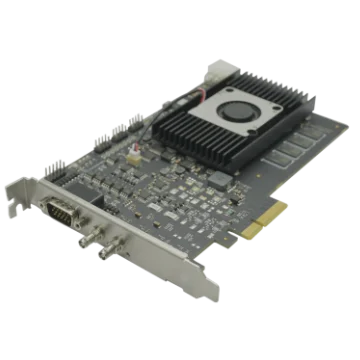

Hikrobot MV-GY1002 2-port CXP-12 frame grabber V2.0
Model MV-GY1002Hikrobot
- InterfacePCI-E gen3 ×4
- Size181 mm × 126.3 mm × 21.6 mm
- Ports2 ports
- On-board memory4 GB DDR4-RAM
$4,969.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GY1002 2-port CXP-12 frame grabber V2.0. Supports the CXP-12 protocol with up to 12.5 Gbps per link PoCXP support, up to 13 W per channel
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GY1002 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 ×4 |
| Bus indicator | 1 |
| Standard | CoaXPress 2.0 |
| Camera type supported | CXP-6/CXP-12 connector industrial camera |
| Camera quantity supported | Up to 2, Connects 1/2 cameras |
| Camera connection speed | 1.25/2.5/3.125/5/6.25/10/12.5Gbps(CXP-1/2/3/5/6/10/12) |
| Stream | 2 |
| Stream indicator | 2 |
Sensor and imaging
| Pixel format | Mono 8/10/12/16; Bayer 8/10/12; RGB 8 |
|---|
Interfaces and I/O
| Interface | 2 × HD-BNC |
|---|---|
| I/O Type | Configurable input/output × 11, compatible with single-ended/differential.; I/O on bracket: Line 0 to Line 6 supports input and output (3.3 VDC to 24 VDC); I/O on PCB: Line 7 to Line 10 supports input and output (3.3 VDC to 24 VDC) |
| Connector | Connector of I/O on bracket: DB15 male connector; Connector of I/O on PCB: 9-pin header (2.54 mm interval, 2 × 5, 10-pin hole) |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC, RoHS |
Computing
| On-board memory | 4 GB DDR4-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power output | PoCXP, each channel provides 13 W @ 24 VDC at most |
|---|---|
| Power consumption | 15.7 W (excl. PoCXP) |
Mechanical
| Delivery bandwidth | 3900 MB/s (max. transmission bandwidth); 3350 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Shipping weight (estimated) | 0.38 kg |
