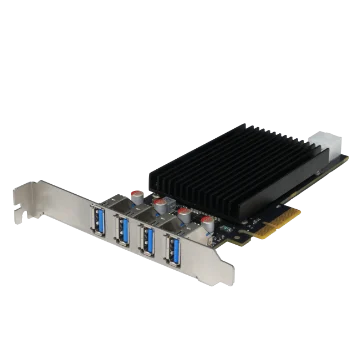

Hikrobot MV-GU2204 MV-GU2200 Series Quad USB3.0 Adaptor
Model MV-GU2204Hikrobot
- InterfacePCI-E gen2 × 4
- Ports4 ports
- Camera type supportedIndustrial cameras with USB interfaces
- Stream4
$469.00
Ships in 2-3 weeks
0.3 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GU2204 MV-GU2200 Series Quad USB3.0 Adaptor. Adopts 4 USB3.0 type-A interfaces. Max. transmission speed of each channel reaches 5 Gbps and max. transmission bandwidth of bus reaches 20 Gbps in USB3.0 mode theoretically.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GU2204 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Standard | USB3.0 |
| Camera type supported | Industrial cameras with USB interfaces |
| Camera quantity supported | 4 at most |
| Camera connection speed | Max. 5 Gbps (the actual speed is 3.08 Gbps) |
| Stream | 4 |
| Cooling mode | Natural cooling, cooling fins without fans |
Sensor and imaging
| Pixel format | Mono 8/10/10Packed/12/12Packed; Bayer 8/10/10Packed/12/12Packed; YUV422Packed, YUV422_YUYV_Packed; RGB 8, BGR 8 |
|---|
Interfaces and I/O
| Interface | USB3.0 type-A, female |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, RoHS |
Computing
| Operating system | Windows 7/10/11 on Intel® platforms |
|---|
Electrical
| Power output | Each channel provides 4.5 W @ 5 VDC at most |
|---|---|
| Power consumption | 5.5 W (without USB power supply); 23.5 W (with USB power supply) |
Mechanical
| Delivery bandwidth | 1720 MB/s (max. transmission bandwidth); 1600 MB/s (sustained transmission bandwidth) |
|---|---|
| Dimension | 165.5 mm × 120 mm × 22 mm (6.5" × 4.7" × 0.9") |
| Weight | Approx. 143.6 g (0.3 lb.) |
| Shipping weight (estimated) | 0.30 kg |
