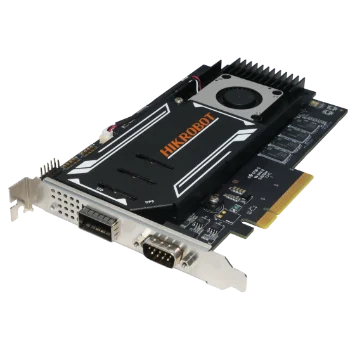

Hikrobot MV-GQ1001 Single-port 50 Gbps QSFP frame grabber
Model MV-GQ1001Hikrobot
- InterfacePCI-E gen3 × 8
- Size181 mm × 126.3 mm × 21.6 mm
- Ports1 port
- On-board memory8 GB DDR4-RAM
Price on request
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GQ1001 Single-port 50 Gbps QSFP frame grabber. Single QSFP port with transmission bandwidth up to 50 Gbps Bus and channel indicators report frame grabber status in real time
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GQ1001 |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen3 × 8 |
| Bus indicator | 1 |
| Standard | XoFLink |
| Camera type supported | QSFP28-type cameras |
| Camera quantity supported | 1 camera(s) (single card 50 Gbps, dual card 100 Gbps) |
| Camera connection speed | 50 Gbps |
| Stream | 2 |
| Stream indicator | 1 pair(s) |
| SFP+ module | 1 × QSFP28 |
Sensor and imaging
| Pixel format | Mono 8/10/12; Bayer 8/10; RGB 8 |
|---|
Interfaces and I/O
| Interface | 1×QSFP28 |
|---|---|
| I/O Type | 8 configurable inputs/outputs, Single-ended/differential compatible; Line 0/1/4/5/6/7: 3.3 to 12 V input, 3.3 to 24 V output; Line 2/3: 3.3 to 24 V input/output |
| Connector | DB9 and internal pin header |
| Client software | MVS |
Environment and compliance
| Temperature | Working temperature: 0 °C to 60 °C (32 °F to 140 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, KC, RoHS |
Computing
| On-board memory | 8 GB DDR4-RAM |
|---|---|
| Operating system | Windows 7/10/11, Ubuntu 18.04 to 24.04 on 64-bit Linux |
Electrical
| Power consumption | 18.5 W |
|---|
Mechanical
| Delivery bandwidth | 7800 MB/s (peak bandwidth), 6700 MB/s (sustained bandwidth) |
|---|---|
| Dimension | 181 mm × 126.3 mm × 21.6 mm |
| Shipping weight (estimated) | 0.38 kg |
