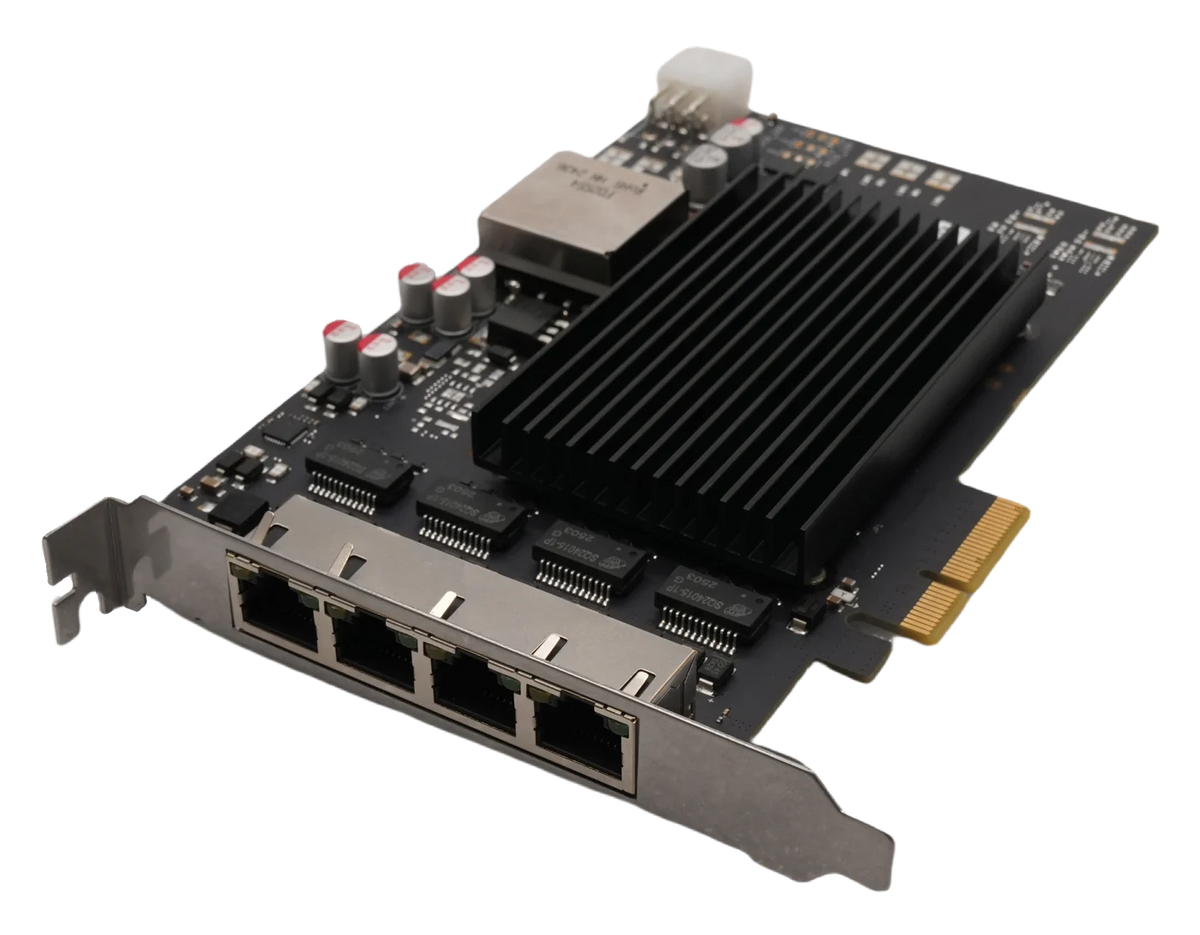

Hikrobot MV-GE4004P Quad 2.5G Ethernet Adaptor, POE
Model MV-GE4004PHikrobot
- InterfacePCI-E gen2 × 4
- Ports4 ports
- Camera connection speed10/100/1000/2500 Mbps
- Power consumption4 W (without POE), 6.1 W (without POE)
$289.00
Ships in 2-3 weeks
0.38 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-GE4004P Quad 2.5G Ethernet Adaptor, POE. Supports IEEE 802.3 protocol. Supports PCI-E gen2 × 4 bus interface.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-GE4004P |
|---|---|
| Brand | Hikrobot |
| Interconnect | PCI-E gen2 × 4 |
| Standard | IEEE 802.3 |
| Camera type supported | GigE industrial camera, 2.5 GigE industrial camera |
| Camera quantity supported | 2 at most; 4 at most |
| Camera connection speed | 10/100/1000/2500 Mbps |
| Stream | 2; 4 |
| Cooling mode | Natural cooling, cooling fins without fans |
| Jumbo frame | 9 KB |
Interfaces and I/O
| Interface | RJ45 × 2; RJ45 × 4 |
|---|
Environment and compliance
| Temperature | Working temperature: 0 °C to 55 °C (32 °F to 131 °F); Storage temperature: –20 °C to 70 °C (–4 °F to 158 °F) |
|---|---|
| Humidity | 10% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Computing
| Operating system | Windows 7/10/11, Ubuntu18.04 to 24.04 on 64-bit Linux |
|---|
Electrical
| Power consumption | 4 W (without POE), 6.1 W (without POE) |
|---|
Mechanical
| Delivery bandwidth | 2000 MB/s (max. transmission bandwidth) |
|---|---|

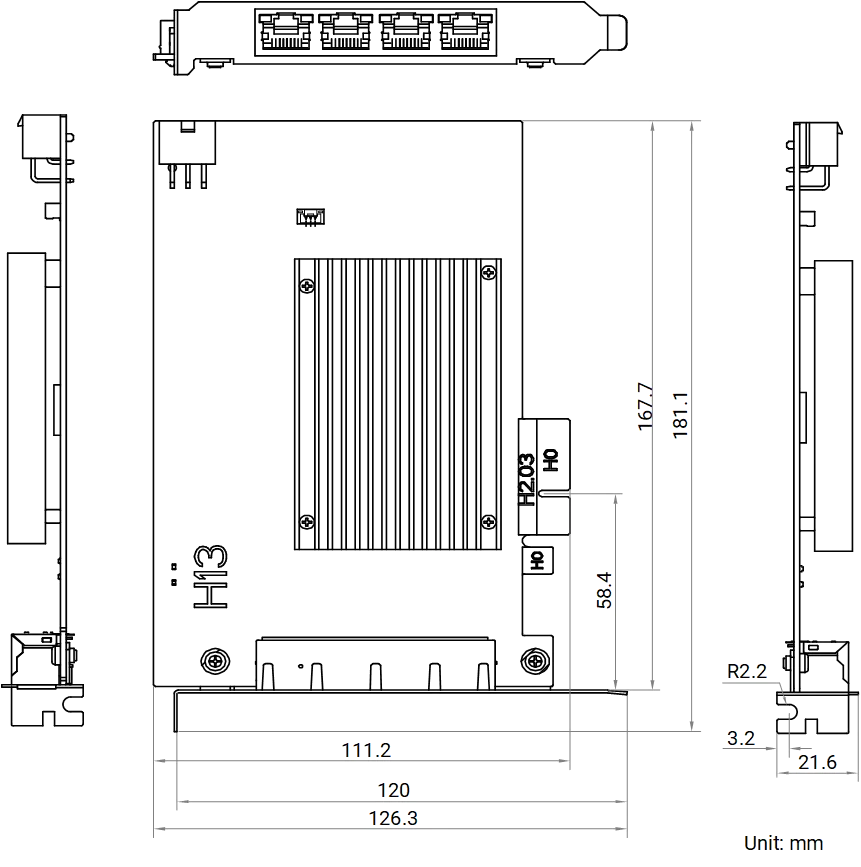

| Dimension | 181 mm × 126.3 mm × 21.6 mm (7.1" × 5.0" × 0.9") |
| Weight | Approx. 202 g (0.4 lb.); Approx. 210 g (0.5 lb.) |
| Shipping weight (estimated) | 0.38 kg |
