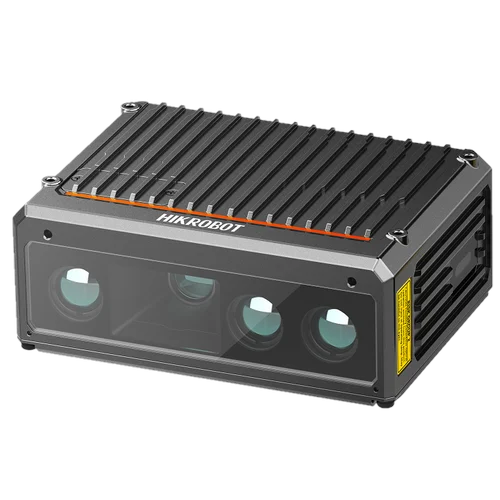

Hikrobot MV-DPS200P-02 V2.0 Projected structured-light 3D camera

Model MV-DPS200P-02 V2.0Hikrobot

InterfaceGigabit Ethernet(1000Mbit/s)
TypeStereo / structured light
Near field of view180 mm × 160 mm@250 mm
Far field of view420 mm × 320 mm@500 mm

$8,829.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Ships in 2-3 weeks

1.23 kg shipping weight

Not available in the United States. Available for delivery to other countries.

Hikrobot MV-DPS200P-02 V2.0 Projected structured-light 3D camera. Custom optical system for excellent image quality High-performance structured-light projection for complete, detailed point clouds

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our licensed P.E. engineers
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items; free return label in the US
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	MV-DPS200P-02 V2.0
Brand	Hikrobot
Clearance distance (CD)	250 mm
Measurement range (MR)	250 mm
Repeatability (Z-axis)*	0.02 mm@300 mm
VDI/VDE accuracy	0.03 mm@300 mm
Data type	Raw image (mono + color), Depth map, RGB-D image
Acquisition time	0.2 ~ 0.7 s

Optics

Near field of view	180 mm × 160 mm@250 mm
Far field of view	420 mm × 320 mm@500 mm

Sensor and imaging

Resolution	3200 × 1944 @ RGB image; 1632 × 1264 @ depth map

Interfaces and I/O

Data interface	Gigabit Ethernet(1000Mbit/s)
Digital I/O	12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7)
Client software	RobotPilot, HiViewer

Light

Light source	Blue LED (450 nm, RG2)

Environment and compliance

Ingress protection	IP67
Temperature	Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity	20% to 85% RH (non-condensing)
Certification	CE, RoHS

Computing

Operating system	Windows 10 32/64bits, Windows 11 64bit

Electrical

Image output latency	0.5 ~ 1.2 s
Power supply	24 V DC
Power consumption	11 W@24 V DC

Mechanical

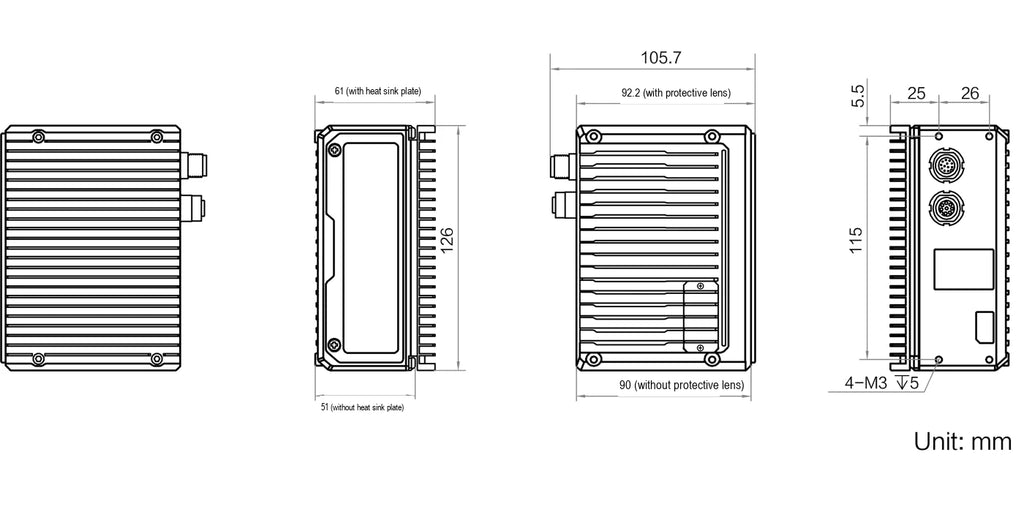

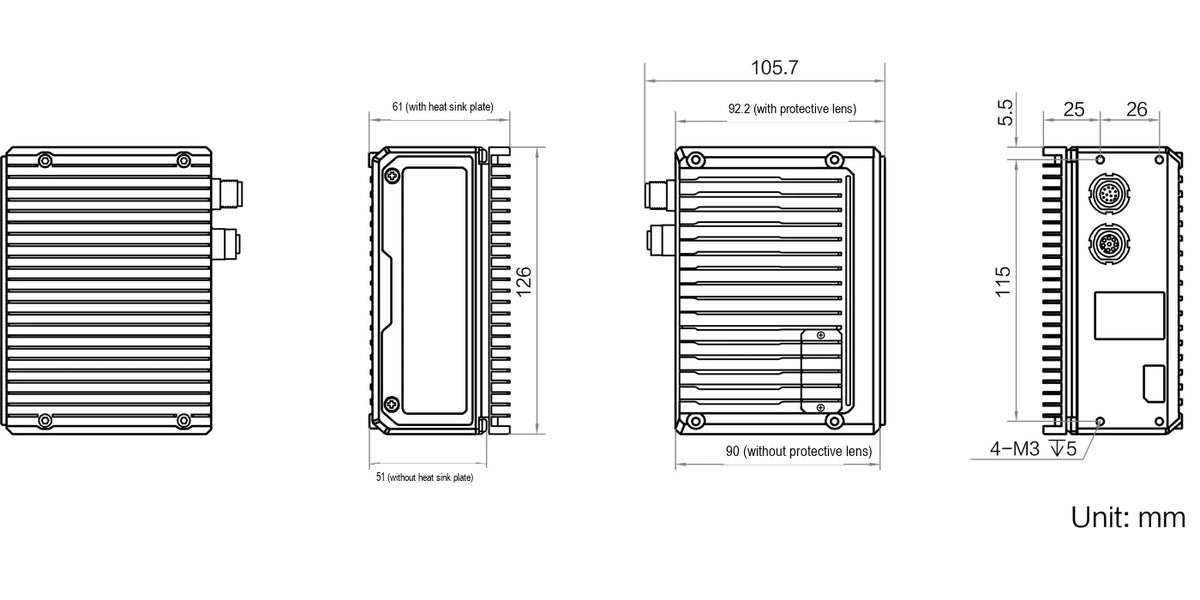

Dimension	126 mm × 92.2 mm × 61mm
Weight	0.81 kg
Shipping weight (estimated)	1.23 kg

Downloads

Features

Custom optical system for excellent image quality
High-performance structured-light projection for complete, detailed point clouds
Multi-core parallel processing architecture for high efficiency
Synchronized RGB and depth maps for fast, easy development
Lightweight design: small size, high stability, flexible installation
