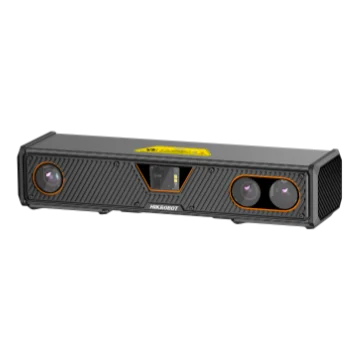

Hikrobot MV-DLS600U-07 Laser galvanometer stereo camera
Model MV-DLS600U-07Hikrobot
- InterfaceGigabit Ethernet(1000Mbit/s)
- TypeStereo / structured light
- Near field of view540 mm × 530 mm@700 mm
- Typical field of view890 mm × 760 mm@1000 mm
$20,599.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
3.32 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DLS600U-07 Laser galvanometer stereo camera. Custom optical system for excellent image quality Highly uniform laser for complete, detailed point clouds
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DLS600U-07 |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 700 mm |
| Measurement range (MR) | 700 mm |
| Repeatability (Z-axis)* | 0.06 mm@1000 mm1 |
| VDI/VDE accuracy | 0.12 mm@1000 mm2 |
| Acquisition time | 0.4 s ~ 0.9 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Laser safety class | Class 2 |
Optics
| Near field of view | 540 mm × 530 mm@700 mm |
|---|---|
| Typical field of view | 890 mm × 760 mm@1000 mm |
| Far field of view | 1240 mm × 1060 mm@1400 mm |
Sensor and imaging
| Resolution | 4000 × 3000 @ RGB image; 2448 × 2048 @ depth map |
|---|
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | HiViewer, RobotPilot3 |
Light
| Wavelength | 638 nm |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Certification | CE, RoHS |
Computing
| Operating system | Windows 7/10 32/64bits, Windows 11 64bits |
|---|
Electrical
| Image output latency | 1.0 s ~ 1.7 s |
|---|---|
| Power supply | 24 VDC |
| Power consumption | 15 W@24 V DC |
Mechanical

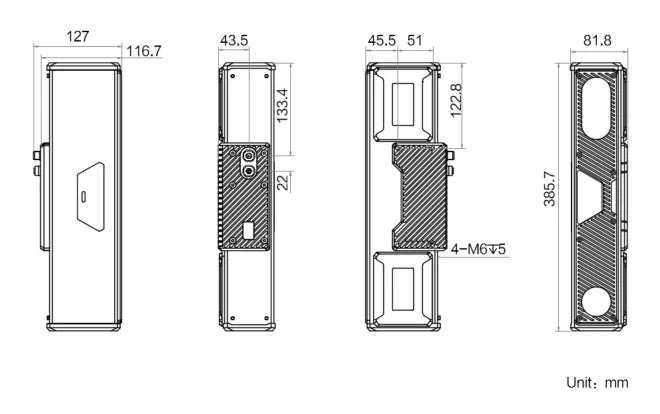

| Dimension | 385.7 mm × 81.8 mm × 127 mm |
|---|---|
| Weight | Approx. 2.3 kg |
| Shipping weight (estimated) | 3.32 kg |
