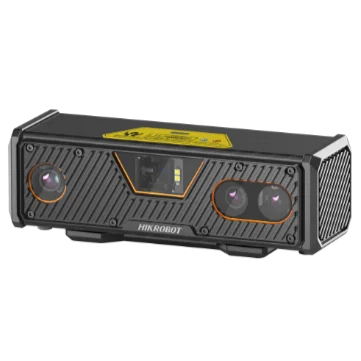

Hikrobot MV-DLS300P-04T Laser galvanometer stereo camera
Model MV-DLS300P-04THikrobot
- InterfaceGigabit Ethernet(1000 Mbit/s)
- TypeStereo / structured light
- Near field of view220 mm × 240 mm@400 mm
- Typical field of view360 mm × 360 mm@600 mm
$16,579.00
Quoted price: add to quote for lead time and volume pricing.
Ships in 2-3 weeks
1.92 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DLS300P-04T Laser galvanometer stereo camera. Custom optical system with exceptional ambient-light immunity Highly uniform laser for excellent image quality
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DLS300P-04T |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 400 mm |
| Measurement range (MR) | 400 mm |
| Repeatability (Z-axis)* | 0.08 mm@600 mm |
| VDI/VDE accuracy | 0.1 mm@600 mm |
| Acquisition time | 1.4 s ~ 2.6 s |
| Data type | Raw image (mono + color), Depth map, RGB-D image |
| Laser safety class | Class 2 |
Optics
| Near field of view | 220 mm × 240 mm@400 mm |
|---|---|
| Typical field of view | 360 mm × 360 mm@600 mm |
| Far field of view | 460 mm × 480 mm@800 mm |
Sensor and imaging
| Resolution | 3200 × 1944 @ RGB image; 1264 × 1152 @ depth map |
|---|
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | RobotPilot, HiViewer |
Light
| Wavelength | 450 nm |
|---|
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% to 85% RH (non-condensing) |
| Certification | RoHS |
Computing
| Operating system | Windows 7/10 32/64 bits, Windows 11 64 bits |
|---|
Electrical
| Image output latency | 1.7 s ~ 3 s |
|---|---|
| Power supply | 24 VDC |
| Power consumption | 14.4 W@24 V DC |
Mechanical

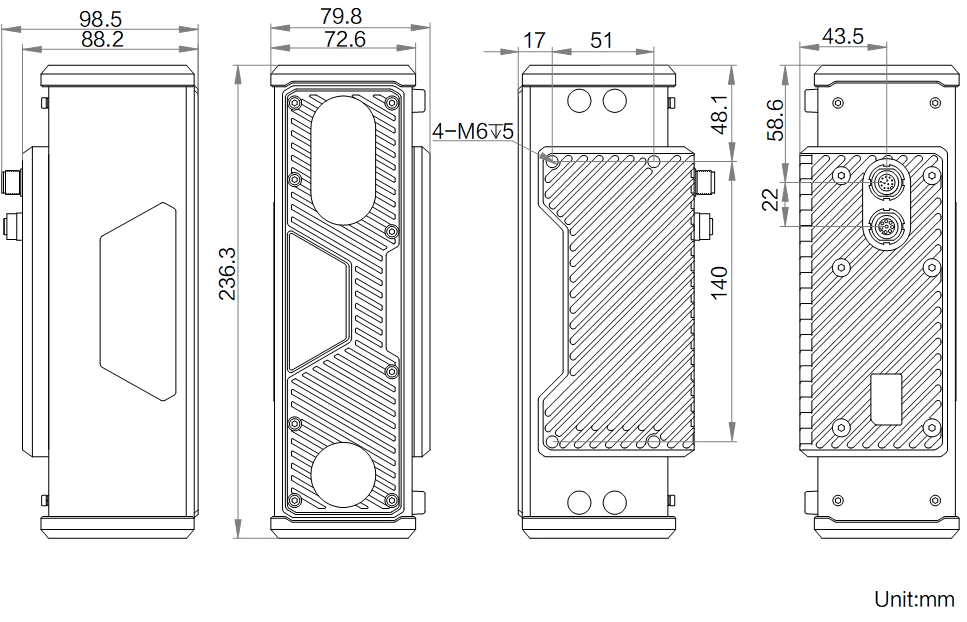

| Dimension | 236.3 mm × 79.8 mm × 98.5 mm |
|---|---|
| Weight | Approx. 1.3 kg |
| Shipping weight (estimated) | 1.92 kg |
