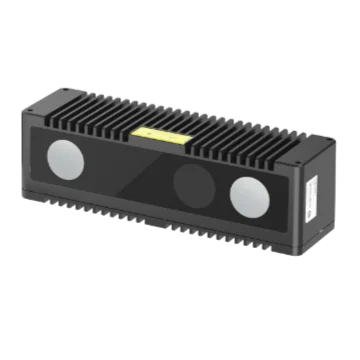

Hikrobot MV-DB12UNE Wide FOV / short range / GigE speckle smart 3D camera
Model MV-DB12UNEHikrobot
- InterfaceGigabit Ethernet(1000Mbit/s)
- TypeDepth / ToF camera
- Near field of view590 mm × 470 mm
- Far field of view2200 mm × 1500 mm
$3,229.00
Ships in 2-3 weeks
1.08 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DB12UNE Wide FOV / short range / GigE speckle smart 3D camera. High-performance sensor with energy-efficient laser module delivers stable millimeter-accuracy depth maps Train your own deep-learning models on the AI training platform and import them for use
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DB12UNE |
|---|---|
| Brand | Hikrobot |
| Clearance distance (CD) | 300 mm |
| Measurement range (MR) | 700 mm |
| Depth image detection accuracy | Z:4mm@500mm; 8mm@1000mm |
| Data type | Raw image (mono + color), Depth map, RGB-D image, Instance segmentation results |
| Laser safety class | Class 1 |
Optics
| Near field of view | 590 mm × 470 mm |
|---|---|
| Far field of view | 2200 mm × 1500 mm |
Sensor and imaging
| Scan frame rate | RGB-Depth synchronized output:; 20 fps@1536 × 1280; 30 fps@768 × 640 |
|---|
Interfaces and I/O
| Data interface | Gigabit Ethernet(1000Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector provides power supply and I/O, including opto-isolated input × 3 (Line 0/3/6), opto-isolated output × 3 (Line 1/4/7) |
| Client software | HiViewer |
Environment and compliance
| Ingress protection | IP65 |
|---|---|
| Temperature | Working temperature: 0 °C to 45 °C (32 °F to 113 °F); Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) |
| Humidity | 20% RH to 85% RH (no condensation) |
Computing
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 |
|---|
Electrical
| Power supply | 12 ~ 24 VDC |
|---|---|
| Power consumption | 6.76 W@24 VDC |
Mechanical

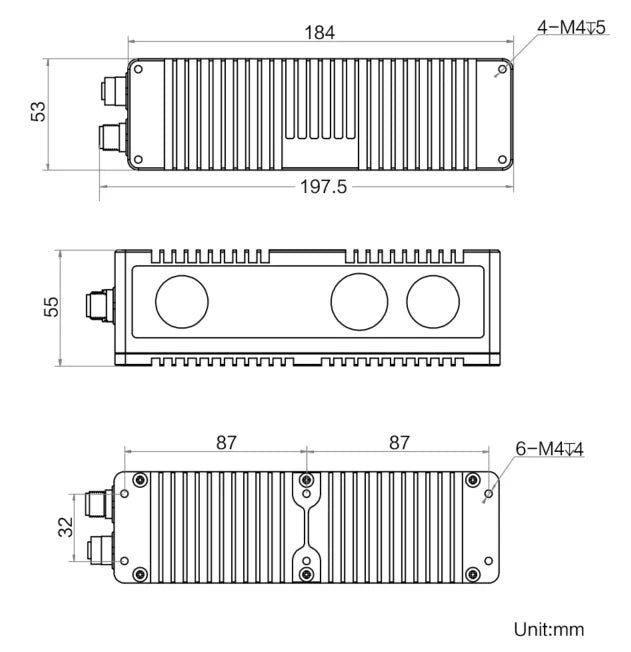

| Dimension | 184 mm × 55 mm × 53 mm |
|---|---|
| Weight | Approx. 700 g |
| Shipping weight (estimated) | 1.08 kg |
