Fixed code readers
Hikrobot MV-BX0106-06-HSB Ultra-compact smart code reader
Model MV-BX0106-06-HSBHikrobot
- Resolution1408 × 1024
- SensorCMOS, global shutter
- InterfaceFast Ethernet (100 Mbit/s)
- Speed60 fps
- Lens mountM10
- Mono / colourMono
$819.00
Ships in 2-3 weeks
0.32 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-BX0106-06-HSB Ultra-compact smart code reader. Ultra-compact: fits all kinds of machines and tight workstations Aviation connector: single-cable connection for simple routing
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-BX0106-06-HSB |
|---|---|
| Brand | Hikrobot |
| Indicator | Power indicator PWR, Network indicator LNK, Status indicator STS |
Optics
| Focal length | 6.72 mm |
|---|---|
| Working distance | 35 ~ 130 mm |
Sensor and imaging
| Symbologies | 1D code: Code 39, Code 93, Code 128, ITF14, ITF25, EAN8, UPCA, UPCE, EAN13, CodaBar, etc.; 2D code: QR Code, Data Matrix, etc. |
|---|---|
| Max. frame rate | 60 fps |
| Max. reading speed | 45 codes/sec |
| Sensor type | CMOS, global shutter |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/2.9” |
| Resolution | 1408 × 1024 |
| Exposure time | 16 μs ~ 1 sec |
| Gain | 0 ~ 15 dB |
| Mono/color | Mono |
| Aiming system | Green LED |
Interfaces and I/O
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP |
|---|---|
| Data interface | Fast Ethernet (100 Mbit/s) |
| Digital I/O | 17-pin M12 connector for power and I/O: 4 non-isolated bi-directional I/O (default: 2 inputs, 2 outputs), 1× RS-232, Device trigger via side button supported |
| Client software | IDMVS |
Light
| Ambient illumination | 0 ~ 50000 lux |
|---|---|
| Light source | Blue |
Environment and compliance
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F); Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|---|---|
| Ingress protection | IP65 |
| Humidity | 20% RH to 95% RH (no condensation) |
| Certification | CE, RoHS, KC |
Electrical
| Power supply | 12 ~ 24 VDC |
|---|---|
| Max. power consumption | 10.6 W@24 VDC |
Mechanical
| Lens mount | M10-Mount, Manual focus adjustable |
|---|---|

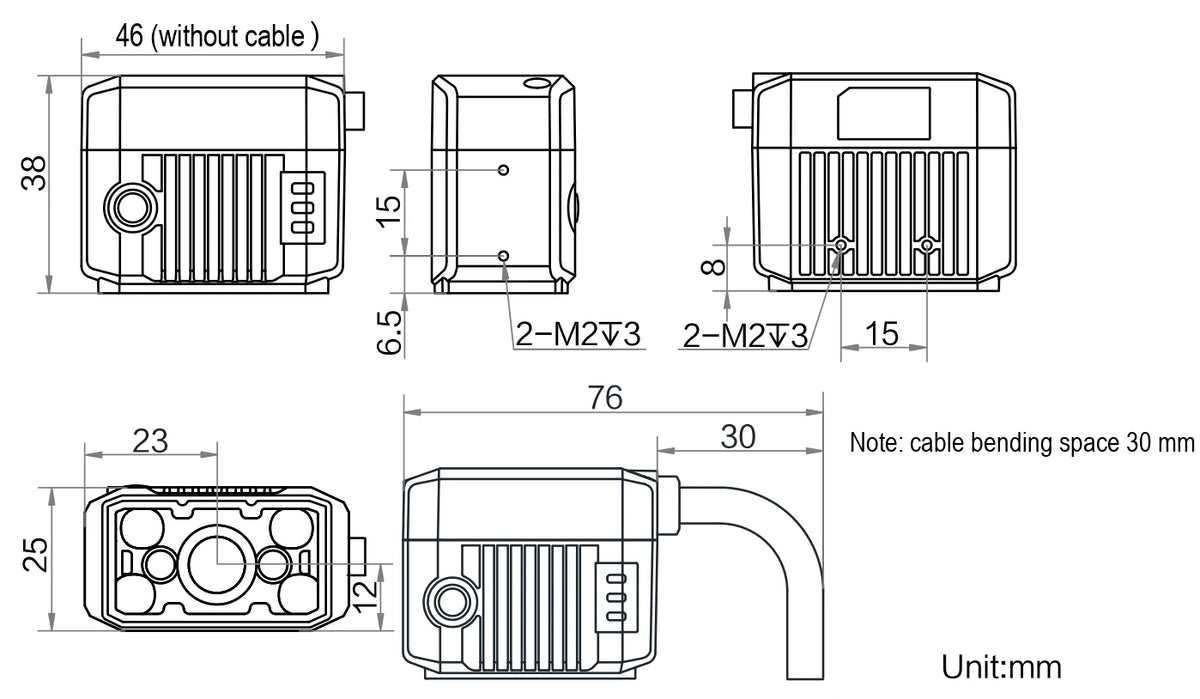

| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | Approx. 160 g (0.4 lb.) |
| Shipping weight (estimated) | 0.32 kg |
Photo shows a representative model of this series; see the specifications for this model.
