Panel PCs

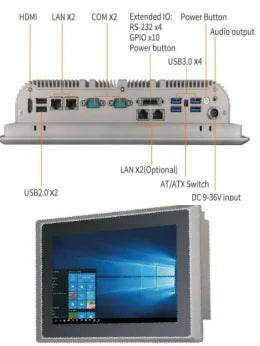

10.1" fanless touch panel PC, Intel Celeron / Core i5 / i7 (LS-YBT10X)
Model LS-YBT10X
- LAN ports2 LAN ports
- USB 3 ports5+ USB 3 ports
- ProcessorIntel Core i7
- Form factorPanel PC
$659.00
In stock - ships the same business day (4 available, order by 2 PM ET)
2.5 kg shipping weight
Volume pricing, Net 30 or a formal quote?
10.1" fanless touch panel PC, Intel Celeron / Core i5 / i7. Fanless aluminium industrial computer to run machine-vision software next to the line; memory: J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/ 16GB/32GB; storage: 1 x M.2 slot for SATA 2242/2260/2280 SSD; 1 x M.2 slot for NVME 2280 SSD; 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-YBT10X |
|---|---|
| Configuration | 8 GB RAM + 256 GB SSD fitted and tested, no operating system; 10.1" resistive touch. Other memory, storage, screen sizes and capacitive touch on request |
| HDMI and LAN | 1 x HDMI;2 x 2.5 GbE RJ45; |
| SIM | 1 x embedded SIM card slot onboard |
| In the box | 1xAll-in-one PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xPhoenix Terminal |
Interfaces and I/O
| Wireless | 1 x M.2 2230 slot for Wi-Fi & Bluetooth module |
|---|---|
| USB | J4125/J6412: 4 x USB2.0, 2 x USB3.0, 8th/10th/11th: 4 x USB3.0, 2 x USB2.0; |
| Serial ports | 2xDB-9 COM1/COM2, RS-232/422/484; 1 x Integrated 4-way 3-wire COM, 10-way GPIO, 1 x Remote Switch |
| Display | 10.1" ( 7", 8", 10.4", 12.1", 13.3", 15", 15.6", 17", 18.5", 19", 21.5", 23.6", 27" optional ) TFT-LCD, resoluion 1280x800(Optional 1024*600); max colour 16.2M; brighness 400 cd/m²; backligt LED life 30,000hrs; 5-wire resistive ( copacitive optional ) |
Environment and compliance
| Certification | CE, FCC, RoHS (manufacturer) |
|---|
Computing
| Processor | Intel Celeron J4125 to Core i7-10610U (choose) |
|---|---|
| Processor options | Intel Celeron J4125 2.0GHz Quad Cores Four Threads Max 2.7GHz(Turbo boost Technology) TDP 10W 4MB Cache Intel UHD Graphics 600; Intel Celeron J6412 2.0GHz Quad Cores Four Threads Max 2.6GHz(Turbo boost Technology) TDP 10W 1.5MB Cache Intel UHD Graphics; Intel Core i5-8260U 4 Cores 8 Threads 1.6GHz up to 3.9GHz(Turbo boost Technology) 6MB cache TDP 15W Intel UHD Graphics 620; Intel Core i5-8365U 4 Cores 8 Threads 1.6GHz up to 4.1GHz(Turbo boost Technology) 6MB cache TDP 15W Intel UHD Graphics; Intel Core i7-8565U 4 Cores 8 Threads 1.8GHz up to 4.6GHz(Turbo boost Technology) 8MB cache TDP 15W Intel UHD Graphics; Intel Core i7-8569U 4 Cores 8 Threads 2.8GHz up to 4.7GHz(Turbo boost Technology) 8MB cache TDP 28W Intel Iris Plus Graphics 655; Intel Core i5-10210U 6M Cache, 1.6GHz up to 4.20GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel UHD Graphics; Intel Core i5-10310U 6M Cache, 1.7GHz up to 4.4GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel UHD Graphics; Intel Core i7-10510U 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel UHD Graphics; Intel Core i7-10610U 8M Cache, 1.8GHz up to 4.9GHz (Turbo boost Technology) 4 Cores 8 Threads TDP 15W Intel UHD Graphics |
| Memory | J4125/J6412: 1 x SO-DIMM DDR4 Slot, Support 4GB/8GB/ 16GB/32GB |
| Storage | 1 x M.2 slot for SATA 2242/2260/2280 SSD; 1 x M.2 slot for NVME 2280 SSD; 1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s |
Mechanical
| Dimensions | 289.5 x 192.4 x 68 mm |
|---|---|
| Shipping weight | 2.50 kg |
